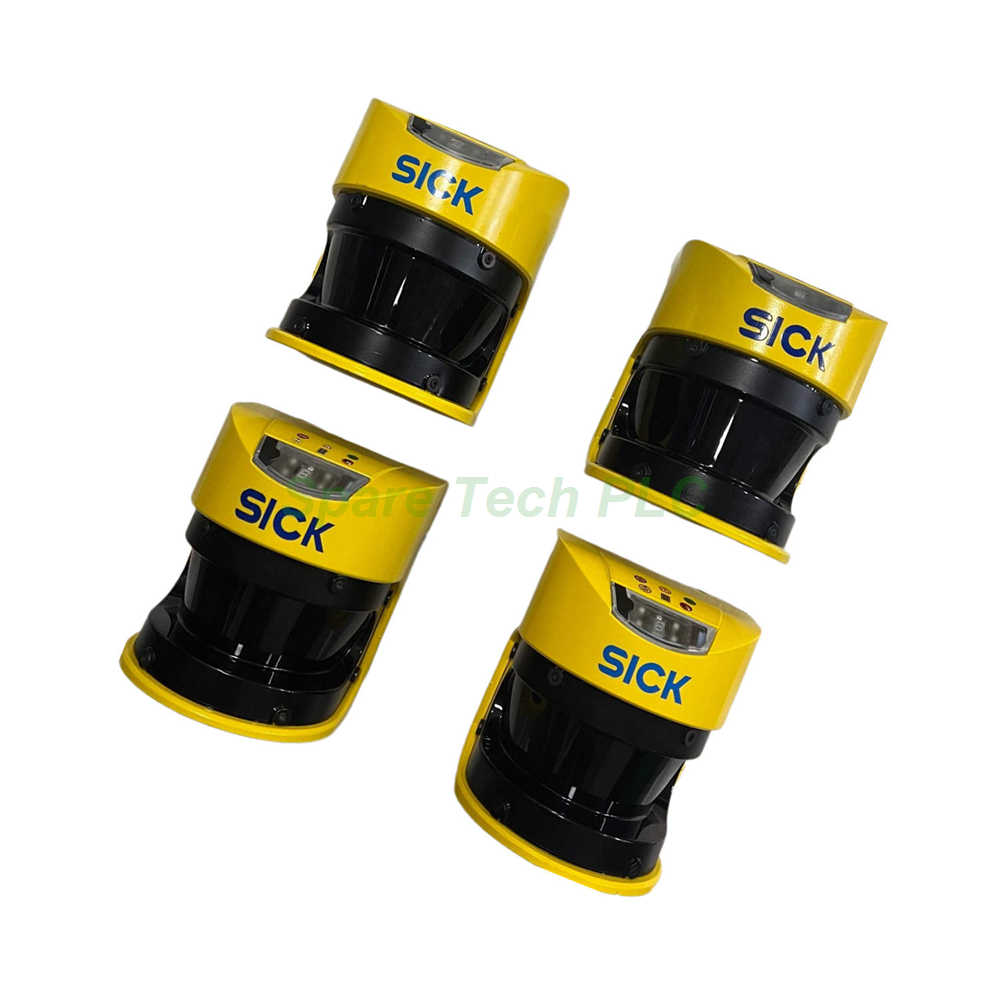

The S30A-7111DP belongs to the SICK S3000 series of safety laser scanners. It uses 2D LiDAR time-of-flight technology for precise area monitoring. This model suits industrial safety applications that need PROFINET connectivity. Additionally, it delivers a protective field range of 7.0 m and a radial warning field of 49 m.
The S30A-7111DP scanner operates with a pulsed laser diode at 905 nm. Its laser is Class 1 eye-safe under IEC 60825-1:2014. Specifically, the average optical power stays below 1 mW. The scanning angle reaches 190° with 0.25° or 0.5° angular resolution. Furthermore, the response time is ≤ 60 ms and can be configured from 60 ms to 120 ms.
Object resolution is configurable at 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. The systematic measurement error is typically ± 35 mm. For safety performance, the S30A-7111DP meets Type 3 per IEC 61496-1 and -3. Moreover, it achieves SIL 2 per IEC 61508, SILCL 2 per EN 62061, and PL d / Category 3 per EN ISO 13849-1.
This safety scanner uses PROFINET IO with PROFIsafe protocol. Two RJ-45 Push-Pull copper ports provide the network connection. The supply voltage is DC 24 V, with a range of 16.8 V to 28.8 V. Besides, the unit requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads. The electrical connection uses a system plug with an integrated 2-port RJ-45 PROFINET switch.
The S30A-7111DP operates between -10 °C and +50 °C. Meanwhile, storage temperature ranges from -20 °C to +70 °C. The enclosure carries an IP65 rating under EN 60529. Its dimensions measure 155 mm x 185 mm x 160 mm. In addition, the housing uses aluminum die-cast with a polycarbonate optical hood. The device weighs approximately 3.3 kg.
The S30A-7111DP supports 8 field sets and 16 monitoring cases. It enables dynamic monitoring case switching through the fieldbus. Furthermore, remote diagnostic readout is available via PROFINET. This device also qualifies as a Conformance Class B PROFINET IO device. Therefore, it integrates smoothly into modern automation networks.
First, mount the scanner on a stable bracket at the correct height. Next, connect the system plug to the PROFINET network using the two RJ-45 ports. Then, configure the protective and warning fields with SICK safety software. After that, verify the response time and object resolution settings. Finally, test all monitoring cases before normal operation.
1x SICK S30A-7111DP Safety Laser Scanner
1x System Plug with Integrated RJ-45 PROFINET Switch
1x Mounting Bracket Set
1x Quick Start Guide
We ship all orders through Fedex, UPS, and DHL. Each unit is packed with protective foam for safe transport.
Q1: What is the protective field range of the S30A-7111DP?
A: The protective field range is 7.0 m, and the radial warning field reaches 49 m.
Q2: Which safety standards does this scanner meet?
A: It meets Type 3, SIL 2, SILCL 2, and PL d / Category 3 requirements.
Q3: What communication protocol does the S30A-7111DP use?
A: It uses PROFINET IO with PROFIsafe protocol and two RJ-45 Push-Pull ports.
Q4: What is the response time of this SICK safety scanner?
A: The response time is ≤ 60 ms and is configurable from 60 ms to 120 ms.
Q5: What is the enclosure protection rating?
A: The enclosure carries an IP65 rating under EN 60529 for industrial environments.
| Brand Name | |
| Model No. | S30A-7111DP |
| Product Type | Safety Laser Scanner |
