Product Introduction

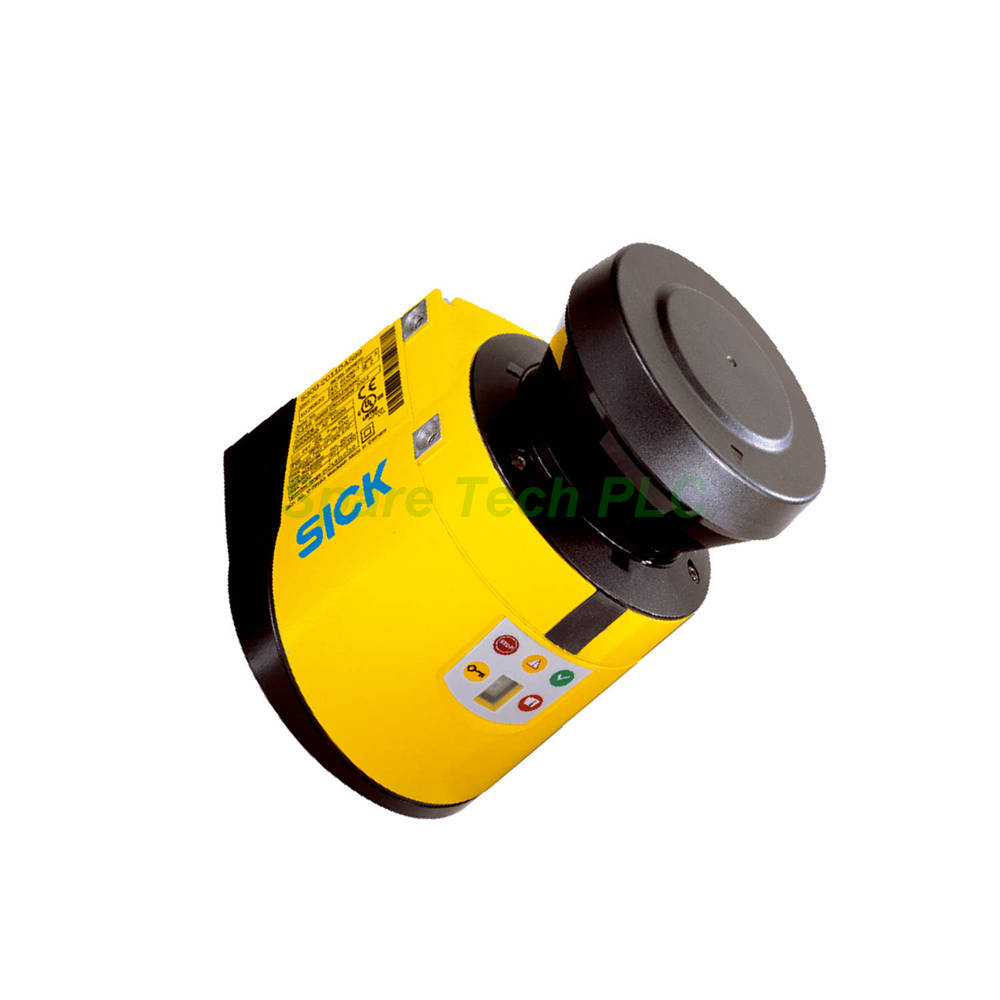

The S30B-3011DA belongs to the SICK S300 Professional series. This safety laser scanner delivers reliable 2D LiDAR protection for industrial machinery. It uses pulsed laser time-of-flight measurement at 905 nm. The device is eye-safe under IEC 60825-1 Class 1. Its protective field reaches 3 m, while the warning field extends to 8 m. Therefore, it suits compact safety monitoring with flexible field configuration.
This unit is a professional-class scanner. It supports up to 8 field sets and 24 fields for adaptive safeguarding. Unlike basic models, it includes incremental encoder inputs for velocity-dependent monitoring. The 270° scanning angle provides wide coverage with fewer devices. As a result, it is ideal for automated guided vehicles, robot cells, and small assembly stations.
The S30B-3011DA provides a protective field range of 3 m and a warning field range of 8 m at 15% reflectivity. Its light source is a pulsed laser diode at 905 nm. The average optical power stays below 1 mW, which keeps it Class 1 eye-safe. Response time is 80 ms, depending on basic response time and multiple sampling settings. Furthermore, the scanning angle covers 270° with 0.5° angular resolution.
Object resolution is configurable: 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. This flexibility helps match different detection needs. Safety integrity meets Type 3 per IEC 61496-1 and -3. It also achieves SIL 2 per IEC 61508, Category 3 per EN ISO 13849-1, and PL d rating. The PFHd value is 8.0 x 10⁻⁸ per hour. Systematic measurement error is typically ± 35 mm. These ratings confirm the scanner's high reliability in safety-critical tasks.
Communication relies on direct safety outputs. Specifically, the scanner offers one OSSD pair with PNP type at 250 mA. It also provides three application diagnostic outputs at 100 mA each. Local reset and EDM inputs come standard. Moreover, a safe EFI bus enables SICK device communication for centralized control. The supply voltage is DC 24 V, with an operating range of 16.8 V to 30 V. It requires SELV or PELV safety extra-low voltage.
Power consumption is ≤ 0.33 A at 24 V DC without output load. The electrical connection uses a system plug, which is ordered separately. Options include configurations with or without connecting cable. Consequently, users can match the connector style to their existing wiring. This design keeps spare parts flexible and reduces downtime during replacement.
The S30B-3011DA operates between -10 °C and +50 °C. Storage temperature ranges from -25 °C to +70 °C. Its enclosure protection rating is IP65 per EN 60529. Therefore, it resists dust and water jets. Physical dimensions are 102 mm x 152 mm x 106 mm (W x H x D). The housing uses aluminum die-cast with a polycarbonate optical hood. Device weight is approximately 1.2 kg. These features allow mounting in compact industrial environments.
The scanner supports up to 8 field sets and 24 fields for flexible safeguarding. It also handles up to 32 monitoring cases when used with EFI. Triple-field mode provides one protective field and two warning fields. Meanwhile, velocity-dependent protective field switching works through incremental encoder inputs. This enables adaptive safety zones based on vehicle speed. For instance, an AGV can switch to smaller fields when moving slowly and larger fields at higher speeds.
First, select a mounting position with a clear view of the protected area. Next, secure the scanner using the appropriate mounting bracket. Then, order and connect the system plug to the power and signal cables. After that, configure the protective and warning fields via the SICK CDS software. Finally, perform a safety check and verify response time settings. Proper alignment prevents blind spots and ensures full coverage.
1x SICK S30B-3011DA Safety Laser Scanner
1x Mounting Kit
1x Quick Start Guide
We ship worldwide via Fedex, UPS, and DHL. Orders process within 1–2 business days. Tracking numbers arrive by email after dispatch.
Q1: What is the protective field range of the S30B-3011DA?
A: The protective field range is 3 m. The warning field reaches 8 m at 15% reflectivity.
Q2: How many field sets does this scanner support?
A: It supports up to 8 field sets with 24 fields for flexible safeguarding.
Q3: What safety ratings does the S30B-3011DA meet?
A: It meets Type 3, SIL 2, Category 3, and PL d standards.
Q4: Is the system plug included with the scanner?
A: No. The system plug is ordered separately with or without a connecting cable.
Q5: Can the S30B-3011DA work outdoors?
A: It has IP65 protection. However, avoid direct sunlight and heavy rain for best performance.
| Brand Name | |
| Model No. | S30A-3011DA |
| Product Type | Safety Laser Scanner |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
