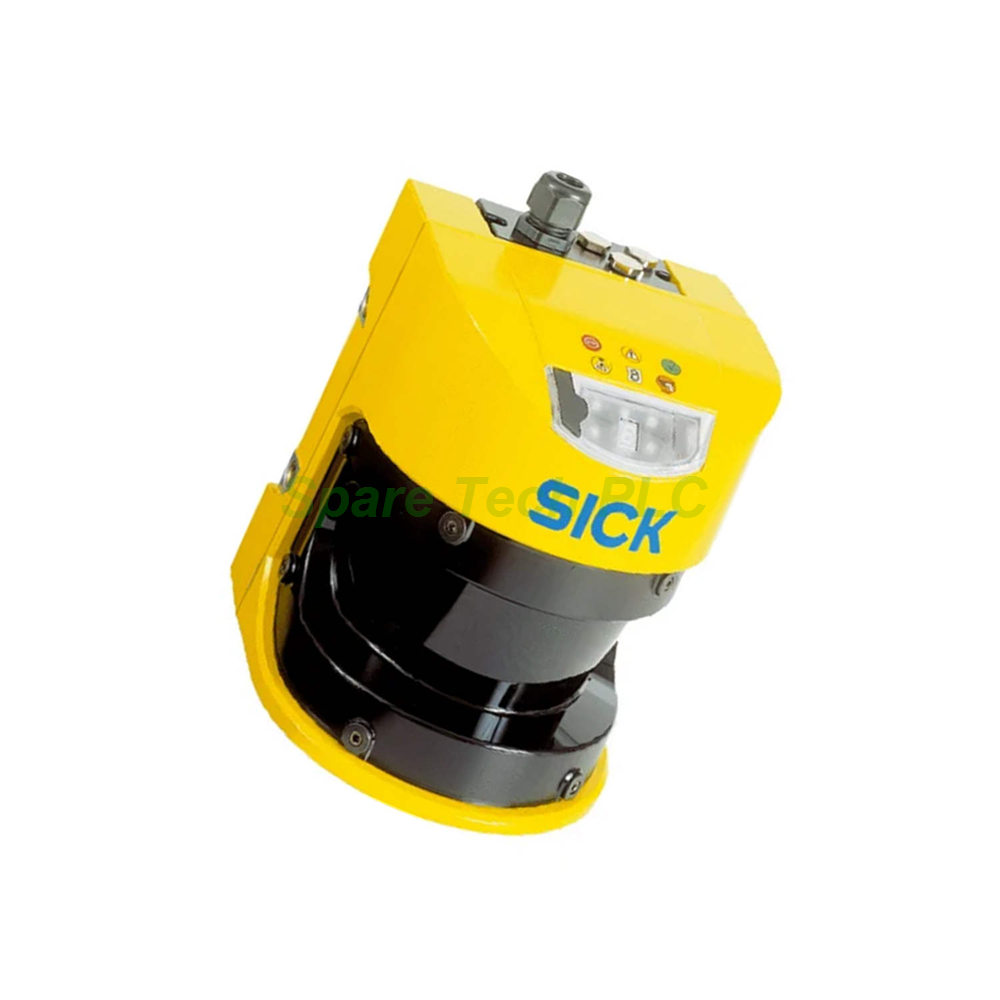

The S30A-6011BA belongs to the SICK S3000 Standard series of safety laser scanners. It uses 2D LiDAR time-of-flight technology for reliable area monitoring. This model suits standalone hazardous area safeguarding tasks. Additionally, it provides a protective field range of 5.5 m and a radial warning field of 49 m.
The S30A-6011BA scanner operates with a pulsed laser diode at 905 nm. Its laser is Class 1 eye-safe under IEC 60825-1:2014. Specifically, the average optical power stays below 1 mW. The scanning angle reaches 190° with 0.25° or 0.5° angular resolution. Furthermore, the response time is ≤ 60 ms and can be configured from 60 ms to 120 ms.
Object resolution is configurable at 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. The systematic measurement error is typically ± 35 mm. For safety performance, the S30A-6011BA meets Type 3 per IEC 61496-1 and -3. Moreover, it achieves SIL 2 per IEC 61508, SILCL 2 per EN 62061, and PL d / Category 3 per EN ISO 13849-1.
This safety scanner provides one OSSD pair with PNP output at 250 mA. It also includes one warning field output with PNP at 100 mA. Besides, local reset and EDM inputs are available for flexible control. The supply voltage is DC 24 V, with a range of 16.8 V to 28.8 V. In addition, the unit requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads. The electrical connection uses a system plug, which is ordered separately.
The S30A-6011BA operates between -10 °C and +50 °C. Meanwhile, storage temperature ranges from -20 °C to +70 °C. The enclosure carries an IP65 rating under EN 60529. Its dimensions measure 155 mm x 185 mm x 160 mm. In addition, the housing uses aluminum die-cast with a polycarbonate optical hood. The device weighs approximately 3.3 kg.
The S30A-6011BA supports 1 field set with 1 protective field and 1 warning field. It also provides 1 monitoring case for straightforward safety logic. Furthermore, integrated external device monitoring (EDM) simplifies machine integration. Manual or automatic restart interlock is selectable through configuration software. Therefore, this scanner works well for standalone safeguarding applications.
First, mount the scanner on a stable bracket at the correct height. Next, connect the system plug with cable gland or M12 connectors. Then, wire the OSSD pair and warning field output to the safety controller. After that, configure the protective field with SICK safety software. Finally, test the restart interlock and EDM function before normal operation.
1x SICK S30A-6011BA Safety Laser Scanner
1x Mounting Bracket Set
1x Quick Start Guide
We ship all orders through Fedex, UPS, and DHL. Each unit is packed with protective foam for safe transport.
Q1: What is the protective field range of the S30A-6011BA?
A: The protective field range is 5.5 m, and the radial warning field reaches 49 m.
Q2: Which safety standards does this scanner meet?
A: It meets Type 3, SIL 2, SILCL 2, and PL d / Category 3 requirements.
Q3: What outputs does the S30A-6011BA provide?
A: It provides one OSSD pair (PNP, 250 mA) and one warning field output (PNP, 100 mA).
Q4: What is the response time of this SICK safety scanner?
A: The response time is ≤ 60 ms and is configurable from 60 ms to 120 ms.
Q5: Is the system plug included with the scanner?
A: No, the system plug is ordered separately, such as SX0A-A0000B with cable gland or M12 connectors.
| Brand Name | |
| Model No. | S30A-6011BA |
| Product Type | Safety Laser Scanner |
