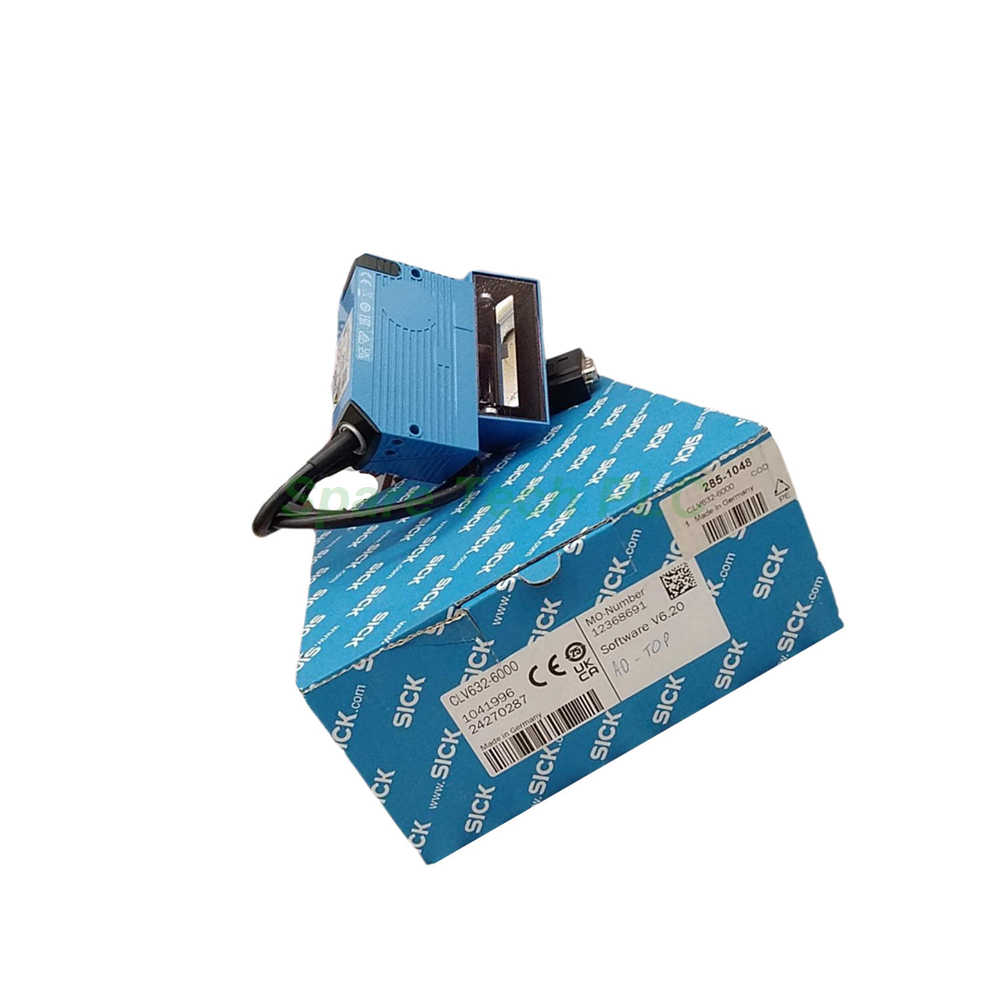

The CLV632-6000 belongs to the Sick CLV63X series of barcode scanners. This short-range line scanner uses a visible red laser at 655nm. Furthermore, the oscillating mirror enables flexible reading field adjustment. The device supports PROFINET, EtherCAT, serial, CAN, CANopen, and PROFIBUS DP interfaces. Therefore, it fits many industrial automation tasks.
The Sick CLV632-6000 scanner delivers reliable 1D code reading. Its scanning frequency ranges from 400Hz to 1,200Hz. Additionally, code resolution sits between 0.2mm and 0.5mm. The aperture angle reaches ≤50°. Meanwhile, the oscillation frequency spans 0.5Hz to 6.25Hz. The deflection angle covers –20° to 20°.
This barcode scanner reads all current code types. For instance, it handles Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, and Interleaved 2 of 5. Moreover, it supports Pharmacode, GS1 DataBar, Telepen, and MSI/Plessey. The print ratio ranges from 2:1 to 3:1. Specifically, the standard decoder processes 1 to 20 codes per scan. The SMART decoder handles 1 to 6 codes per scan.
Key parameters:
Reading distance: 45 mm ... 245 mm
Scanning frequency: 400 Hz ... 1,200 Hz
Code resolution: 0.2 mm ... 0.5 mm
Supply voltage: 18 V DC ... 30 V DC
Power consumption: 6 W
The housing uses aluminum die cast material. Its color is light blue (RAL 5012). Besides, the window material is glass. The enclosure rating reaches IP65 according to EN 60529. Protection class is III per EN 61140. The weight is 420g with connecting cable. Dimensions measure 95mm x 107mm x 41mm. The MTBF is 100,000h. Meanwhile, the MTTF for the laser diode is 40,000h.
Ambient operating temperature ranges from 0°C to +40°C. Storage temperature spans –20°C to +70°C. Permissible relative humidity reaches 90%, non-condensing. The ambient light immunity is 2,000lx on barcode. Bar code print contrast (PCS) is ≥60%. Vibration resistance follows EN 60068-2-6 (1995). Shock resistance follows EN 60068-2-27 (1993). EMC complies with EN 61000-6-3 and EN 61000-6-2:2005.
The CLV632-6000 offers multiple fieldbus options. PROFINET works as Single Port or Dual Port. EtherCAT integrates optionally over external fieldbus module CDF600. Serial interfaces include RS-232, RS-422, and RS-485. Data transmission rate spans 2,400 Baud to 115.2 kBaud. The AUX rate is 57.6 kBaud. CAN and CANopen run from 20 kbit/s to 1 Mbit/s. PROFIBUS DP integrates over CDF600-2.
Four digital inputs exist: "Sensor 1", "Sensor 2", and two via CMC600. Four digital outputs exist: "Result 1", "Result 2", and two via CMC600. Reading pulse triggers come from digital inputs, serial interface, auto pulse, or CAN. Optical indicators include 6 LEDs plus a 10-LED bar graph. An acoustic beeper is available and can be switched off. Two buttons handle choose and start/stop functions. Configuration uses SOPAS ET software. A MicroSD memory card is optional.
First, mount the scanner using the die-cast housing points. Keep the reading distance between 45mm and 245mm. Next, connect the 15-pin D-Sub HD male connector. The cable length is 0.9m. Then, supply 18–30VDC power. Check the LED indicators for Ready and Result status.
Furthermore, align the oscillating mirror for your reading field. You can set fixed, oscillating, or one-shot mode. Adjust the deflection angle within –20° to 20°. Besides, configure parameters through SOPAS ET. For PROFINET, use the CDF600-2 module. Finally, test code reading with your actual labels. Verify the print contrast is at least 60%.
1x Sick CLV632-6000 Barcode Scanner
1x 15-pin D-Sub HD male connector cable (0.9m)
1x Quick start guide
1x Mounting accessory kit
Q1: What is the reading distance of the CLV632-6000?
A: The reading distance ranges from 45mm to 245mm. This suits short-range applications.
Q2: Which fieldbus does this scanner support?
A: It supports PROFINET natively. EtherCAT and PROFIBUS DP work over external modules.
Q3: What code types can the Sick CLV632-6000 read?
A: It reads Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, and more.
Q4: How do I configure the scanner?
A: Use SOPAS ET software. You can also use the two onboard buttons.
Q5: What is the enclosure rating?
A: The enclosure rating is IP65. It resists dust and water spray.
