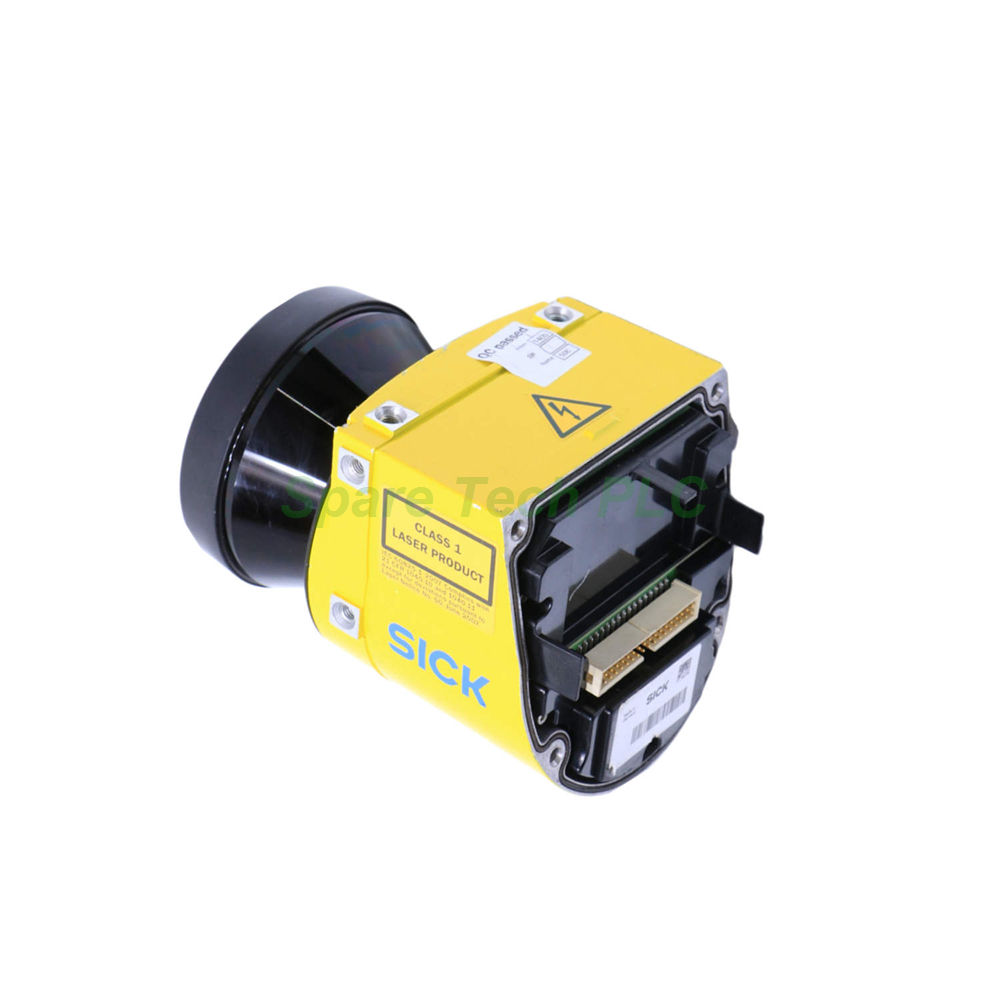

The S30B-3011BA belongs to the SICK S300 Standard series. It provides dependable 2D LiDAR protection for indoor industrial machinery. Specifically, this model offers a 3 m protective field range and an 8 m warning field range. The distance measuring range reaches 30 m. Furthermore, the scanning angle covers 270°, which suits wide machine openings. As a result, the S30B-3011BA fits press brakes, robot cells, and assembly stations.
The S30B-3011BA delivers solid optical performance for safety monitoring. Its protective field range reaches 3 m, while the warning field extends to 8 m at 15% reflectivity. The distance measuring range is 30 m. In addition, the scanning angle covers 270° with an angular resolution of 0.5°.
Resolution remains configurable among 30 mm, 40 mm, 50 mm, 70 mm, and 150 mm. The response time is 80 ms, and the protective field supplement is 100 mm. Multiple samplings range from 2 to 16 and stay configurable. The delay of automatic reset ranges from 2 s to 60 s. The light source is a pulsed laser diode with a wavelength of 905 nm. Moreover, the laser remains Class 1 according to IEC 60825-1 and 21 CFR 1040.
Safety integrity is a core strength of this scanner. Specifically, it meets Type 3 per IEC 61496. Moreover, it achieves SIL 2 per IEC 61508 and Category 3 per EN ISO 13849. The performance level is PL d, and the PFHD is 8.0 x 10⁻⁸. The mission time reaches 20 years per EN ISO 13849. In the event of a fault, at least one OSSD switches to the OFF state.
The S30B-3011BA uses a system plug with or without a connecting cable. It provides 5 universal I/Os for flexible signal handling. Inputs include external device monitoring (EDM), reset/restart, and standby. Furthermore, the device offers 1 OSSD pair and 3 application diagnostic outputs.
Configuration works through the CDS software from SICK. The configuration and diagnostics interface uses RS-232 at 38.4 kBaud. A data interface with RS-422 runs at up to 500 kBaud. Safe SICK device communication via EFI also reaches 500 kBaud, with a cable length up to 50 m. Supply voltage is 24 V DC, with a range of 16.8 V DC to 30 V DC. Power consumption is 0.33 A to 1.7 A. OSSD output current reaches 2 x 250 mA, while diagnostic outputs provide 3 x 100 mA.
The housing uses aluminum die cast with a polycarbonate optics cover. The optics cover carries a scratch-resistant coating on the outside. The enclosure protection rating is IP65 per EN 60529. As a result, the device resists dust and water jets in factory environments. The housing color is RAL 1021 yellow.
Operating temperature ranges from -10 °C to +50 °C. Storage temperature ranges from -25 °C to +50 °C. Physical dimensions are 102 mm x 152 mm x 106 mm. The device weighs approximately 1.2 kg. Vibration and shock resistance follow IEC 60068 and IEC 61496 standards. Continuous shock reaches 50 m/s² at 11 ms and 100 m/s² at 16 ms.
The S30B-3011BA supports triple field sets for flexible zone configuration. It includes one field set with three fields and one monitoring case. Moreover, the configurable multiple samplings improve detection reliability in dusty areas. The automatic reset delay prevents unintended restarts. Besides, the EFI communication simplifies integration with other SICK safety devices. These features reduce commissioning time and improve machine availability.
First, select a mounting position with a clear view of the hazardous area. The scanner must align with the protected zone geometry. Next, secure the device using the appropriate mounting bracket. Keep the optics cover free from obstructions and reflective surfaces.
Then, connect the system plug to the scanner and the supply voltage. After that, wire the OSSD outputs to the machine safety circuit. Finally, configure the fields and monitoring cases in CDS software. Verify the safety distance according to ISO 13855. Regular cleaning of the optics cover maintains reliable detection.
1x SICK S30B-3011BA Safety Laser Scanner
1x System Plug
1x Mounting Bracket Set
1x Printed Quick Start Guide
Q1: What is the protective field range of the S30B-3011BA?
A: The protective field range is 3 m. The warning field reaches 8 m at 15% reflectivity.
Q2: Which safety standards does this scanner meet?
A: It meets Type 3, SIL 2, Category 3, and PL d per EN ISO 13849.
Q3: How does the S30B-3011BA connect to a control system?
A: It uses OSSD outputs, EFI communication, and RS-232 or RS-422 interfaces.
Q4: What is the response time of this safety laser scanner?
A: The response time is 80 ms with a protective field supplement of 100 mm.
Q5: What shipping methods are available?
A: We ship via Fedex, UPS, and DHL worldwide.
| Brand Name | |
| Model No. | S30B-3011BA |
| Product Type | Safety Laser Scanner |
