SICK S30A-7111CP Safety Laser Scanner

SICK S30A-7111CP Safety Laser Scanner

Product Introduction

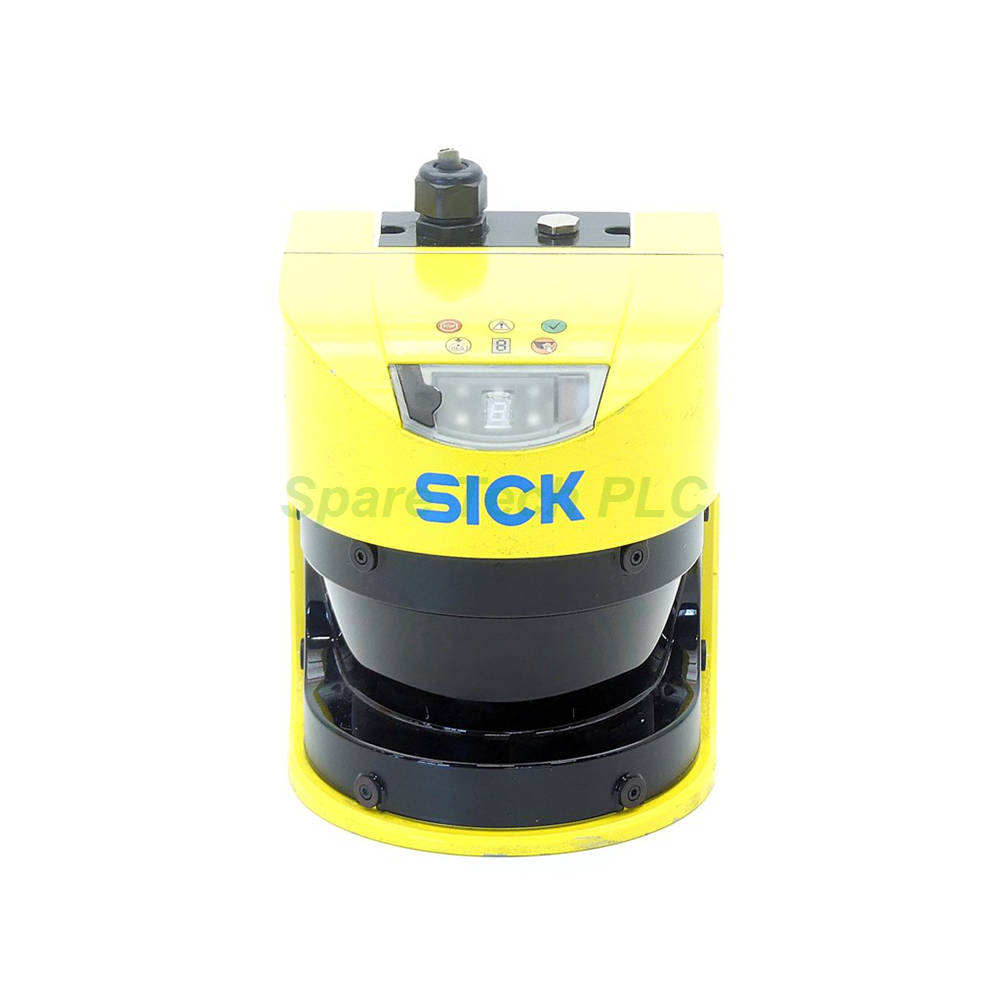

The S30A-7111CP belongs to the SICK S3000 series of safety laser scanners. It delivers reliable 2D LiDAR protection for industrial machinery and automated systems. Specifically, this model combines a 7.0 m protective field with a 49 m radial warning field. The device uses a pulsed laser diode at 905 nm, which remains eye-safe under Class 1. Furthermore, the scanning angle reaches 190°, and the angular resolution stays configurable at 0.25° or 0.5°. As a result, the S30A-7111CP suits hazardous area monitoring, AGV safeguarding, and robot cell protection.

Technical Specifications

The S30A-7111CP offers strong optical performance for demanding safety tasks. Its protective field range reaches 7.0 m, while the warning field extends to 49 m. The light source is a pulsed laser diode with a wavelength of 905 nm. In addition, the laser remains Class 1 eye-safe according to IEC 60825-1:2014. The average optical power stays below 1 mW.

Response time is ≤ 60 ms, and users can configure multiple sampling rates from 60 ms to 120 ms. Meanwhile, the scanning angle covers 190°. Object resolution is selectable among 30 mm, 40 mm, 50 mm, 70 mm, and 150 mm. These options allow flexible adaptation to different safety distance calculations.

Safety integrity is a core strength of this scanner. Specifically, it meets Type 3 per IEC 61496-1 and -3. Moreover, it achieves SIL 2 per IEC 61508 and SILCL 2 per EN 62061. The performance level is PL d with Category 3 per EN ISO 13849-1. Systematic measurement error is typically ± 35 mm.

Interface and Electrical Data

The S30A-7111CP integrates directly into industrial networks. It provides PROFINET IO with PROFIsafe protocol through two RJ-45 Push-Pull copper ports. This design simplifies wiring and reduces installation effort. Additionally, the system plug includes an integrated 2-port PROFINET switch.

Supply voltage is DC 24 V, with an operating range of 16.8 V to 28.8 V. The device requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads. Therefore, the scanner fits standard industrial power architectures.

Mechanical and Environmental Parameters

The housing uses aluminum die-cast with a polycarbonate optical hood. This construction balances durability and optical clarity. The enclosure protection rating is IP65 per EN 60529. As a result, the device resists dust and water jets in factory environments.

Operating temperature ranges from -10 °C to +50 °C. Storage temperature ranges from -20 °C to +70 °C. Physical dimensions are 155 mm x 185 mm x 160 mm. The device weighs approximately 3.3 kg. These compact dimensions allow mounting in tight machine frames.

Key Functional Highlights

The S30A-7111CP supports direct network safety integration. It provides 4 field sets and 4 monitoring cases. Users can switch these cases remotely over PROFIsafe. Furthermore, engineering integration works seamlessly in Siemens TIA Portal. This feature reduces commissioning time and simplifies diagnostics.

Installation Guide

First, select a mounting position with a clear view of the hazardous area. The scanner must align with the protected zone geometry. Next, secure the device using the appropriate mounting bracket. Keep the optical hood free from obstructions and reflective surfaces.

Then, connect the system plug to the PROFINET network. Use the two RJ-45 Push-Pull ports for line or ring topology. After that, configure the field sets and monitoring cases in the engineering tool. Finally, verify the safety distance according to ISO 13855. Regular cleaning of the optical hood maintains reliable detection.

Packaging List

• 1x SICK S30A-7111CP Safety Laser Scanner

• 1x System Plug with Integrated PROFINET Switch

• 1x Mounting Bracket Set

• 1x Printed Quick Start Guide

FAQ

Q1: What is the protective field range of the S30A-7111CP?
A: The protective field range is 7.0 m. The radial warning field reaches 49 m.

Q2: Which safety standards does this scanner meet?
A: It meets Type 3, SIL 2, SILCL 2, and PL d Category 3.

Q3: How does the S30A-7111CP connect to a control system?
A: It uses PROFINET IO with PROFIsafe over two RJ-45 Push-Pull ports.

Q4: What is the response time of this safety laser scanner?
A: The response time is ≤ 60 ms and configurable up to 120 ms.

Q5: What shipping methods are available?
A: We ship via Fedex, UPS, and DHL worldwide.
