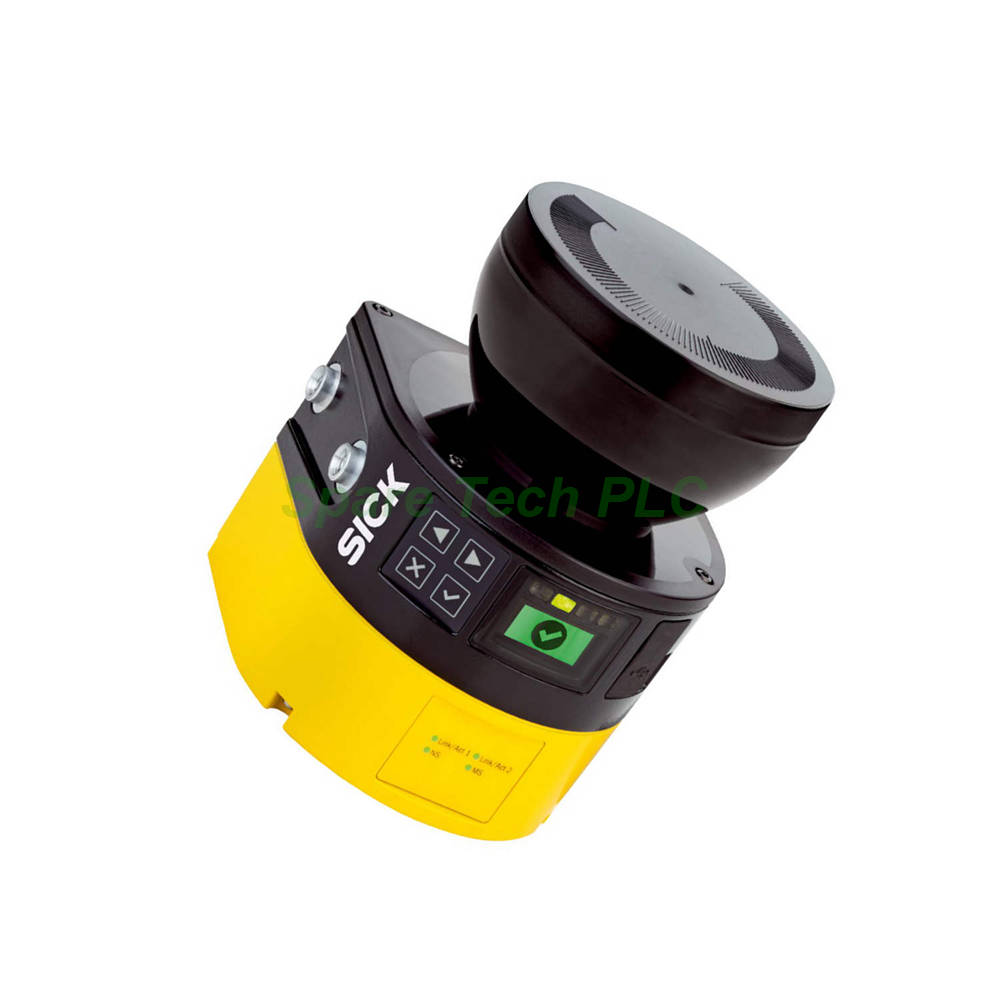

The MICS3-ABAZ90PZ1P01 belongs to the SICK microScan3 Core series. It provides reliable 2D LiDAR protection for indoor industrial applications. Specifically, this model offers a 9 m protective field range and a 64 m warning field range. The scanning angle reaches 275°, which covers a wide area around the machine. Furthermore, the device supports up to 8 fields and 8 monitoring cases. As a result, the MICS3-ABAZ90PZ1P01 fits robot cells, palletizers, and automated guided vehicles.
The MICS3-ABAZ90PZ1P01 delivers strong optical performance for safety monitoring. Its protective field range reaches 9 m, while the warning field extends to 64 m. The scanner monitors up to 4 fields simultaneously and stores 8 fields in total. In addition, the scanning angle covers 275° with an angular resolution of 0.1°.
Resolution remains configurable among 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 150 mm, and 200 mm. The response time is 115 ms, and the protective field supplement is 100 mm. The light source is a pulsed laser diode with a wavelength of 845 nm. Moreover, the laser remains Class 1 according to IEC 60825-1 and 21 CFR 1040.
Safety integrity is a core strength of this scanner. Specifically, it meets Type 3 per IEC 61496. Moreover, it achieves SIL 2 per IEC 61508 and Category 3 per EN ISO 13849. The performance level is PL d, and the PFHD is 8.0 x 10⁻⁸. The mission time reaches 20 years per EN ISO 13849. In the event of a fault, the safety outputs via the network switch to logic 0.
The MICS3-ABAZ90PZ1P01 integrates directly into PROFINET networks. It provides 4 safety outputs via network and uses the PROFIsafe protocol. Configuration works through the Safety Designer software from SICK. Additionally, the device supports PROFINET specification V2.3 and PROFIsafe profile V2.6.1 and V2.4. The GSDML follows specification V2.33.
Cycle time options include 1 ms, 2 ms, 4 ms, 8 ms, and 16 ms. The scanner supports Conformance Class C, SNMP, MIB-2, and LLDP per IEEE 802.1AB. Furthermore, it offers MRP client support and a 2-port real-time switch. Supply voltage is 24 V DC, with a range of 16.8 V DC to 30 V DC. Power consumption is typically 7.2 W.
The housing uses aluminum with a polycarbonate optics cover. The optics cover carries a scratch-resistant coating on the outside. The enclosure protection rating is IP65 per IEC 60529. As a result, the device resists dust and water jets in factory environments. The housing color is RAL 1021 yellow and RAL 9005 black.
Operating temperature ranges from -10 °C to +50 °C. Storage temperature ranges from -25 °C to +70 °C. Physical dimensions are 112 mm x 150.7 mm x 111.1 mm without the system plug. The device weighs approximately 1.45 kg. Ambient light immunity reaches 40 klx per IEC 61496-3. Vibration and shock resistance follow IEC 60068 and IEC 61496 standards.
The MICS3-ABAZ90PZ1P01 supports up to 8 monitoring cases for flexible zone switching. It includes a graphic color display and LEDs for quick status checks. Moreover, the device offers PROFIenergy and F_iPar_CRC functions. Acyclic read and write services work through TCI. Besides, SNTP client and server support simplify time synchronization. These features reduce commissioning time and improve diagnostics.
First, select a mounting position with a clear view of the hazardous area. The scanner must align with the protected zone geometry. Next, secure the device using the appropriate mounting bracket. Keep the optics cover free from obstructions and reflective surfaces.
Then, connect the voltage supply to the M12 4-pin A-coded male connector. After that, link the PROFINET network to the two M12 4-pin D-coded female connectors. Finally, configure the fields and monitoring cases in Safety Designer. Verify the safety distance according to ISO 13855. Regular cleaning of the optics cover maintains reliable detection.
1x SICK MICS3-ABAZ90PZ1P01 Safety Laser Scanner
1x System Plug (Pre-Mounted on Underside)
1x Mounting Bracket Set
1x Printed Quick Start Guide
Q1: What is the protective field range of the MICS3-ABAZ90PZ1P01?
A: The protective field range is 9 m. The warning field reaches 64 m.
Q2: Which safety standards does this scanner meet?
A: It meets Type 3, SIL 2, Category 3, and PL d per EN ISO 13849.
Q3: How does the MICS3-ABAZ90PZ1P01 connect to a control system?
A: It uses PROFINET with PROFIsafe over two M12 D-coded connectors.
Q4: What is the response time of this safety laser scanner?
A: The response time is 115 ms with a protective field supplement of 100 mm.
Q5: What shipping methods are available?
A: We ship via Fedex, UPS, and DHL worldwide.
