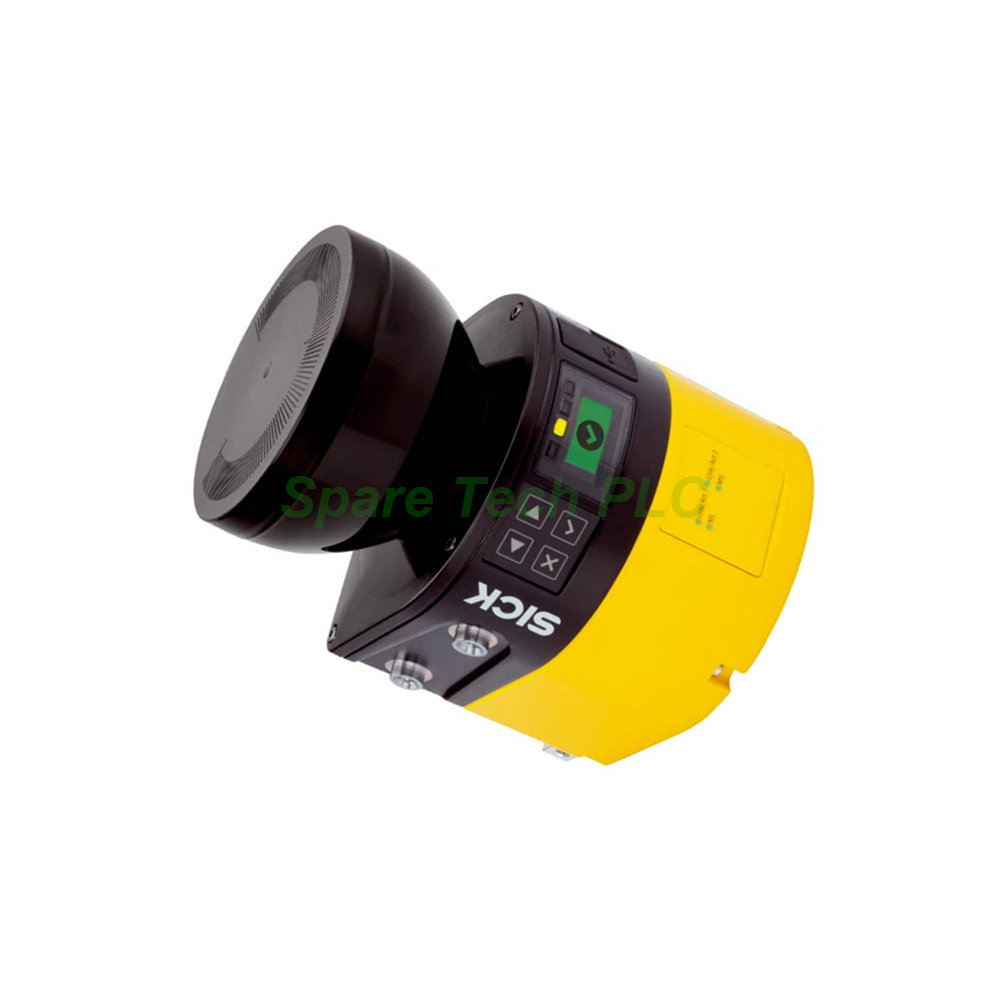

The MICS3-CCAZ90LZ1P01 represents SICK's advanced microScan3 Pro safety laser scanner. This model integrates directly into PROFINET networks using PROFIsafe protocol, simplifying safety wiring in modern automated systems. With a 275° scanning angle and a protective field range of 9 meters, it provides reliable area monitoring for stationary and mobile applications. The device supports up to 128 field sets and monitoring cases, enabling adaptive safety responses based on machine status. Furthermore, its safeHDDM scanning technology ensures high availability even in dusty or challenging environments.
The scanner operates with a pulsed laser diode at 845 nm, compliant with Laser Class 1M for eye safety. Its core function relies on configurable protective and warning fields. Specifically, the protective field covers up to 9 m, while the warning field reaches 64 m. For mobile applications like AGVs, a collision protection field range of 19 m on reference targets is available. The response time is rated at ≤115 ms, ensuring prompt reaction to intrusions.
Protective Field Range: 9 m
Warning Field Range: 64 m
Scanning Angle: 275°
Angular Resolution: 0.1°
Number of Simultaneously Monitored Fields: 4
Total Fields: 128
Monitoring Cases: 128
Resolution (Configurable): 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 150 mm, 200 mm
Safety Integrity: Type 3, SIL2, PLd, Category 3
The housing uses a durable aluminum construction with a yellow (RAL 1021) and black (RAL 9005) finish. Meanwhile, the optics cover is made of polycarbonate with an external scratch-resistant coating. The device dimensions are 112 mm x 163.1 mm x 111.1 mm (without the system plug), and it weighs 1.65 kg. For electrical integration, it operates on a 24 V DC supply voltage (16.8 V to 30 V DC range) with a typical power consumption of 8.4 W. Environmental protection includes an IP65 rating, making it resistant to dust and water ingress, suitable for indoor industrial environments.
Proper mounting is critical for optimal safety field coverage. The system plug is pre-assembled on the underside by default, but installation engineers can reposition it to the rear for easier cable routing in tight spaces. Direct mounting uses four M5 threaded holes on the back of the device. Besides mechanical installation, configuration requires the SICK Safety Designer software. This tool handles field set design, monitoring case logic, and network parameter settings for the PROFIsafe connection.
1x SICK MICS3-CCAZ90LZ1P01 Safety Laser Scanner
1x Pre-mounted System Plug (underside)
1x Mounting Kit
1x Safety Note
Shipping
We ship globally via Fedex, UPS, and DHL. Delivery times vary by destination and stock availability.
1. What is the protective field range of the MICS3-CCAZ90LZ1P01?
The protective field range is 9 meters. Additionally, the warning field extends to 64 meters for early detection.
2. Does this scanner support PROFIsafe for safety communication?
Yes, the device integrates via PROFINET with PROFIsafe protocol. This allows safe data transmission over a single Ethernet cable.
3. How many monitoring cases can be configured on this model?
Users can configure up to 128 monitoring cases. This enables adaptive safety behavior for complex sequences or vehicle maneuvers.
4. Can I change the position of the system plug after installation?
The system plug can be moved from the bottom to the back of the scanner. This requires a TX20 wrench and careful handling of the cover plate.
5. What is the typical response time for this safety laser scanner?
The response time is rated at ≤115 ms. This figure is crucial for calculating minimum safety distances per ISO 13855.
