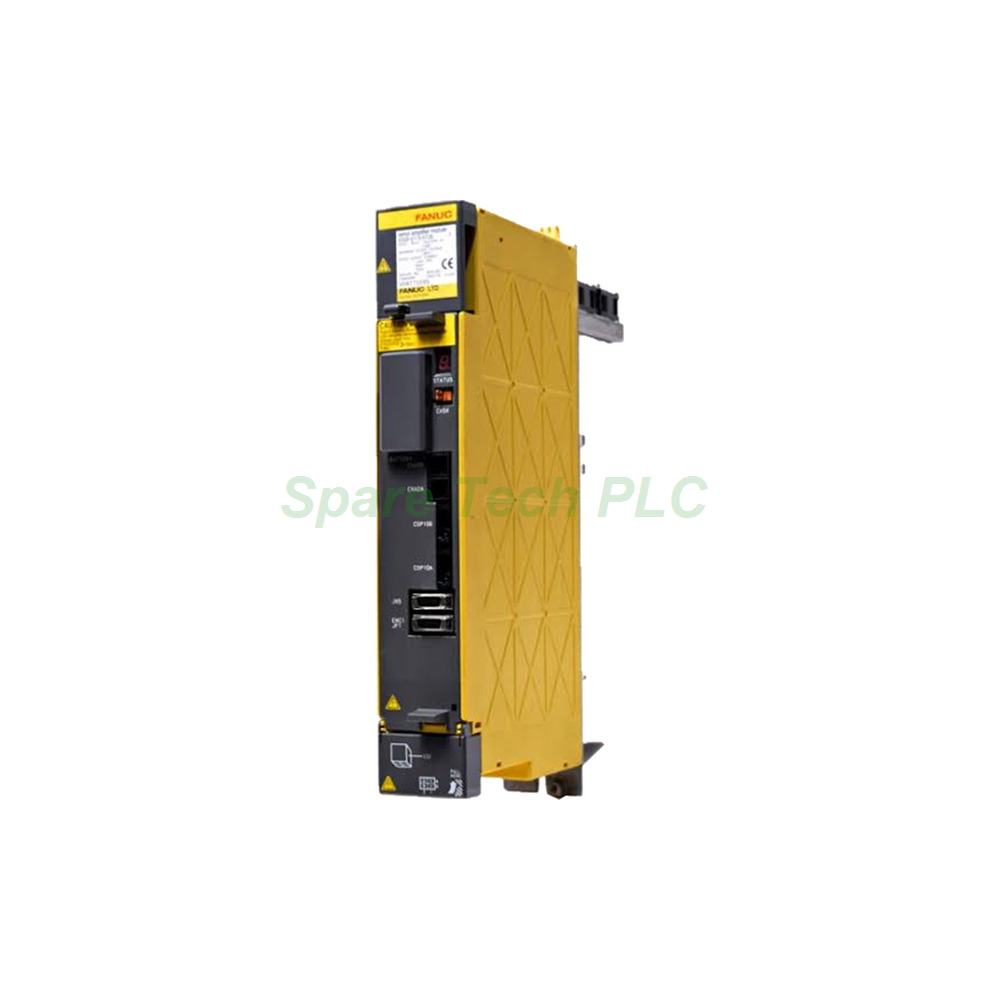

FANUC A06B-6114-H206 Servo Amplifier 7kW 13A

A06B-6114-H206 FANUC Dual-Axis Servo Amplifier Module

Product Introduction

The FANUC A06B-6114-H206 servo amplifier module brings reliable motion control to a broad spectrum of industrial applications. This unit belongs to the established A06B product family and handles input voltages from 283 to 339 VDC with ease. Moreover, it converts this DC supply into a stable 200–240 VAC output, perfectly suiting FANUC servo motors in various configurations. With a rated input power of 7 kW, this amplifier strikes an excellent balance between performance and energy efficiency. Its dual-axis design supports independent control of two motors, reducing cabinet space and overall system cost compared to using two separate single-axis units.

Technical Specifications

The A06B-6114-H206 offers remarkable speed control through its adjustable output frequency range of 0.1 – 800 Hz. This wide bandwidth enables precise speed regulation from ultra-slow positioning moves to high-speed continuous rotation. For current delivery, this module supplies a rated output current of 6.5 A for the L-axis and 13 A for the M-axis, accommodating motors with different power requirements within the same system. Its input frequency tolerance covers both 50 Hz and 60 Hz, ensuring seamless integration with power grids worldwide. Additionally, the built-in overcurrent and overtemperature protection circuits safeguard both the amplifier and connected motors from unexpected fault conditions.

Environmental and Mechanical Parameters

Operating conditions greatly influence the long-term reliability of the FANUC A06B-6114-H206. Accordingly, this module functions dependably within an ambient temperature range of 0°C to 55°C. This thermal tolerance ensures stable operation even in warm industrial environments or inside crowded control cabinets. Furthermore, it withstands relative humidity levels up to 90% RH, provided that no condensation forms inside the housing. These environmental ratings make the module suitable for diverse factory settings, from automotive assembly plants to food processing facilities. Weighing just 6.80 kg, its lightweight construction simplifies handling during installation and maintenance activities.

Installation Guidance

Proper installation of the A06B-6114-H206 ensures optimal thermal performance and electrical safety. First, mount the unit vertically onto a flat, conductive backplate to facilitate natural convection cooling. Maintain at least 10 cm of clearance above and below the module for unobstructed airflow. Use shielded cables for motor and encoder connections to minimize electromagnetic interference from nearby power lines. Next, secure the DC bus terminals with the recommended torque values to prevent loose connections that could cause overheating. Connect the protective earth terminal directly to the main grounding bar of the control panel. Before initial startup, always verify that the input voltage remains strictly within the specified 283–339 VDC range.

Packaging List

Your shipment of the FANUC A06B-6114-H206 includes the following items:

• Dual-axis servo amplifier module (1 unit)

• Mounting screws and washers (set)

• Terminal block connectors for power and control signals

• Quick-start installation guide

• Protective dust caps for unused ports

Note: Motor cables, external regenerative resistors, and communication cables are not included and must be ordered separately based on your specific configuration.

Shipping & Delivery

We dispatch all orders promptly via FedEx, UPS, or DHL with full tracking capabilities. Each unit receives careful packaging using anti-static bags and shock-absorbing foam inserts to ensure safe transit. Orders typically leave our warehouse within 1–2 business days after payment confirmation. For international shipments, we provide complete customs documentation to expedite clearance and minimize delivery delays.

Frequently Asked Questions (FAQ)

1. Can the A06B-6114-H206 drive two motors with different power ratings simultaneously?
Yes, this module supports dual-axis operation with independent current ratings—6.5A for the L-axis and 13A for the M-axis. This design allows you to connect motors with different torque requirements on each axis.

2. Is this amplifier compatible with FANUC CNC systems?
Absolutely. The FANUC A06B-6114-H206 integrates seamlessly with FANUC CNC series 0i, 30i, and 31i via the standard FANUC servo communication bus. Proper parameter configuration is required for full functionality.

3. What happens if one axis experiences a fault during operation?
The module features independent fault monitoring per axis. If an overcurrent or overtemperature condition occurs on one axis, the amplifier shuts down only that axis while maintaining power to the other, minimizing production downtime.

4. Can I use this module with a 220VAC single-phase input?
No, the A06B-6114-H206 requires a DC input of 283–339 VDC, typically supplied by a three-phase rectifier or a dedicated DC power supply. Single-phase AC cannot be connected directly to this module.

5. How often should I inspect or maintain this amplifier?
We recommend inspecting the cooling fan and air intakes every 6 months under normal conditions. In dusty environments, perform cleaning quarterly. Replace the internal DC bus capacitors after approximately 5 years of continuous operation.
