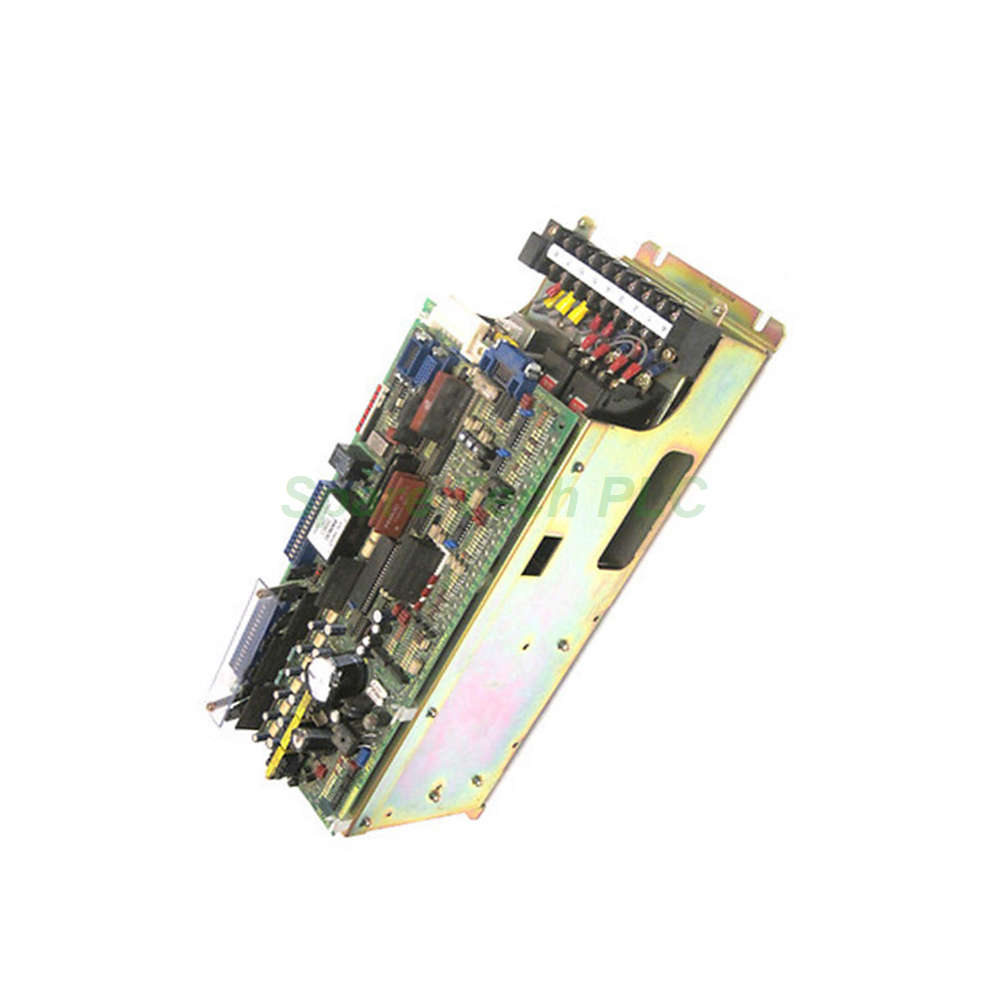

The FANUC A06B-6058-H005 servo amplifier delivers precise motor control for demanding industrial automation tasks. This model belongs to FANUC's trusted A06B product line, widely recognized for durability and consistent performance. With a 3.08 kW power rating, it handles medium-to-heavy loads in CNC machining centers, articulated robots, and conveyor-driven material handling systems. Furthermore, its PWM interface support ensures seamless communication with FANUC controllers and third-party motion systems. The open-frame design promotes natural air circulation, reducing overheating risks during extended operation. Additionally, this amplifier maintains stable output even in environments with moderate vibration and varying altitudes. Many system integrators prefer this model for retrofit projects due to its straightforward mounting and proven reliability.
The A06B-6058-H005 operates with a PWM (Pulse Width Modulation) interface, enabling precise speed and torque control. Its power rating of 3.08 kW suits spindle drives, axis motors, and auxiliary motion axes in CNC applications. The unit weighs 8.62 kg (19.00 lbs) and features an open-frame construction for simplified maintenance. Furthermore, it supports three primary application categories: CNC machinery, robotics, and material handling equipment. The operating temperature range spans 0°C to 40°C (32°F to 104°F), covering most factory floor conditions. For vibration resistance, this amplifier withstands up to 5G, ensuring stable performance near stamping presses or high-speed milling machines. Moreover, its altitude rating reaches 1000 metres above sea level, making it suitable for installations in highland regions without derating.
This FANUC servo amplifier operates reliably within a temperature window of 0°C to 40°C. However, exposure beyond this range may trigger thermal protection or reduce component lifespan. The 5G vibration tolerance applies to sinusoidal and random vibrations commonly found in machining environments. Specifically, the unit should be mounted on vibration-damping pads if installed directly on heavy machinery. The maximum altitude of 1000 metres ensures full power output without derating; for higher altitudes, consult FANUC for application-specific guidance. Additionally, the open-frame design requires adequate clearance (minimum 100 mm above and below) for proper airflow. The amplifier's enclosure provides basic IP protection against dust and non-corrosive particles, though it is not rated for washdown or outdoor use.
Before installing the A06B-6058-H005, verify that the mounting surface is flat, rigid, and free from excessive vibration. First, secure the amplifier using M5 screws through the designated mounting holes, applying a torque of 2.5 N•m. Next, connect the DC bus and motor power cables following the terminal markings on the front panel – always use crimped lug terminals for reliable connections. Remember to route signal cables (PWM and feedback) separately from power cables to minimize electromagnetic interference. Additionally, provide at least 100 mm of free space above and below the unit for natural convection cooling. For systems with multiple amplifiers, maintain 50 mm side clearance between units. Finally, verify that the ambient temperature does not exceed 40°C during full-load operation; use forced-air cooling if necessary.
1 x FANUC A06B-6058-H005 Servo Amplifier (3.08 kW, open frame)
1 x Terminal cover with mounting screws
1 x Quick-start connection diagram
Note: No power cables, feedback cables, or mounting brackets are included. Certificates and warranty documents are not provided in this package.
1. Which FANUC controllers are compatible with the A06B-6058-H005?
This amplifier works with FANUC Series 30i, 31i, 32i, and earlier 0i/16i/18i models that support PWM servo interfaces – always check your controller's servo compatibility list.
2. Can the A06B-6058-H005 drive both spindle and axis motors?
Yes, it supports axis motors (feed drives) and can also drive spindle motors within its 3.08 kW rating, though spindle applications require proper parameter configuration.
3. What happens if the operating temperature exceeds 40°C for this FANUC amplifier?
The unit may trigger an over-temperature alarm (code 8 or 9) and reduce output current to protect internal components – improve cabinet ventilation or add a cooling fan if this occurs.
4. Is the A06B-6058-H005 suitable for retrofitting older CNC machines?
Absolutely. Many users replace older FANUC or third-party amplifiers with this model, provided the existing motors match the voltage and current ratings of this 3.08 kW unit.
5. How do I check if my system's vibration level is within the 5G specification?
Use a portable vibration meter at the mounting point – if readings exceed 5G (peak) continuously, install rubber isolators or relocate the amplifier to a less vibrating area.
| Brand Name | |
| Model No. | A06B-6058-H005 |
| Product Type | Servo Amplifier |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
