SICK TIM150-3010300 2D LiDAR Sensor

SICK TiM150-3010300 Indoor LiDAR Scanner

Product Introduction

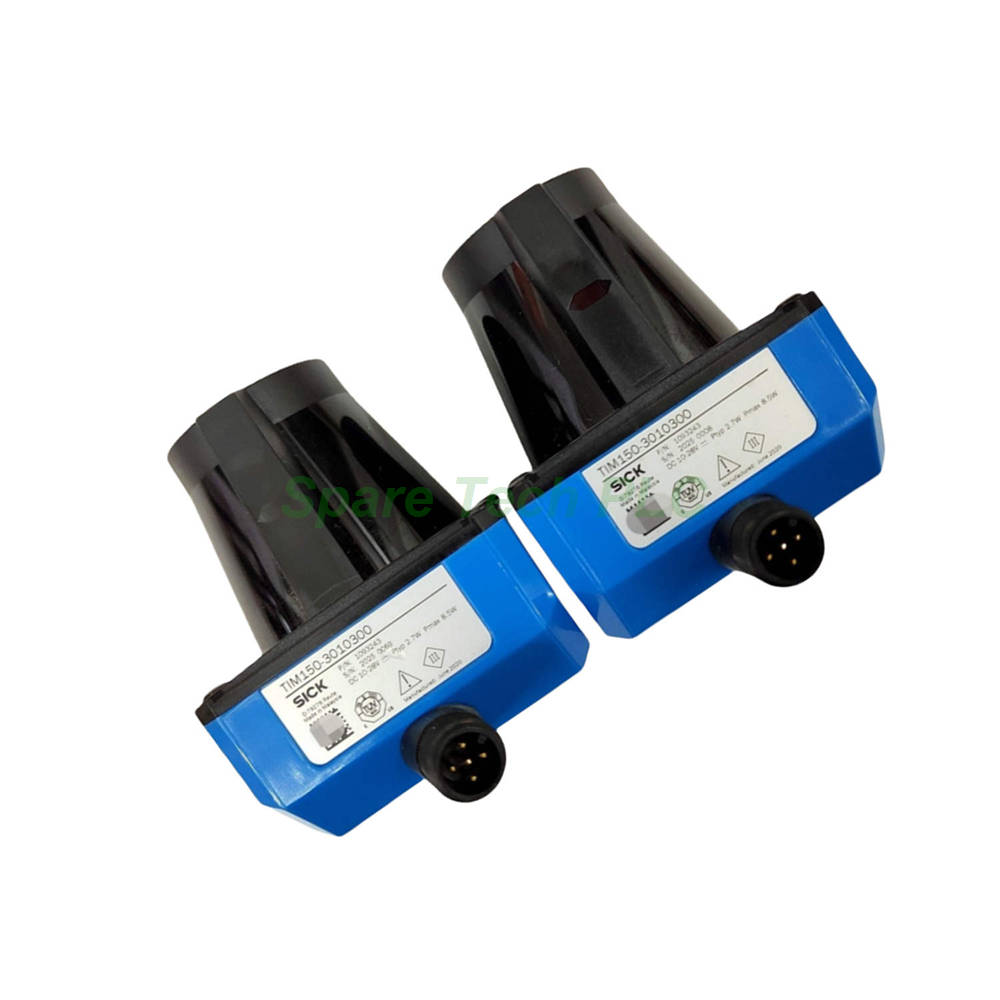

The TIM150-3010300 belongs to the SICK TiM 2D LiDAR sensor family, designed for indoor measurement and detection tasks. This model offers a 200° horizontal aperture angle and a working range from 0.05 m up to 10 m. Because it uses HDDM+ measurement technology, the sensor maintains stable performance even under challenging light conditions. Meanwhile, the compact housing measures only 60 mm x 60 mm x 75.8 mm and weighs 122 g, so integrators can mount it in space-limited machines. The unit is not a safety component, so engineers should apply it for standard automation duties.

Technical Specifications

The scanner emits infrared light at 850 nm and complies with Laser Class 1, which means it is eye-safe under normal operating conditions. Its scanning frequency reaches 14.5 Hz, and the angular resolution is 1°. For object detection, the systematic error is ±40 mm, while the statistical error is 30 mm. The typical response time is 70 ms, and the device provides one field set with two simultaneous evaluation fields. Power comes from a 10 V DC to 28 V DC supply, with typical consumption of 2.7 W.

• Working Range: 0.05 m ... 10 m

• Aperture Angle: 200° (Horizontal)

• Scanning Frequency: 14.5 Hz

• Angular Resolution: 1°

• Light Source: Infrared (850 nm)

• Laser Class: 1

• Response Time: Typ. 70 ms

• Systematic Error: ±40 mm

• Statistical Error: 30 mm

• Number of Field Sets: 1

• Simultaneous Evaluation Cases: 1 (2 fields)

• Supply Voltage: 10 V DC ... 28 V DC

Mechanical and Environmental Parameters

The housing features a light blue finish in RAL 5012 and carries an IP65 enclosure rating. This rating protects the sensor from dust and water jets, which suits many factory floor conditions. The connection uses a single 5-pin M12 male device connector that rotates for easier cable routing. Moreover, ambient light immunity reaches 30,000 lx, so bright overhead lighting will not disturb measurements. The operating temperature spans -10 °C to +50 °C, and the storage range extends from -30 °C to +70 °C. With an MTBF of 82 years, the device promises long-term reliability.

Installation Guide

First, select a mounting position that provides a clear view of the target area. The rotatable M12 connector allows cable exit in multiple directions, which simplifies routing inside tight cabinets. Next, connect the 5-pin M12 cable and apply a supply voltage between 10 V DC and 28 V DC. Then, configure the digital outputs and delay or dwell times through the IO-Link service interface. Finally, verify the switching status using the two onboard LEDs and adjust the field evaluation settings as needed.

Packaging List

• 1x SICK TIM150-3010300 2D LiDAR Sensor

• 1x Safety Note

• 1x Quick Start Guide

Shipping
We ship globally via Fedex, UPS, and DHL. Delivery times vary by destination and stock availability.

FAQ

1. What is the working range of the TIM150-3010300?
The working range spans 0.05 m to 10 m. Additionally, at 10% remission the scanning range sits between 2.8 m and 3 m depending on angle.

2. Is this LiDAR sensor a certified safety component?
No, SICK states it is not a safety component under machine safety legislation. For safety duties, please choose a certified safety scanner.

3. How does the TiM150 communicate with a controller?
It offers IO-Link for service and parameterization plus two push-pull digital outputs. Consequently, integration with common PLC systems stays straightforward.

4. What is the aperture angle of this 2D LiDAR sensor?
The horizontal aperture angle measures 200°. Furthermore, the angular resolution is 1° for detailed scanning.

5. Can the TIM150-3010300 operate in bright ambient light?
Yes, ambient light immunity reaches 30,000 lx. Therefore, it performs well under strong indoor lighting conditions.
