SICK YMHDAC-C30XXXMDSA9 Adapter Cable

SICK YMHDAC-C30XXXMDSA9 D-Sub Adapter Cable

Product Introduction

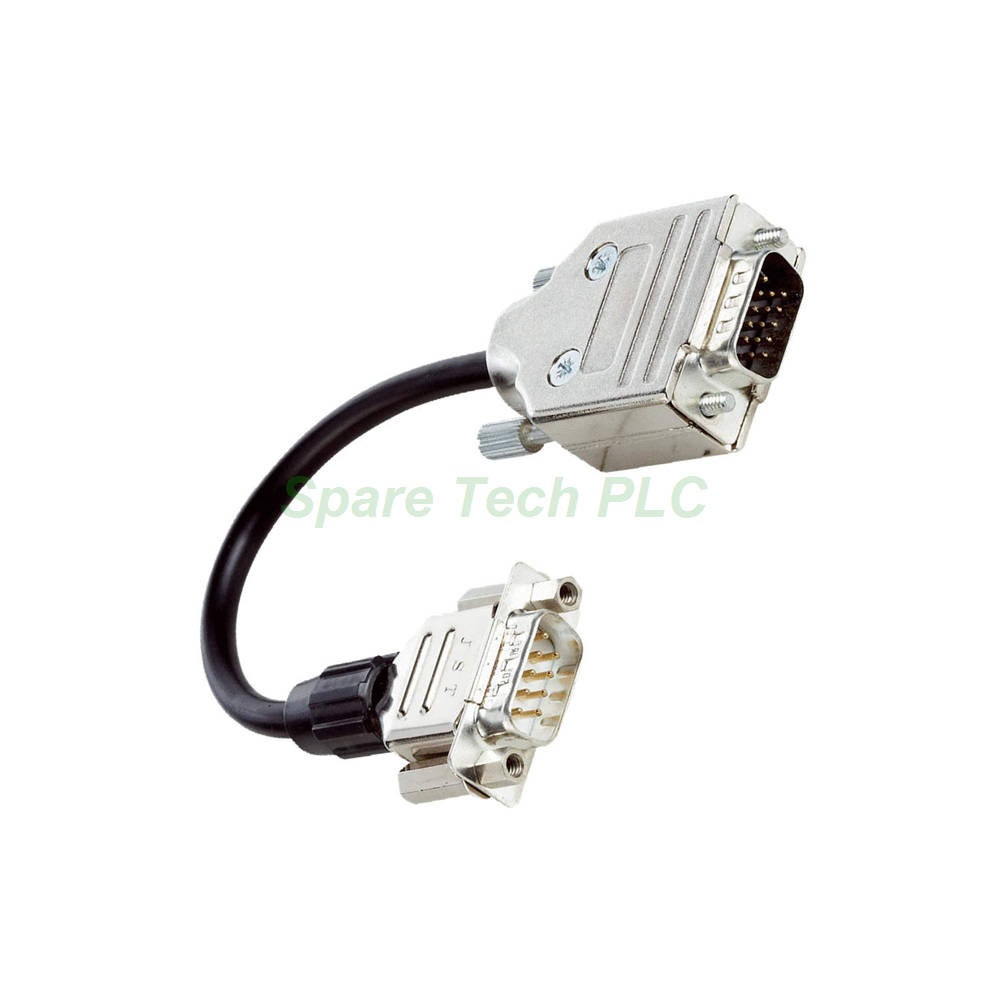

The YMHDAC-C30XXXMDSA9 is a specialized adapter cable from SICK, built for handheld scanner integration. Specifically, it connects a 9-pin D-Sub male connector to a 15-pin D-Sub male connector over a short 0.3 m cable. This compact length keeps wiring tidy inside control cabinets and connection modules. Moreover, the cable ships with an integrated 24V/5V DC converter, which supplies the correct voltage to compatible handheld devices. As a result, technicians avoid extra power supplies and reduce installation complexity.

Technical Specifications

The adapter belongs to the "Other adapters" accessory family and serves the AUX port on supported connection modules. Head A uses a 9-pin D-Sub male connector, while head B uses a 15-pin D-Sub male connector. The cable itself measures 0.3 m, which suits short-distance links between a scanner and its module. Besides the converter, the unit carries EU and UK declarations of conformity along with China RoHS compliance.

• Connection Type Head A: Male Connector, D-Sub, 9-pin

• Connection Type Head B: Male Connector, D-Sub, 15-pin

• Cable Length: 0.3 m

• Function: AUX Port Adapter

• Special Feature: Includes 24V/5V DC Converter

• Compatible Modules: CDB620, CDM420, CDF600, CDF600-2

• Certificates: EU Declaration of Conformity, UK Declaration of Conformity, China RoHS

Mechanical and Environmental Parameters

The short 0.3 m cable reduces strain and clutter in dense cabinet layouts. Its D-Sub connectors provide secure screw-locking, which prevents accidental disconnection during operation. Meanwhile, the built-in converter handles voltage regulation internally, so the scanner receives a stable 5 V supply from a 24 V source. This design protects sensitive handheld electronics from overvoltage. Because the adapter targets indoor control cabinets, it operates within typical industrial temperature and humidity ranges.

Installation Guide

First, identify the AUX port on the CDB620, CDM420, CDF600, or CDF600-2 module. Next, plug the 9-pin D-Sub connector into the handheld scanner and tighten the locking screws. Then, attach the 15-pin D-Sub connector to the module's AUX port and secure it the same way. After that, verify that the 24V/5V converter receives power from the module. Finally, test the scanner communication and confirm stable voltage before closing the cabinet.

Packaging List

• 1x SICK YMHDAC-C30XXXMDSA9 Adapter Cable

• 1x Safety Note

• 1x Quick Start Guide

Shipping
We ship globally via Fedex, UPS, and DHL. Delivery times vary by destination and stock availability.

FAQ

1. What does the YMHDAC-C30XXXMDSA9 connect?
It links a 9-pin D-Sub connector to a 15-pin D-Sub connector. Additionally, it serves the AUX port on SICK connection modules.

2. Which modules work with this adapter cable?
The cable supports the CDB620, CDM420, CDF600, and CDF600-2 modules. Therefore, it suits common SICK handheld scanner setups.

3. Does this cable include a voltage converter?
Yes, SICK supplies a 24V/5V DC converter with the adapter. Consequently, no external power supply is needed.

4. How long is the YMHDAC-C30XXXMDSA9 cable?
The cable measures 0.3 m. Besides its short length, the D-Sub connectors include screw locks for secure mounting.

5. Which certificates come with this adapter?
It carries EU and UK declarations of conformity plus China RoHS compliance. However, the packaging list does not include printed certificates.
