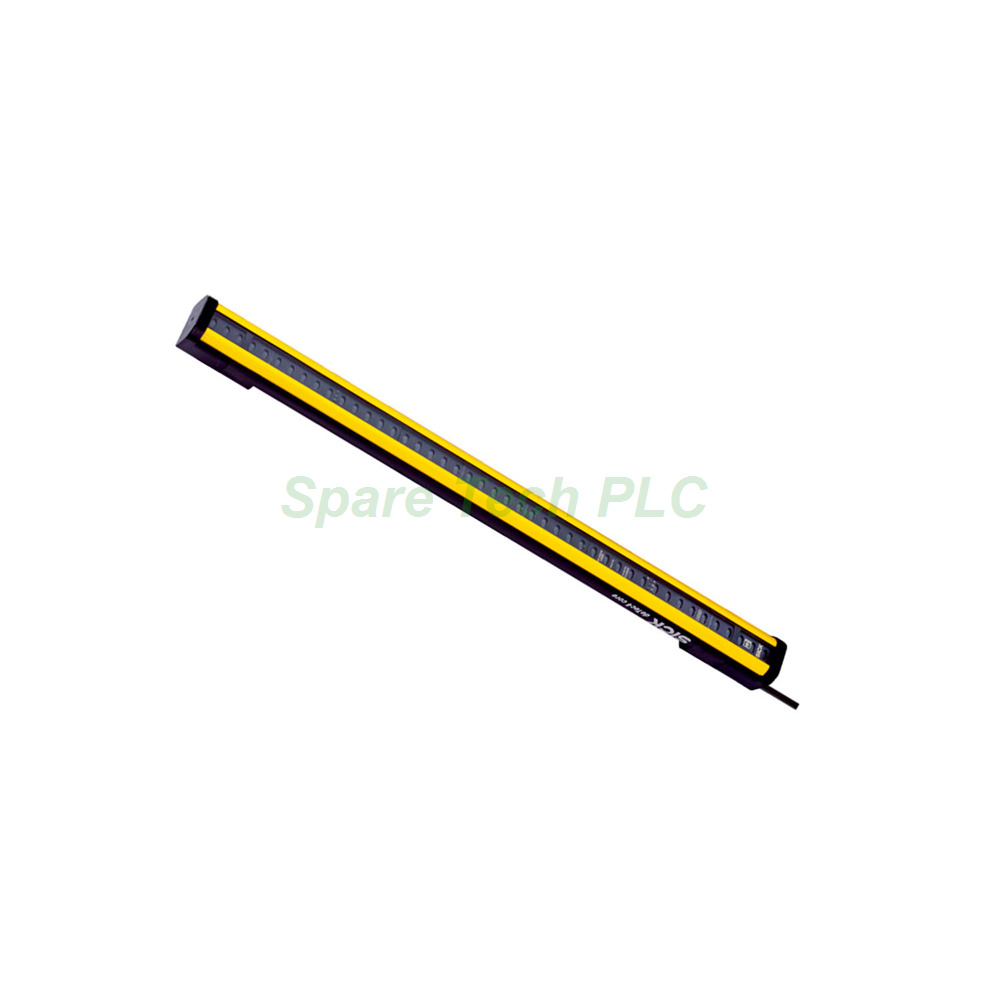

The C4C-SA10530A10000 is a sender unit from the SICK deTec4 Core safety light curtain family. This model provides a protective field height of 1,050 mm and a resolution of 30 mm, making it suitable for hand detection tasks. Meanwhile, its optical synchronization removes the need for a physical sync cable between sender and receiver. As a result, installation becomes simpler and faster. The unit pairs with the compatible receiver C4C-EA10530A10000 (part number 1211500) to form a complete Type 4 safety system.
The device meets the highest safety standards, including Type 4 per IEC 61496-1, SIL3 per IEC 61508, and PL e per ISO 13849-1. Its scanning range reaches 15 m, while the response time is just 11 ms. Additionally, the system has no blind zones, which improves detection reliability at the edges of the protective field. The sender uses a wavelength of 850 nm and draws a typical power consumption of 2.11 W.
Resolution: 30 mm
Scanning Range: 15 m
Protective Field Height: 1,050 mm
Response Time: 11 ms
Safety Type: Type 4 (IEC 61496-1)
Safety Integrity: SIL3 (IEC 61508), SILCL3 (IEC 62061)
Performance Level: PL e (ISO 13849-1)
PFHD: 3.7 x 10-9
Mission Time: 20 years
No Blind Zones: Yes
Synchronization: Optical
The housing uses an aluminum extruded profile, which provides strength without excess weight. The unit measures 41.34 inches in length and weighs approximately 970 g. For connectivity, it features a male M12 5-pin system connection. Environmental protection includes IP65 and IP67 ratings, so the device withstands dust, water spray, and temporary immersion. Furthermore, the ambient operating temperature ranges from -30 °C to +55 °C, allowing use in cold storage and outdoor applications. Vibration resistance is rated at 5 g from 10 Hz to 55 Hz, and shock resistance reaches 10 g for 16 ms.
First, mount the sender and receiver at the correct distance using the FlexFix bracket system. This bracket allows alignment adjustments of up to ±15°, which simplifies setup on uneven frames. Next, connect the M12 5-pin male connector to the system wiring. Because synchronization is optical, no separate sync line is required between the two units. Then, power the device with 24 V DC and verify the LED status indicators. Finally, perform the automatic calibration on the protective field width, which the system completes without manual tuning.
1x SICK C4C-SA10530A10000 Sender Unit
1x Test Rod
1x Safety Instruction
1x Mounting Instruction
Shipping
We ship globally via Fedex, UPS, and DHL. Delivery times vary by destination and stock availability.
1. What receiver pairs with the C4C-SA10530A10000?
This sender works with the C4C-EA10530A10000 receiver, part number 1211500. Both units must match in resolution and protective field height.
2. Does this safety light curtain require a synchronization cable?
No, the deTec4 Core uses optical synchronization. Therefore, installers only need to connect power and OSSD wiring.
3. What is the protective field height of this model?
The protective field height measures 1,050 mm. Additionally, the resolution is 30 mm for hand detection.
4. Which safety level does the deTec4 Core achieve?
It reaches Type 4, SIL3, and PL e. Consequently, it suits the most demanding machine safety applications.
5. Can this light curtain operate in cold environments?
Yes, the ambient operating temperature range is -30 °C to +55 °C. Moreover, the IP65 and IP67 ratings protect it from dust and moisture.
