FANUC A06B-6114-H209 Servo Amplifier Module 11kW

A06B-6114-H209 FANUC Servo Amplifier Module

Product Introduction

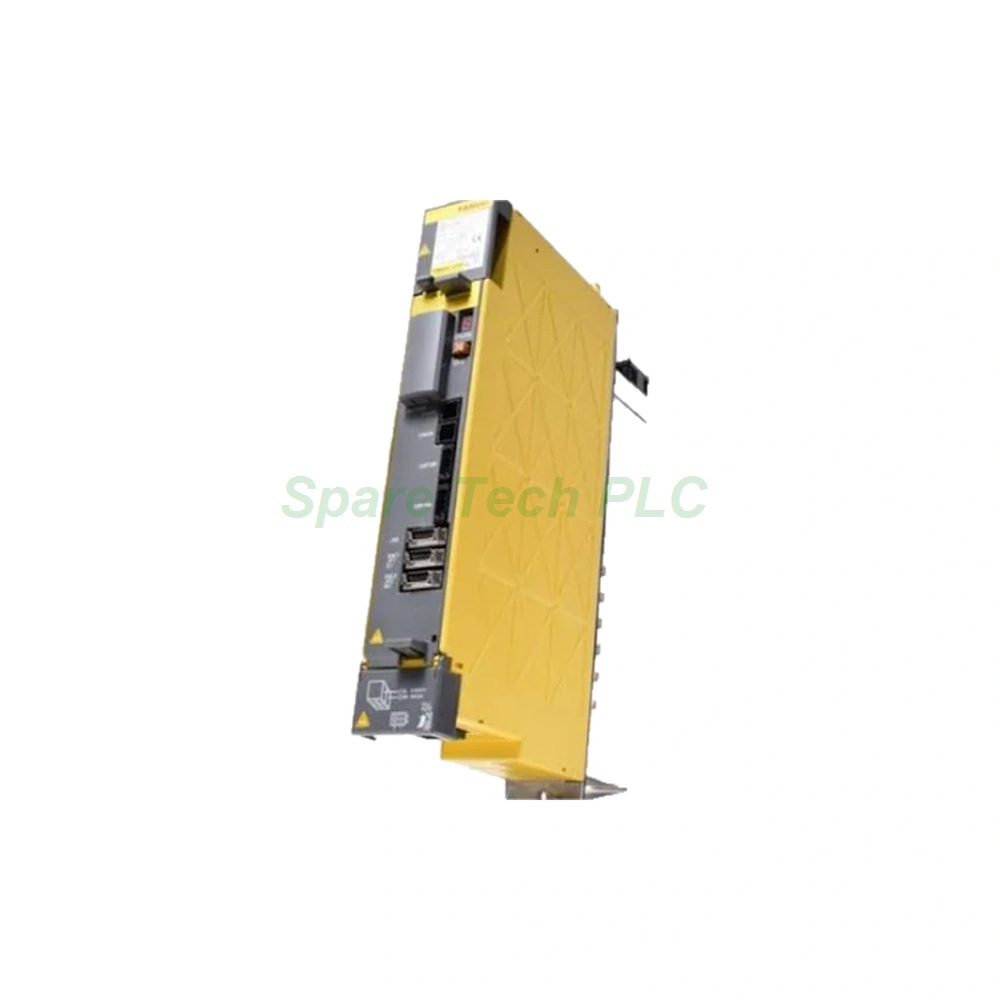

The FANUC A06B-6114-H209 servo amplifier module stands as a high-performance solution for motion control systems. This unit belongs to the trusted A06B product line and works effectively in machine tools, robotics, and automated production lines. First, it accepts a DC input voltage from 283 to 339 VDC, which ensures broad compatibility with standard industrial power supplies. Moreover, it converts this input into a three-phase AC output ranging from 200 to 240 VAC, perfectly suiting FANUC servo motors. Its rated input power of 11 kW enables it to handle heavy loads without compromising stability or response speed.

Technical Specifications

The A06B-6114-H209 offers precise speed regulation through its adjustable output frequency range of 0.1 – 800 Hz. This wide span allows fine-tuning for both low-speed torque applications and high-speed rotation tasks. In terms of current handling, the module delivers a rated output current of 19A for the L-axis and another 19A for the M-axis, making it ideal for dual-axis control configurations. Its input frequency tolerance covers 50/60 Hz, so it adapts seamlessly to regional power grids. Additionally, the built-in protection circuitry guards against overcurrent and short-circuit conditions, enhancing system reliability.

Environmental and Mechanical Parameters

Operating conditions directly affect the performance of the FANUC A06B-6114-H209. Accordingly, the module functions reliably within an ambient temperature range of 0°C to 55°C. This wide thermal tolerance ensures stable operation even in poorly ventilated cabinets or near heat-generating machinery. Furthermore, it withstands relative humidity up to 90% RH, provided that no condensation forms inside the unit. These environmental ratings make the module suitable for factories with varying climate conditions. Weighing only 6.80 kg, its compact form factor simplifies installation in crowded control panels.

Installation Guidance

Proper installation of the A06B-6114-H209 requires attention to mounting orientation and cooling clearance. First, mount the unit vertically on a flat, conductive backplate to optimize heat dissipation. Maintain at least 10 cm of free space above and below the module for airflow. Use shielded cables for the motor and encoder connections to minimize electromagnetic interference. Next, secure the DC bus connections with the recommended torque values to avoid loose contacts. Ground the protective earth terminal directly to the main grounding bar. After wiring, verify that the input voltage stays within the specified 283–339 VDC range before power-up.

Packaging List

Your shipment of the FANUC A06B-6114-H209 includes the following items:

• Servo amplifier module (1 unit)

• Mounting screws and washers (set)

• Terminal block connectors for power and control

• User manual (quick-start guide)

• Protective dust caps for unused ports

Note: Cables, external resistors, and braking units are sold separately.

Shipping & Delivery

We dispatch all orders via FedEx, UPS, or DHL to ensure fast and trackable delivery. Each unit undergoes careful packaging with anti-static materials and shock-absorbing foam. Expect shipment within 1–2 business days after order confirmation. International customers receive full customs documentation to expedite clearance.

Frequently Asked Questions (FAQ)

1. Does the A06B-6114-H209 support single-phase input?
No, this servo amplifier requires a DC input of 283–339 VDC, typically derived from a three-phase rectifier or a dedicated DC power supply. Single-phase AC input is not directly compatible.

2. Can I use this module with non-FANUC motors?
While technically possible, we strongly recommend pairing the FANUC A06B-6114-H209 with FANUC servo motors for optimal tuning, feedback resolution, and safety compliance. Third-party motors may not achieve full performance.

3. What is the recommended maintenance interval for this amplifier?
Inspect the cooling fan and air intakes every 6 months under normal conditions. In dusty environments, perform cleaning quarterly. Replace the internal DC bus capacitors after approximately 5 years of operation.

4. How do I reset the amplifier after an overcurrent fault?
First, power off the unit and eliminate the fault source. Wait for the charge lamp to turn off. Then, restart the system and clear the alarm through the host controller or front panel interface.

5. Is the A06B-6114-H209 compatible with the FANUC CNC series 30i or 31i?
Yes, this module integrates seamlessly with FANUC CNC series 30i, 31i, and 32i via the standard FANUC servo bus. Proper parameter configuration in the CNC software is required for full functionality.
