Product Introduction
The S30A-6011GB belongs to the SICK S3000 Expert series. This safety laser scanner delivers advanced 2D LiDAR protection for complex industrial machinery. It uses pulsed laser time-of-flight measurement at 905 nm. The device is eye-safe under IEC 60825-1:2014 Class 1. Its protective field reaches 5.5 m, while the radial warning field extends to 49 m. Therefore, it suits medium-range safety monitoring with high configuration flexibility.
This unit is an expert-class scanner. It supports up to 32 monitoring cases and 64 fields. Unlike standard models, it enables velocity-dependent safety monitoring with encoder inputs. It also outputs simultaneous CMS raw contour data. As a result, engineers can build adaptive safety concepts for changing production flows. The S30A-6011GB is ideal for automated guided vehicles, robot cells, and flexible manufacturing lines.
The S30A-6011GB provides a protective field range of 5.5 m and a warning field range of 49 m. Its light source is a pulsed laser diode at 905 nm. The average optical power stays below 1 mW, which keeps it Class 1 eye-safe. Response time is ≤ 60 ms and can be configured from 60 ms to 120 ms via sampling rates. Furthermore, the scanning angle covers 190° with 0.25° or 0.5° angular resolution.
Object resolution is configurable: 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. This flexibility helps match different detection needs. Safety integrity meets Type 3 per IEC 61496-1 and -3. It also achieves SIL 2 per IEC 61508, SILCL 2 per EN 62061, and PL d / Category 3 per EN ISO 13849-1. Systematic measurement error is typically ± 35 mm. These ratings confirm the scanner's high reliability in safety-critical tasks.
Communication relies on multiple interfaces. Specifically, the scanner offers one OSSD pair with PNP type at 250 mA. It also includes incremental encoder inputs for speed-dependent monitoring. Moreover, a safe EFI bus enables centralized configuration and diagnostics. The CMS raw contour data output supports advanced measurement tasks. The supply voltage is DC 24 V, with an operating range of 16.8 V to 28.8 V. It requires SELV or PELV safety extra-low voltage.
Power consumption is typically 19 W without external output loads. The electrical connection uses a system plug with comprehensive I/O interfaces. Consequently, users gain broad connectivity without extra adapters. This design simplifies integration into existing control architectures and reduces installation effort.
The S30A-6011GB operates between -10 °C and +50 °C. Storage temperature ranges from -20 °C to +70 °C. Its enclosure protection rating is IP65 per EN 60529. Therefore, it resists dust and water jets. Physical dimensions are 155 mm x 185 mm x 160 mm (W x H x D). The housing uses aluminum die-cast with a polycarbonate optical hood. Device weight is approximately 3.3 kg. These features allow mounting in harsh industrial environments.
The scanner supports up to 32 monitoring cases and 64 fields. This enables maximum safeguarding flexibility across multiple operating states. Additionally, triple-field mode provides one protective field and two warning fields. As a result, staged machine slowing and stopping become possible. Meanwhile, simultaneous CMS contour measurement output and velocity-dependent safety monitoring support advanced automation. For instance, a vehicle can switch field sets automatically as its speed changes.
First, select a mounting position with a clear view of the protected area. Next, secure the scanner using the appropriate mounting bracket. Then, connect the system plug to the power, encoder, and EFI bus cables. After that, configure monitoring cases and field sets via the SICK configuration software. Finally, perform a safety check and verify response time settings. Proper alignment prevents blind spots and ensures full coverage.

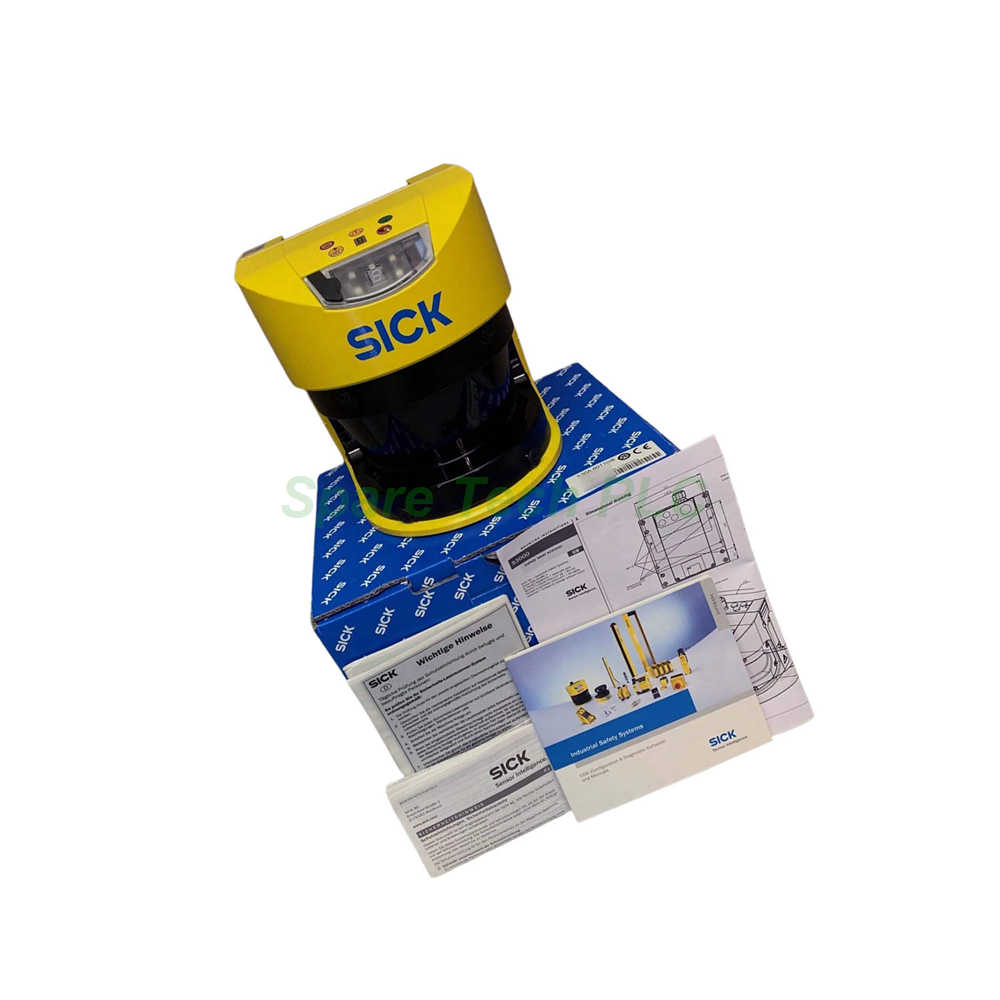

1x SICK S30A-6011GB Safety Laser Scanner
1x System Plug with I/O Interfaces
1x Mounting Kit
1x Quick Start Guide
We ship worldwide via Fedex, UPS, and DHL. Orders process within 1–2 business days. Tracking numbers arrive by email after dispatch.
Q1: What is the protective field range of the S30A-6011GB?
A: The protective field range is 5.5 m. The warning field reaches 49 m radially.
Q2: How many monitoring cases does this scanner support?
A: It supports up to 32 monitoring cases and 64 fields for flexible safeguarding.
Q3: What safety ratings does the S30A-6011GB meet?
A: It meets Type 3, SIL 2, SILCL 2, and PL d / Category 3 standards.
Q4: Does this model support encoder inputs?
A: Yes. It includes incremental encoder inputs for velocity-dependent safety monitoring.
Q5: Can the S30A-6011GB work outdoors?
A: It has IP65 protection. However, avoid direct sunlight and heavy rain for best performance.
| Brand Name | |
| Model No. | S30A-6011GB |
| Product Type | Safety Laser Scanner |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
