Product Introduction

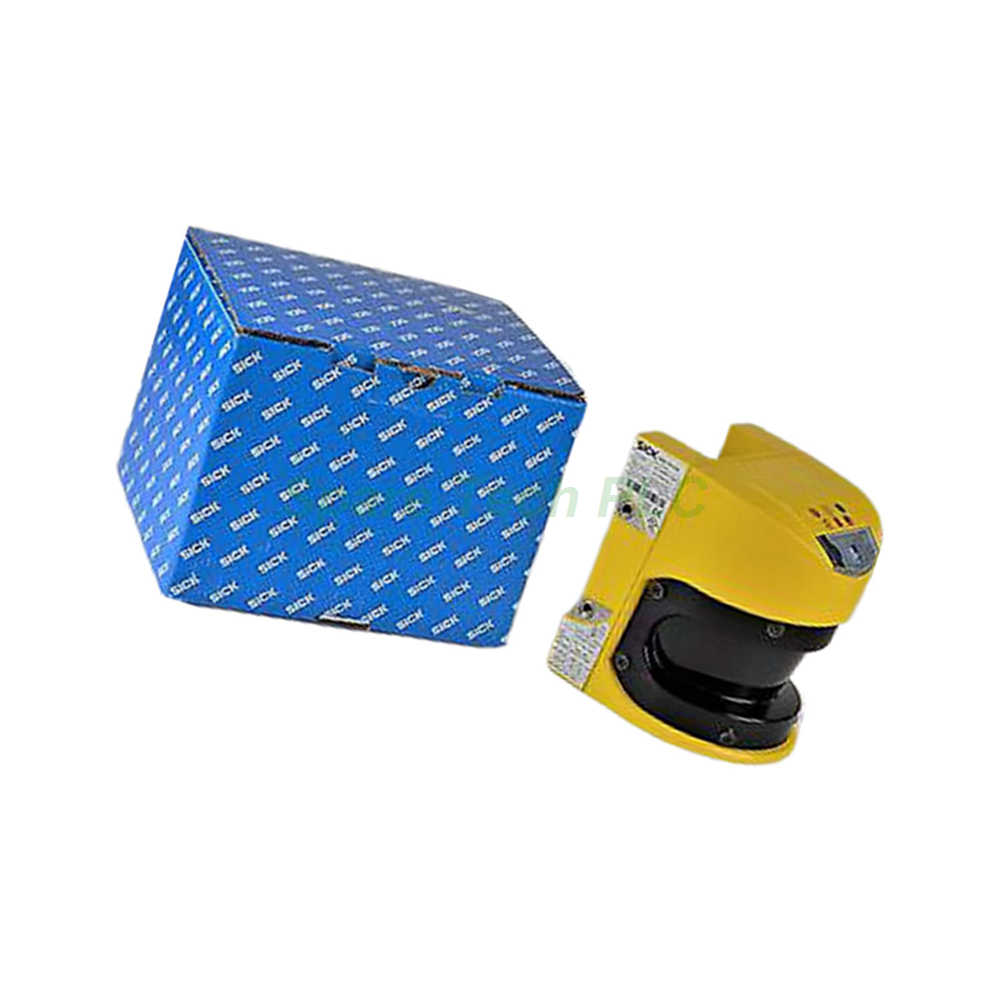

The S30A-7011BA belongs to the SICK S3000 Standard series. This safety laser scanner delivers reliable 2D LiDAR protection for industrial machinery. It uses pulsed laser time-of-flight measurement at 905 nm. The device is eye-safe under IEC 60825-1:2014 Class 1. Its protective field reaches 7.0 m, while the radial warning field extends to 49 m. Therefore, it suits both close-range and long-range safety monitoring.

This unit is a standalone scanner. It provides one OSSD pair and one warning field output directly. Unlike remote models, it needs no external safety controller for basic operation. Local reset and EDM inputs are built in. As a result, wiring stays simple and commissioning becomes faster. The S30A-7011BA is ideal for robot cells, press protection, and automated storage systems.

Technical Specifications

The S30A-7011BA provides a protective field range of 7.0 m and a warning field range of 49 m. Its light source is a pulsed laser diode at 905 nm. The average optical power stays below 1 mW, which keeps it Class 1 eye-safe. Response time is ≤ 60 ms and can be configured from 60 ms to 120 ms via sampling rates. Furthermore, the scanning angle covers 190° with 0.25° or 0.5° angular resolution.

Object resolution is configurable: 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. This flexibility helps match different detection needs. Safety integrity meets Type 3 per IEC 61496-1 and -3. It also achieves SIL 2 per IEC 61508, SILCL 2 per EN 62061, and PL d / Category 3 per EN ISO 13849-1. Systematic measurement error is typically ± 35 mm. These ratings confirm the scanner's high reliability in safety-critical tasks.

Interface and Electrical Data

Communication relies on direct safety outputs. Specifically, the scanner offers one OSSD pair with PNP type at 250 mA. It also provides one warning field output at 100 mA. Local reset and external device monitoring inputs come standard. The supply voltage is DC 24 V, with an operating range of 16.8 V to 28.8 V. It requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads.

The electrical connection uses a system plug. Note that this plug is ordered separately. Options include the SX0A-A0000B with cable gland or M12 connectors. Consequently, users can match the connector style to their existing wiring. This design keeps spare parts flexible and reduces downtime during replacement.

Mechanical and Environmental Parameters

The S30A-7011BA operates between -10 °C and +50 °C. Storage temperature ranges from -20 °C to +70 °C. Its enclosure protection rating is IP65 per EN 60529. Therefore, it resists dust and water jets. Physical dimensions are 155 mm x 185 mm x 160 mm (W x H x D). The housing uses aluminum die-cast with a polycarbonate optical hood. Device weight is approximately 3.3 kg. These features allow mounting in harsh industrial environments.

Functional Highlights

The scanner supports one field set with one protective field and one warning field. It also handles one monitoring case. Standalone hazardous area safeguarding works through integrated external device monitoring. Meanwhile, manual or automatic restart interlock is selectable via configuration software. This makes the device adaptable to different machine safety concepts. For instance, automatic restart suits enclosed cells, while manual restart fits open access areas.

Installation Guide

First, select a mounting position with a clear view of the protected area. Next, secure the scanner using the appropriate mounting bracket. Then, order and connect the system plug to the power and signal cables. After that, configure the protective and warning fields via the SICK configuration software. Finally, perform a safety check and verify response time settings. Proper alignment prevents blind spots and ensures full coverage.

Packaging List

• 1x SICK S30A-7011BA Safety Laser Scanner

• 1x Mounting Kit

• 1x Quick Start Guide

Shipping Methods

We ship worldwide via Fedex, UPS, and DHL. Orders process within 1–2 business days. Tracking numbers arrive by email after dispatch.

FAQ

Q1: What is the protective field range of the S30A-7011BA?
A: The protective field range is 7.0 m. The warning field reaches 49 m radially.

Q2: Does this scanner have local OSSD outputs?
A: Yes. It provides one OSSD pair (PNP, 250 mA) and one warning field output (PNP, 100 mA).

Q3: What safety ratings does the S30A-7011BA meet?
A: It meets Type 3, SIL 2, SILCL 2, and PL d / Category 3 standards.

Q4: Is the system plug included with the scanner?
A: No. The system plug is ordered separately, such as SX0A-A0000B with cable gland or M12 connectors.

Q5: Can the S30A-7011BA work outdoors?
A: It has IP65 protection. However, avoid direct sunlight and heavy rain for best performance.
