Product Introduction

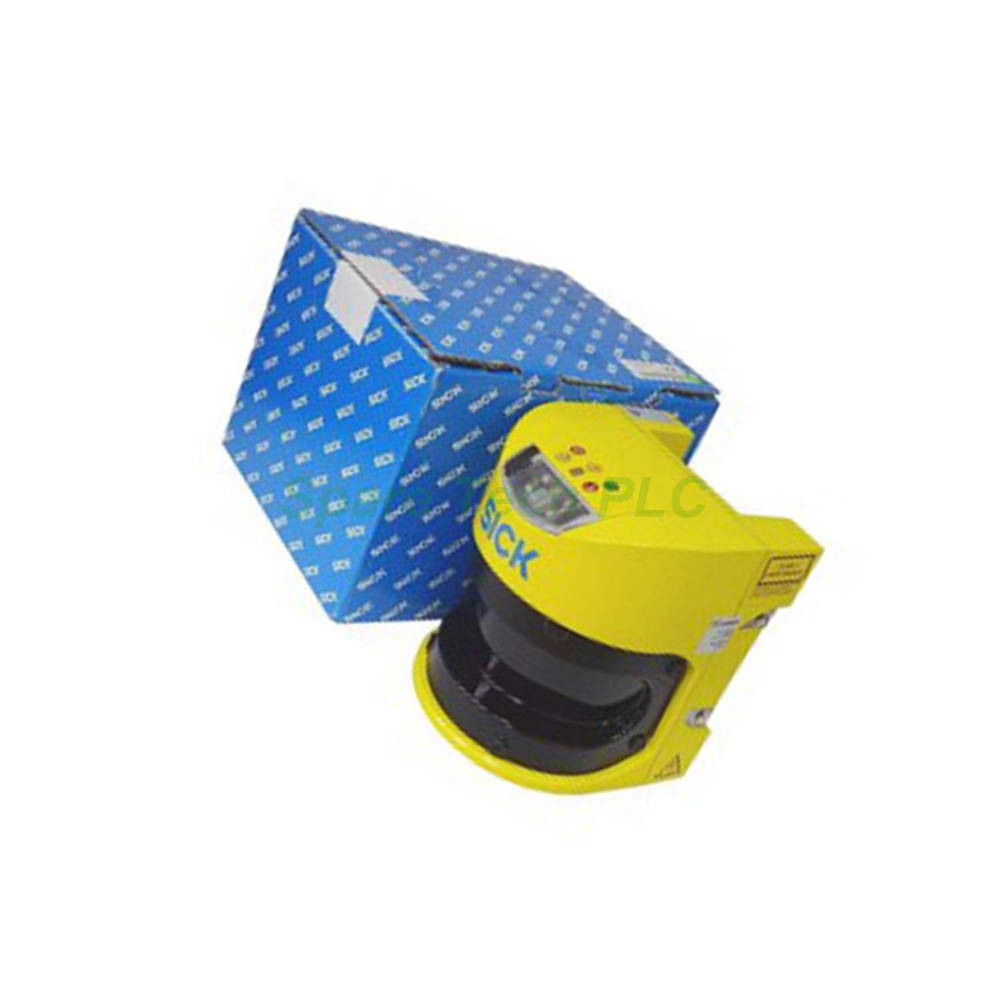

The SICK S30A-6011EA belongs to the S3000 Remote (Medium Range) family. This safety laser scanner uses 2D LiDAR time-of-flight measurement. It provides a 5.5 m protective field and a 49 m radial warning field. The device works as a remote scanning unit managed over a safe EFI bus.
Technical Specifications
The S30A-6011EA scanner operates with a pulsed laser diode at 905 nm. This light source meets Class 1 eye-safe requirements per IEC 60825-1:2014. The average optical power stays below 1 mW. Furthermore, the scanning angle reaches 190° with 0.25° or 0.5° angular resolution.
Object resolution is configurable across five settings: 30 mm, 40 mm, 50 mm, 70 mm, and 150 mm. The response time is ≤ 60 ms and can be adjusted from 60 ms to 120 ms via multiple sampling rates. Additionally, the systematic measurement error is typically ± 35 mm.
Safety integrity meets Type 3 per IEC 61496-1 and -3. It also achieves SIL 2 per IEC 61508 and SILCL 2 per EN 62061. The performance level is PL d / Category 3 per EN ISO 13849-1.
Interface and Electrical Parameters
The S30A-6011EA uses safe EFI device communication as its fieldbus interface. It provides no local OSSD outputs. Instead, a host scanner or EFI gateway manages all safety signals.
Supply voltage is DC 24 V with a range of 16.8 V to 28.8 V. This device requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads. The electrical connection uses a system plug with EFI bus connection.
Mechanical and Environmental Data
The housing uses aluminum die-cast with a polycarbonate optical hood. Dimensions are 155 mm x 185 mm x 160 mm. The device weighs approximately 3.3 kg. It operates in temperatures from -10 °C to +50 °C and stores from -20 °C to +70 °C. The enclosure protection rating is IP65 per EN 60529.
Installation Guide
First, mount the scanner securely on a stable bracket. Ensure the scanning plane aligns with the protected area. Next, connect the system plug to the EFI bus network. Link the device to a Flexi Soft safety controller or a host scanner.
Then, configure the field sets and monitoring cases through the host device. Centralized configuration and diagnostics flow over the EFI bus. Finally, verify the protective field range and response time before commissioning.
Packaging List
1x SICK S30A-6011EA Safety Laser Scanner
1x System Plug with EFI Bus Connection
1x Mounting Bracket Kit
1x Quick Start Guide
1x Protective Optical Hood Cover
Shipping
Fedex, UPS, DHL
FAQ
Q1: What is the protective field range of the S30A-6011EA?
A: The protective field range is 5.5 m. The warning field extends to 49 m radially.
Q2: Does this scanner have local OSSD outputs?
A: No. It has no local OSSD outputs. A host scanner or EFI gateway manages all safety signals.
Q3: Which communication interface does this model use?
A: It uses safe EFI device communication. This allows integration with a Flexi Soft safety controller or host scanner.
Q4: What safety integrity level does the S30A-6011EA achieve?
A: It meets Type 3, SIL 2, SILCL 2, and PL d / Category 3 standards.
Q5: What is the ambient temperature range for operation?
A: The operating range is -10 °C to +50 °C. Storage range is -20 °C to +70 °C.
