SICK S30A-7111CL LiDAR Sensor PROFINET

Product Introduction

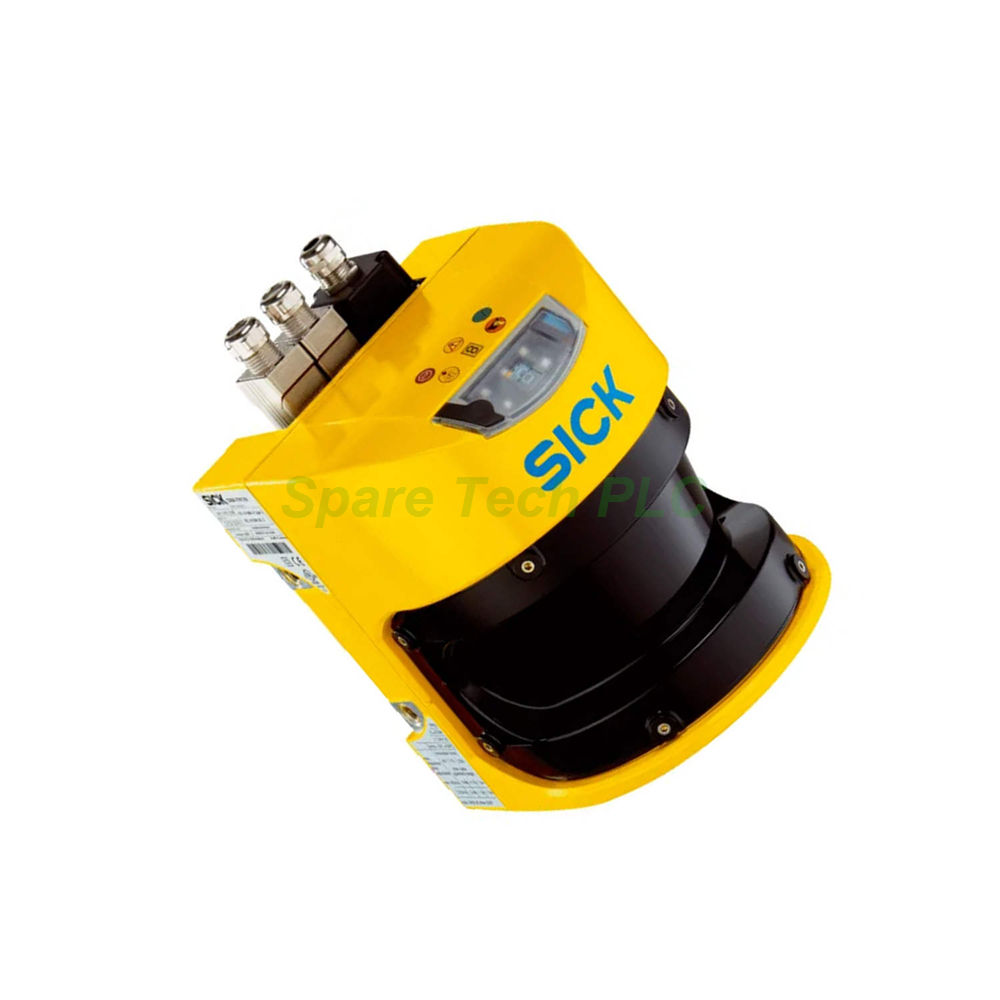

The SICK S30A-7111CL belongs to the S3000 PROFINET IO Advanced family. This safety laser scanner uses 2D LiDAR time-of-flight measurement. It provides a 7 m protective field and a 49 m warning field. The device works as a sensor head without a system plug.

Technical Specifications

The S30A-7111CL scanner reaches a distance measuring range of 49 m. Its warning field covers 49 m, or 20 m at 20 % reflectivity. The scanning angle spans 190° with 0.25° or 0.5° angular resolution. Resolution settings include 30 mm, 40 mm, 50 mm, 70 mm, and 150 mm.

This model monitors two protective fields at the same time. Furthermore, it supports dual field sets across four field sets and eight fields. Four monitoring cases enable flexible switching during operation.

The response time is 60 ms. The protective field supplement measures 100 mm. Multiple samplings range from 2 to 16 and remain configurable. Additionally, the automatic reset delay adjusts from 120 ms to 4,920 ms.

Safety and Network Interface

Safety integrity meets Type 3 per IEC 61496. It also achieves SIL 2 per IEC 61508 and Category 3 per EN ISO 13849. The performance level is PL d per EN ISO 13849. The PFHD value is 8.0 x 10⁻⁸ per hour, and the mission time reaches 20 years.

The S30A-7111CL has no local inputs or outputs. Therefore, it operates only in a network with a corresponding controller. PROFINET IO handles all safety communication. In the event of a fault, the safety-related data becomes logic 0.

Mechanical and Environmental Data

The housing uses aluminum die-cast with a polycarbonate optical hood. Dimensions are 155 mm x 185 mm x 160 mm. The device weighs approximately 3.3 kg. It operates indoors in temperatures from -10 °C to +50 °C. The enclosure protection rating is IP65 per EN 60529.

Installation Guide

First, mount the scanner head securely on a stable bracket. Ensure the scanning plane aligns with the protected area. Next, connect the device to the PROFINET IO network through a compatible system plug.

Then, configure the field sets and monitoring cases in Siemens TIA Portal. Set the resolution, multiple samplings, and reset delay to match your application. Finally, verify the protective field range and response time before commissioning.

Packaging List

• 1x SICK S30A-7111CL Safety Laser Scanner Head

• 1x Mounting Bracket Kit

• 1x Quick Start Guide

• 1x Protective Optical Hood Cover

Shipping
Fedex, UPS, DHL

FAQ

Q1: What is the protective field range of the S30A-7111CL?
A: The protective field range is 7 m. The warning field extends to 49 m, or 20 m at 20 % reflectivity.

Q2: Does this scanner include local inputs or outputs?
A: No. It has no local inputs or outputs. It operates only in a network with a corresponding controller.

Q3: Which communication protocol does this model use?
A: It uses PROFINET IO for safety communication. The device works as a sensor head without a system plug.

Q4: How many field sets and monitoring cases does it support?
A: It supports 4 field sets, 8 fields, and 4 monitoring cases. Dual field sets allow 2 simultaneous protective fields.

Q5: What safety integrity level does the S30A-7111CL achieve?
A: It meets Type 3, SIL 2, Category 3, and PL d standards.
