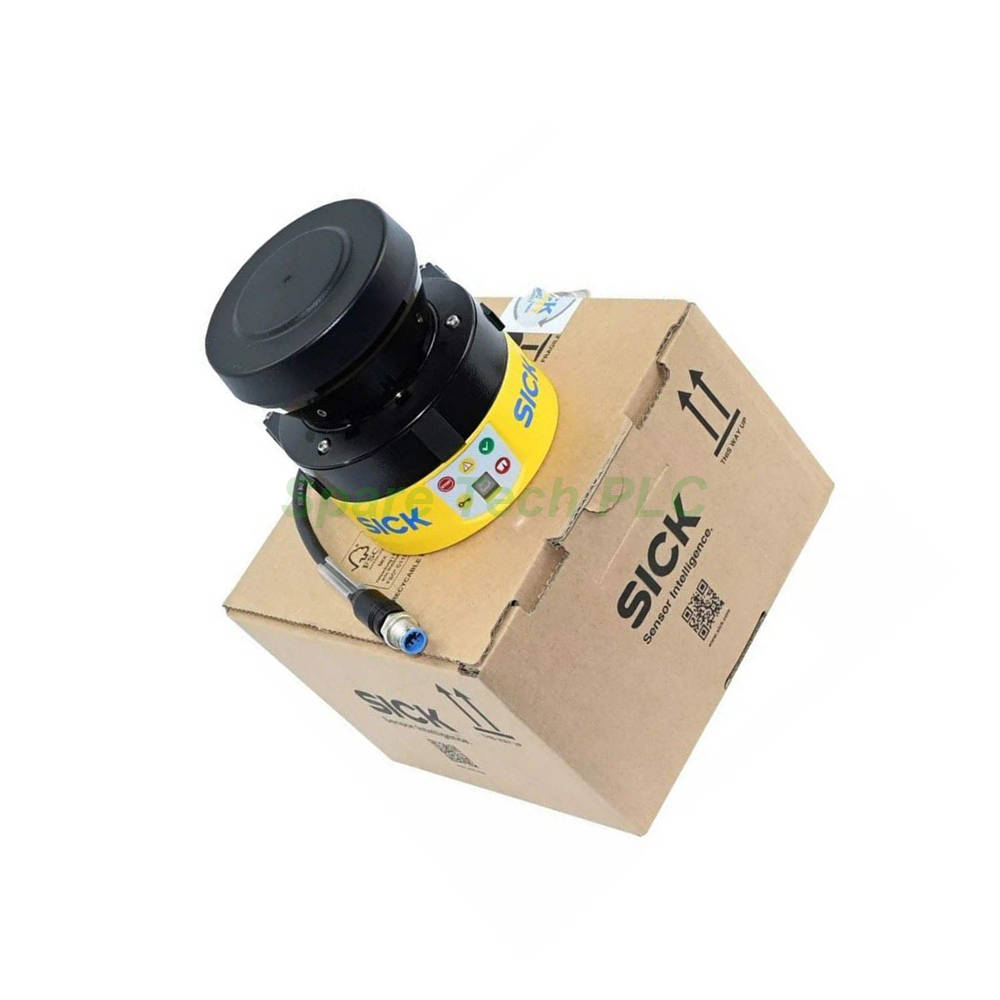

SICK S32B-3011EA Safety Laser Scanner

SICK S32B-3011EA S300 Mini Remote Scanner

Product Introduction

The SICK S32B-3011EA belongs to the S300 Mini Remote sub product family. This safety laser scanner works only in an EFI system network. For instance, it pairs with a Flexi Soft safety controller. It also works with an additional S300 or S3000 safety laser scanner. Therefore, it fits distributed safety architectures.

The S32B-3011EA suits indoor applications. Specifically, its protective field range is 3 m. Meanwhile, the warning field range reaches 8 m at 15 % reflectivity. Additionally, the distance measuring range extends to 30 m. The scanning angle covers 270°. Its angular resolution is 0.5°. Moreover, users can configure the resolution to 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. The response time is 80 ms. Besides, the protective field supplement is 100 mm.

This SICK S32B-3011EA supports triple field sets. It provides 16 field sets and 48 fields total. Furthermore, it handles 32 monitoring cases. The device supports multiple sampling, monitoring case switching, and static protective field switching. It also enables dynamic protective field switching and contour as a reference. However, it does not output measured data.

Safety and Functional Parameters

First, the device uses safe SICK device communication via EFI. The number of multiple samplings ranges from 2 to 16 and is configurable. Next, the delay of automatic reset ranges from 2 s to 60 s and is configurable. Multiple sampling is available. Moreover, monitoring case switching is supported.

Static protective field switching is present. Dynamic protective field switching is also available. Contour as a reference is enabled. Meanwhile, measured data output is not available. As a result, the scanner relies on the EFI network for data exchange. Therefore, it requires a compatible safety controller for full operation.

Interface and Electrical Specifications

The S32B-3011EA uses a cable of 250 mm with a male M12 7-pin connector. Its operating voltage is 24 V. The operating voltage range spans 16.8 V to 30 V. Additionally, the output type includes 2 PNP semiconductors. These outputs are short-circuit protected and cross-circuit monitored. Furthermore, communication runs through the EFI system network. As a result, the scanner integrates tightly with SICK safety controllers.

Mechanical and Environmental Parameters

The dimensions are 102 mm x 116 mm x 105 mm (W x H x D). The housing material is aluminum die cast. The housing color is RAL 1021 (yellow) and RAL 9005 (black). The optics cover material is polycarbonate. Its surface finish includes an outside scratch-resistant coating. The weight is 0.8 kg without connecting cables. The enclosure rating is IP65. The measuring range reaches 19 m.

Installation Guide

First, confirm that your system includes a Flexi Soft safety controller. Next, mount the S32B-3011EA at the required indoor position. Then, connect the 250 mm cable with the male M12 7-pin connector. Meanwhile, wire the operating voltage within 16.8 V to 30 V.

After that, link the scanner to the EFI system network. Furthermore, configure the protective field and warning field in the software. Additionally, set the resolution among the five available options. Besides, define the 32 monitoring cases for your layout. Finally, verify the response time and protective field supplement.

Packaging List

• 1x SICK S32B-3011EA Safety Laser Scanner

• 1x 250 mm Cable with M12 7-Pin Male Connector

• 1x Mounting Kit

• 1x Quick Start Guide

Shipping Methods

We ship via Fedex, UPS, and DHL. Therefore, you can choose the fastest option for your location.

FAQ

Q1: What is the protective field range of the S32B-3011EA?
A: The protective field range is 3 m. The warning field range reaches 8 m at 15 % reflectivity.

Q2: Can this scanner work as a standalone device?
A: No. The SICK S32B-3011EA works only in an EFI system network. It needs a Flexi Soft safety controller or an additional S300 or S3000 scanner.

Q3: How many field sets and monitoring cases does it support?
A: The S32B-3011EA supports 16 field sets with 48 fields total. It also handles 32 monitoring cases.

Q4: What is the scanning angle and response time?
A: The scanning angle is 270°. The response time is 80 ms. The angular resolution is 0.5°.

Q5: What is the enclosure rating and connector type?
A: The enclosure rating is IP65. The connection uses a 250 mm cable with a male M12 7-pin connector.
