SICK LMS511-22100 Heavy Duty Laser Scanner

SICK LMS511-22100 Outdoor Laser Sensor

Product Introduction

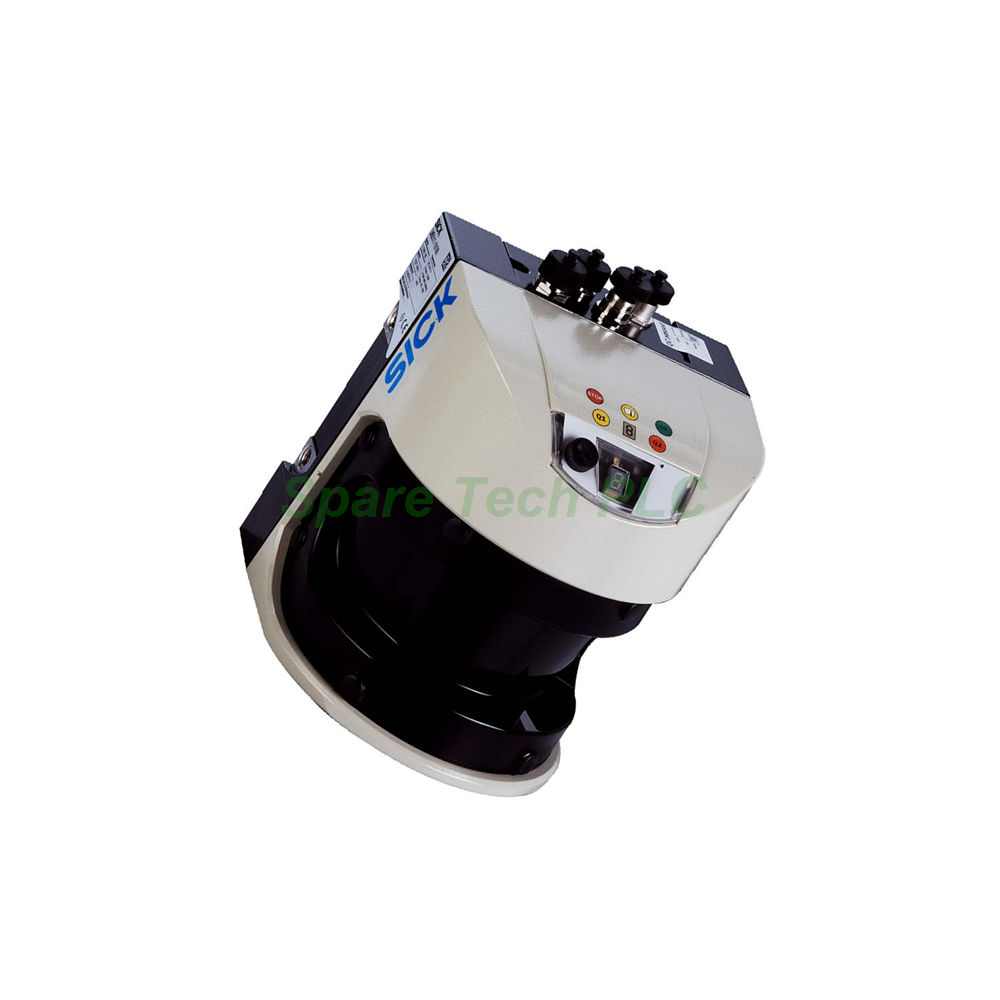

The SICK LMS511-22100 belongs to the LMS511 Heavy Duty family. This laser measurement sensor suits both outdoor and indoor applications. Specifically, it uses an infrared light source at 905 nm ± 10 nm. Furthermore, it holds Laser Class 1 certification under EN/IEC 60825-1:2014. Therefore, it ensures safe operation in industrial settings. The LMS511-22100 provides a horizontal aperture angle of 190°. Its scanning frequency reaches up to 100 Hz. Additionally, the angular resolution is configurable from 0.042° to 1°. The working range spans 0.2 m to 80 m. Meanwhile, the scanning range at 10% remission factor is 26 m. Measurement accuracy is ± 12 mm. Besides, the device evaluates up to 5 echoes. This SICK LMS511-22100 includes integrated heating for cold environments. As a result, it performs reliably in harsh weather conditions.

Interface and Electrical Specifications

The LMS511-22100 provides an Ethernet interface with TCP/IP and UDP/IP. It supports host and AUX functions plus NTP. The data transmission rate is 10/100 MBit/s. Additionally, a serial interface supports RS-232 and RS-422. It also serves host and AUX functions. The serial rate ranges from 9.6 kBaud to 500 kBaud. A CAN interface extends outputs. Its data rate is 20 kBit/s, 500 kBit/s, or 1 MBit/s with synchronization. Moreover, a Mini-USB service interface is present. The device includes 4 digital inputs. These support encoder (HTL) and synchronization functions. Furthermore, 6 digital outputs are available. Five LEDs and a 7-segment display provide optical indicators. Parameter storage is integrated into the system plug with cloning parameter memory. The connection type uses 4 x M12 round connectors in stainless steel. The supply voltage is 24 V DC ± 20 %. Power consumption is 22 W, with an additional 55 W for heating. The SICK LMS511-22100 has protection class III per IEC 61140:2016-11.

Mechanical and Environmental Parameters

The housing material is AlSi12. The housing color is gray (RAL 7032). The window material is polycarbonate with a scratch-resistant coating. The enclosure rating is IP65 and IP67 per EN 60529. The weight is 3.7 kg. Dimensions are 160 mm x 155 mm x 185 mm (L x W x H). The MTBF exceeds 100 years. The MTTFD also exceeds 100 years. The ambient operating temperature ranges from –40 °C to +60 °C. Storage temperature ranges from –40 °C to +70 °C. Ambient light immunity is 70,000 lx. The object remission range is 2 % to > 1,000 % with reflectors. Electromagnetic compatibility meets IEC 61000-6-3:2020 for emitted radiation. It also meets IEC 61000-6-2:2016 for immunity. Vibration resistance covers 10 Hz to 150 Hz with 0.35 mm amplitude to 5 g over 20 cycles. Shock resistance is 15 g at 11 ms with 6 single shocks per axis. It also handles 10 g at 16 ms with 1,000 continuous shocks per axis. Impact resistance meets IK05, IK06, and IK07 per DIN EN 50102:09-1997.

Installation Guide

First, mount the LMS511-22100 on a stable bracket outdoors. Next, connect the 4 x M12 stainless steel connectors. Then, wire the supply voltage within 24 V DC ± 20 %. Meanwhile, attach the Ethernet cable for configuration and data output. After that, use the serial or USB interface for parameter setup. Furthermore, configure the 10 field sets and 10 simultaneous evaluation cases. Additionally, apply echo, fog, particle, average, and glare filters as needed. Besides, enable the integrated heating for cold weather operation. Finally, verify the scanning range and angular resolution for your application.

Packaging List

• 1x SICK LMS511-22100 Laser Measurement Sensor

• 1x System Plug with Parameter Memory

• 1x Mounting Kit

• 1x Quick Start Guide

Shipping Methods

We ship via Fedex, UPS, and DHL. Therefore, you can choose the fastest option for your location.

FAQ

Q1: What is the working range of the LMS511-22100?
A: The working range is 0.2 m to 80 m. At 10% remission factor, the scanning range is 26 m.

Q2: Which interfaces does this sensor support?
A: The SICK LMS511-22100 supports Ethernet (TCP/IP, UDP/IP), RS-232, RS-422, CAN, and Mini-USB. It also has 4 digital inputs and 6 digital outputs.

Q3: What is the enclosure rating and operating temperature?
A: The enclosure rating is IP65 and IP67 per EN 60529. Operating temperature ranges from –40 °C to +60 °C.

Q4: Does this device include heating for outdoor use?
A: Yes. The LMS511-22100 includes self-heating with additional integrated heating. Power consumption is 22 W plus 55 W for heating.

Q5: What is the measurement accuracy and scanning frequency?
A: Measurement accuracy is ± 12 mm. Scanning frequencies include 25 Hz, 35 Hz, 50 Hz, 75 Hz, and 100 Hz.
