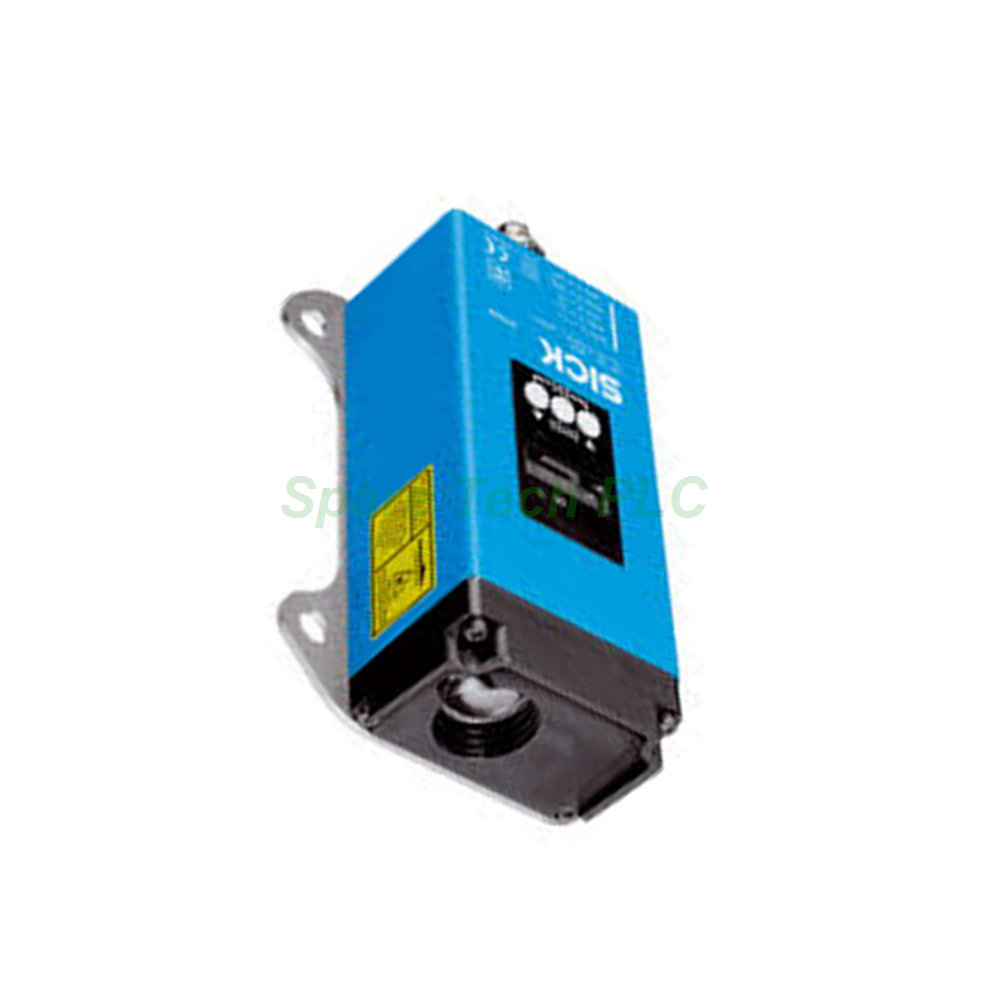

The SICK DL100-23AA2112 belongs to the Dx100 DL100 Hi series. This device uses phase shift optical time-of-flight laser distance measurement. Therefore, it provides reliable long-range positioning up to 300 m on Diamond Grade reflective tape. The sensor comes with a visible red laser diode at 658 nm. Meanwhile, its Class 2 laser classification ensures safe operation under IEC 60825-1:2014. Additionally, the DL100-23AA2112 supports a continuous internal measurement rate of 1 ms. This fast cycle time suits dynamic automated storage and retrieval systems. Furthermore, the unit tracks velocities up to 15 m/s and accelerations up to 15 m/s². As a result, it fits high-speed ASRS applications. The sensor also includes an integrated LC display for intuitive menu navigation. Besides, it supports an optical 3-axis alignment bracket for precise mounting. This SICK DL100-23AA2112 sensor offers continuous condition monitoring. Specifically, it tracks signal level attenuation, laser diode aging, and temperature changes.
First, the measuring range spans 0.15 m to 300 m on Diamond Grade reflective tape. The light source is a visible red laser diode at 658 nm. Its average optical power stays below 1 mW. The laser class is Class 2 per IEC 60825-1:2014 and EN 60825-1:2014. Next, the output time or measurement cycle is ≥ 1 ms. The internal measurement rate is 1 ms, though the fieldbus cycle may affect actual output. Repeatability ranges from 0.5 mm to 1 mm, typically 0.5 mm at 1 σ. Measurement accuracy is typically ± 2 mm to ± 3 mm. Moreover, the maximum tracking velocity reaches 15 m/s. The maximum acceleration is 15 m/s².
The DL100-23AA2112 provides a PROFINET IO fieldbus interface. This interface supports dual-port 100 Mbit/s, RT/IRT, LLDP, and MRP. Additionally, two push-pull digital outputs are available. These outputs are configurable as PNP or NPN, labeled B/Q, and rated ≤ 100 mA. A multifunctional input (MF) is also present. The supply voltage ranges from DC 18 V to 30 V. Reverse-polarity protection is included. Power consumption is typically 8 W to 10 W. For electrical connection, power uses a male M12 4-pin connector. PROFINET uses two female M12 4-pin D-coded connectors with SPEEDCON™.
The ambient operating temperature ranges from -20 °C to +55 °C. Storage temperature ranges from -40 °C to +75 °C. The enclosure protection rating is IP65 per EN 60529. Physical dimensions are 69.4 mm x 82.5 mm x 100.2 mm (W x H x D). The housing material is aluminum die-cast with an acrylic glass (PMMA) optical window. The device weight is approximately 800 g.
First, mount the SICK DL100-23AA2112 using the optical 3-axis alignment bracket. This bracket allows precise laser alignment. Next, connect the power cable to the male M12 4-pin connector. Then, attach the PROFINET cables to the two female M12 4-pin D-coded ports. Meanwhile, ensure the supply voltage stays within DC 18 V to 30 V. After that, configure the digital outputs as PNP or NPN based on your system needs. Furthermore, use the integrated LC display for menu navigation and parameter setup. Finally, verify the signal level and temperature readings through the condition monitoring function.
1x SICK DL100-23AA2112 Laser Distance Sensor
1x M12 Power Connector
2x M12 PROFINET Connectors
1x Optical 3-Axis Alignment Bracket
1x Quick Start Guide
We ship via Fedex, UPS, and DHL. Therefore, you can choose the fastest option for your location.
Q1: What is the maximum measuring range of the DL100-23AA2112?
A: The sensor measures up to 300 m on Diamond Grade reflective tape. For standard targets, the range is shorter.
Q2: Which communication protocol does this sensor support?
A: The SICK DL100-23AA2112 supports PROFINET IO with dual-port 100 Mbit/s, RT/IRT, LLDP, and MRP.
Q3: What is the measurement accuracy of this device?
A: Typical accuracy is ± 2 mm to ± 3 mm. Repeatability is 0.5 mm to 1 mm, typically 0.5 mm at 1 σ.
Q4: Can this sensor work in high-speed ASRS applications?
A: Yes. It tracks velocities up to 15 m/s and accelerations up to 15 m/s². The 1 ms internal cycle supports fast dynamics.
Q5: What is the enclosure protection rating and operating temperature?
A: The rating is IP65 per EN 60529. Operating temperature ranges from -20 °C to +55 °C.
