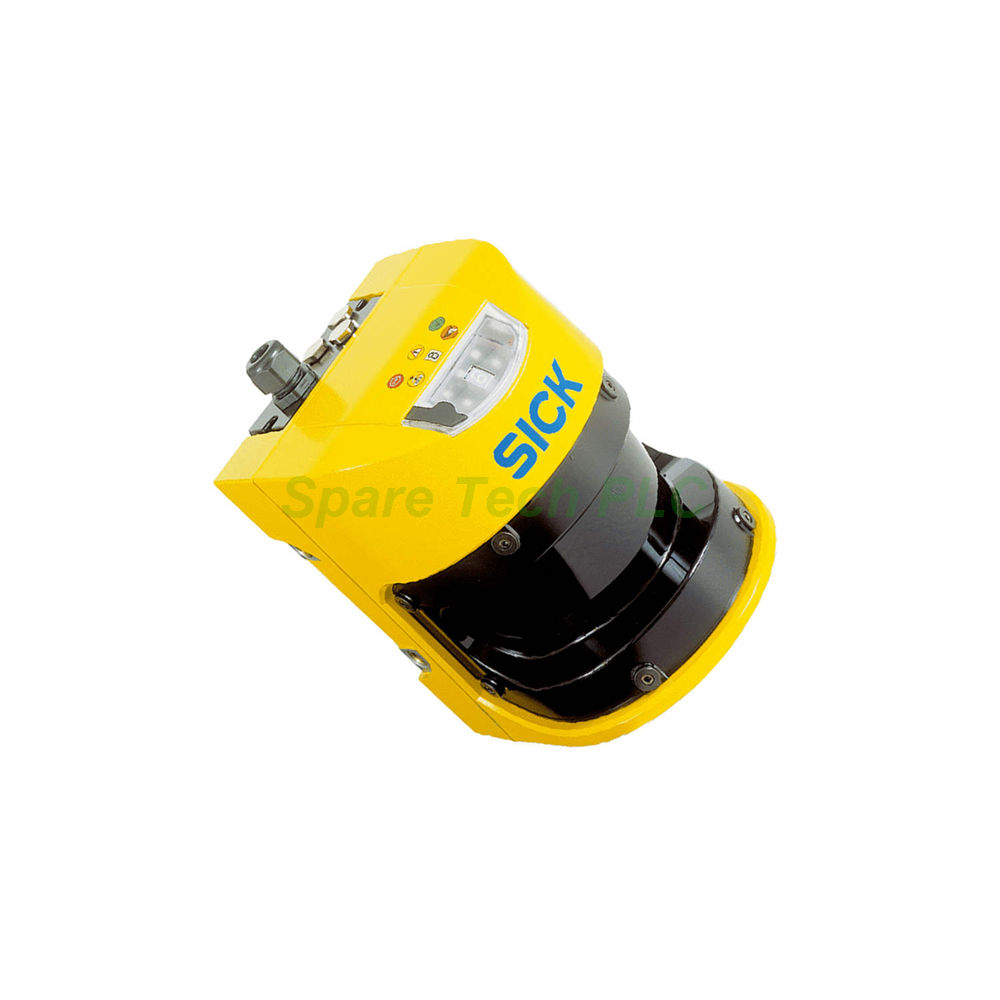

SICK S30B-2011CA Safety Laser Scanner

SICK S30B-2011CA S300 Advanced Scanner

Product Introduction

The SICK S30B-2011CA belongs to the S300 Advanced product family. This safety laser scanner protects hazardous areas in indoor environments. Specifically, it offers a protective field range of 2 m. Meanwhile, the warning field reaches 8 m at 15 % reflectivity. Additionally, the distance measuring range extends to 30 m. The device uses a pulsed laser diode at 905 nm. Furthermore, it carries Laser Class 1 certification under IEC 60825-1. Therefore, it poses no eye hazard during normal operation. The S30B-2011CA scanner covers a 270° scanning angle. Its angular resolution is 0.5°. Moreover, users can configure the resolution to 30 mm, 40 mm, 50 mm, or 70 mm. The response time is 80 ms. Besides, the protective field supplement is 100 mm. This SICK S30B-2011CA supports four monitoring cases. It also provides four field sets with twelve fields total. As a result, it adapts to complex safety layouts.

Safety-Related Parameters

First, the S30B-2011CA meets Type 3 requirements per IEC 61496. Next, it achieves Safety Integrity Level SIL 2 under IEC 61508. The category rating is Category 3 per EN ISO 13849. Furthermore, the performance level is PL d per EN ISO 13849. The PFHD value is 8.0 x 10-8 per hour. Meanwhile, the mission time TM is 20 years per EN ISO 13849. In the event of a fault, at least one OSSD enters the OFF state. Therefore, the safe state is maintained reliably.

Interface and Electrical Specifications

The SICK S30B-2011CA uses a system plug with or without a connecting cable. It provides five universal I/Os. For inputs, it includes one external device monitoring (EDM) input. Additionally, it has one reset/restart input. Two static control inputs are available. Moreover, five static control inputs with EFI are present. One standby input is also included. For outputs, the device offers one OSSD pair. Furthermore, three application diagnostic outputs are available. Configuration uses a PC with CDS (Configuration and Diagnostic Software). The configuration and diagnostics interface is RS-232 at 38.4 kBaud. Besides, a data interface RS-422 runs at ≤ 500 kBaud. Safe SICK device communication via EFI also runs at ≤ 500 kBaud. The maximum cable length is 50 m. The conductor cross section is 0.22 mm. The S30B-2011CA has protection class II per EN 50178 and EN 60950. Its supply voltage is 24 V DC, ranging from 16.8 V DC to 30 V DC. Power consumption is 0.33 A or 1.7 A. The OSSDs provide 2 x 250 mA. Application diagnostic outputs provide 3 x 100 mA.

Mechanical and Environmental Parameters

The dimensions are 102 mm x 152 mm x 106 mm (W x H x D). The weight is 1.2 kg. The housing material is aluminum die cast. The housing color is RAL 1021 (yellow). The optics cover material is polycarbonate. Its surface finish includes an outside scratch-resistant coating. The enclosure rating is IP65 per EN 60529. The ambient operating temperature ranges from –10 °C to +50 °C. Storage temperature ranges from –25 °C to +50 °C. Vibration resistance meets IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, and IEC 61496-3. It also meets Class 5M1 per IEC 60721-3-5. Shock resistance meets IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, and IEC 61496-3. Continuous shock ratings are 50 m/s² at 11 ms and 100 m/s² at 16 ms. The detectable remission factor ranges from 1.8 % to > 1,000 % with reflectors.

Installation Guide

First, select a mounting position that covers the hazardous area fully. Next, secure the S30B-2011CA using its aluminum die-cast housing. Then, connect the system plug to the device. Meanwhile, wire the OSSD outputs to your safety controller. After that, connect the RS-232 interface for configuration. Furthermore, use the CDS software to define field sets and monitoring cases. Additionally, configure the resolution and multiple samplings as needed. The multiple samplings range from 2 to 16. Besides, set the automatic reset delay from 2 s to 60 s. Finally, verify the protective field and warning field boundaries before operation.

Packaging List

• 1x SICK S30B-2011CA Safety Laser Scanner

• 1x System Plug

• 1x Mounting Kit

• 1x Quick Start Guide

Shipping Methods

We ship via Fedex, UPS, and DHL. Therefore, you can select the fastest option for your region.

FAQ

Q1: What is the protective field range of the S30B-2011CA?
A: The protective field range is 2 m. The warning field range reaches 8 m at 15 % reflectivity.

Q2: Which safety ratings does this scanner meet?
A: The SICK S30B-2011CA meets Type 3 per IEC 61496, SIL 2 per IEC 61508, Category 3 per EN ISO 13849, and PL d.

Q3: What is the scanning angle and response time?
A: The scanning angle is 270°. The response time is 80 ms. Angular resolution is 0.5°.

Q4: How many field sets and monitoring cases does the device support?
A: The S30B-2011CA supports 4 field sets and 4 monitoring cases. It provides 12 fields total with triple field sets.

Q5: What is the enclosure rating and operating temperature?
A: The enclosure rating is IP65 per EN 60529. Operating temperature ranges from –10 °C to +50 °C.
