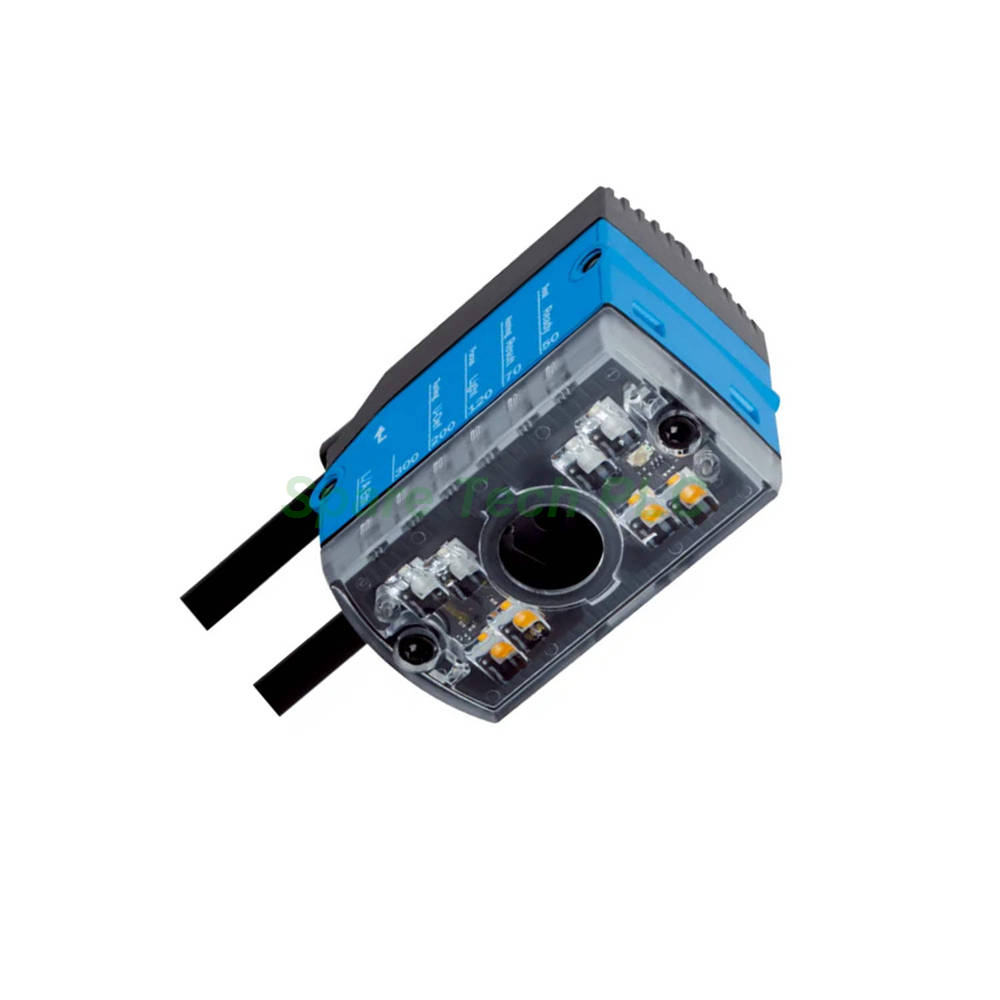

The V2D611D-MMSCE4 belongs to the Sick Lector61x series of image-based code readers. This complete device uses a 1.2MP monochrome CMOS sensor. Furthermore, it offers manually adjustable optical focus. The reader supports Ethernet TCP/IP, PROFINET, EtherNet/IP, serial, CAN, and CANopen. Therefore, it fits packaging, electronics, and logistics identification tasks.
The Sick V2D611D-MMSCE4 reader delivers flexible code identification. Its sensor resolution reaches 1,280px x 960px. Additionally, code resolution goes down to 0.02mm. The scanning frequency is 40Hz. The working range spans 50mm to 300mm. The lens focal length is 12mm. Exposure time is ≥60µs. Meanwhile, automated parameter switching is supported.
This image-based code reader handles 1D, 2D, stacked, and direct-marked codes. For instance, it reads GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, Code 39, Code 128, Codabar, and Code 93. Moreover, it supports Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, and MaxiCode. Code qualification follows ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, and ISO/IEC 18004. Specifically, one reading interval covers up to 50 codes.
Key parameters:
Working range: 50 mm ... 300 mm
Sensor resolution: 1,280 px x 960 px (1.2 MP)
Code resolution: 0.02 mm
Supply voltage: 12 V DC ... 24 V DC, ± 15 %
Scanning frequency: 40 Hz
The housing uses zinc diecast material. Its color is light blue (RAL 5012). Besides, the window material is plastic. The enclosure rating reaches IP54 per EN 60529. Protection class is III. Electrical safety follows EN 62368-1. The weight is 165g. Dimensions measure 50mm x 40.3mm x 29.6mm.
Power consumption is typically 3.5W. Output current stays at or below 50mA. Ambient operating temperature ranges from 0°C to +40°C. Storage temperature spans –20°C to +70°C. Permissible relative humidity reaches 90%, non-condensing. Vibration resistance follows EN 60068-2-6:2008-02. Shock resistance follows EN 60068-2-27:2009-05. EMC complies with EN 61000-6-3 and EN 61000-6-2.
The V2D611D-MMSCE4 offers multiple communication options. Ethernet TCP/IP handles data output and FTP image transmission. PROFINET works as Single Port. EtherNet/IP runs at 10/100 MBit/s. Serial RS-232 spans 0.3 kBaud to 115.2 kBaud. CAN and CANopen run from 20 kbit/s to 1 Mbit/s. Two digital inputs and three digital outputs are available. Reading pulse triggers come from digital inputs, serial interface, Ethernet, CAN, auto pulse, or presentation mode.
Nine LEDs provide status displays and alignment aids. One pushbutton handles select and start/stop functions. Configuration uses SOPAS ET software or the integrated web server. Image and data storage work through external FTP. Encoder frequency reaches a maximum of 300Hz. External illumination control works via digital output with up to 24V trigger.
First, mount the reader at the correct working distance. Keep the range between 50mm and 300mm. Next, adjust the manual focus for your code size. Then, connect the 12–24VDC supply. Check the 9 LEDs for status and alignment.
Furthermore, align the reader using the red alignment aid. The green and red feedback spots confirm read results. Besides, configure parameters through SOPAS ET or the web server. For PROFINET, select Single Port mode. Finally, test code reading with your actual labels. Verify exposure time and illumination settings match your line speed.
1x Sick V2D611D-MMSCE4 Image-Based Code Reader
1x Mounting bracket kit
1x Connector cable
1x Quick start guide
Q1: What is the working range of the V2D611D-MMSCE4?
A: The working range spans 50mm to 300mm. This suits close-range identification.
Q2: Which code types does this reader support?
A: It reads 1D, 2D, stacked, and direct-marked codes, including Data Matrix and QR.
Q3: How do I configure the Lector61x reader?
A: Use SOPAS ET software or the integrated web server interface.
Q4: What is the sensor resolution?
A: The CMOS sensor delivers 1,280px x 960px, or 1.2 megapixels.
Q5: What is the enclosure rating?
A: The enclosure rating is IP54. It resists dust and water splashes.
| Brand Name | |
| Model No. | V2D611D-MMSCE4 |
| Product Type | Image-Based Code Reader |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
