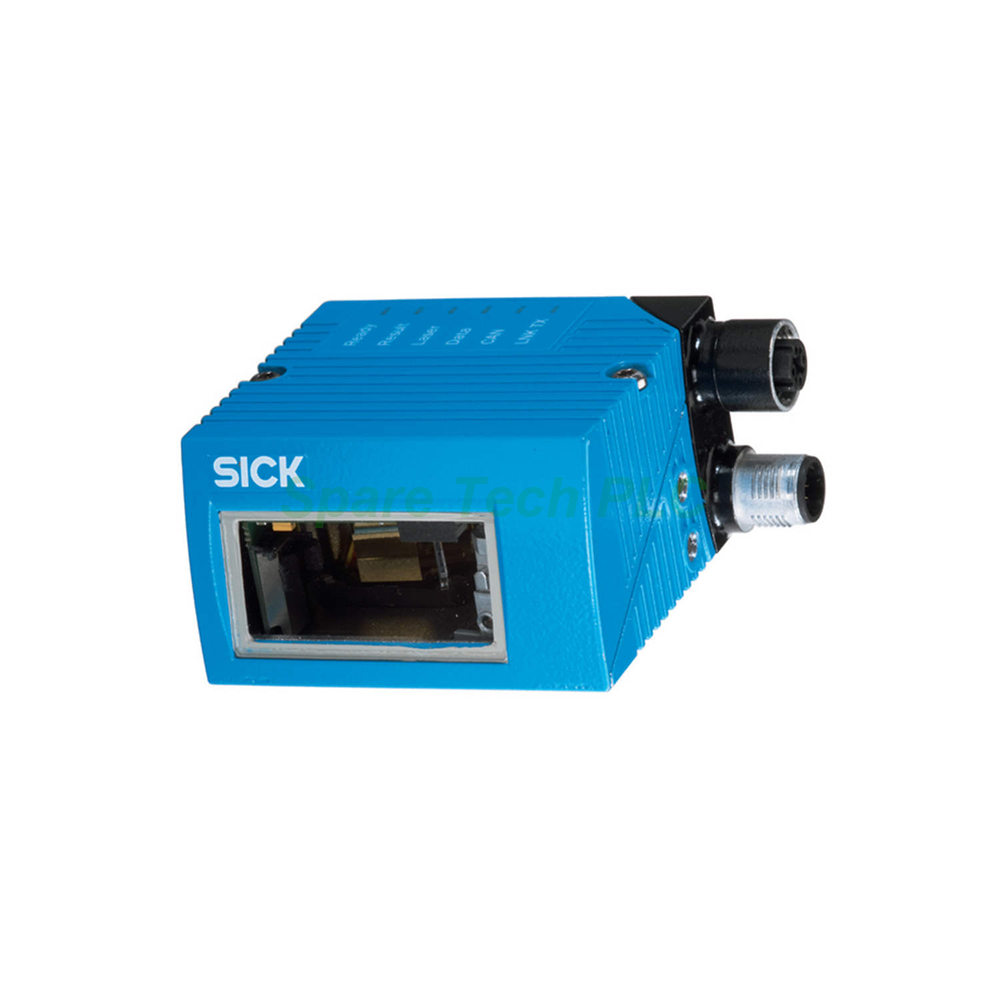

SICK CLV620-0120 Fixed Mount Barcode Scanner

SICK CLV620-0120 Ethernet Barcode Reader

Product Introduction

The SICK CLV620-0120 belongs to the CLV620 Mid Range series. This fixed mount barcode scanner reads 1D codes in industrial settings. Specifically, it uses a visible red laser light spot at 655 nm. Furthermore, it holds Laser Class 2 certification under EN 60825-1:2014+A11:2021. Therefore, it operates safely in production environments.

The CLV620-0120 provides a front reading field with fixed optical focus. Its aperture angle is ≤ 50°. Additionally, the reading distance spans 60 mm to 365 mm. The scanning frequency ranges from 400 Hz to 1,200 Hz. Meanwhile, code resolution covers 0.2 mm to 1 mm.

This SICK CLV620-0120 supports all current 1D code types. For instance, it reads Code 39, Code 128, Code 93, Codabar, and GS1-128. Besides, it handles UPC, GTIN, EAN, Interleaved 2 of 5, and Pharmacode. As a result, it fits many labeling and sorting applications.

Optical and Performance Parameters

First, the sensor type is a line scanner with fixed focus. The light source is a visible red laser at 655 nm. Next, the laser class is 2 per 21 CFR 1040.10 and EN 60825-1:2014+A11:2021. The aperture angle stays ≤ 50°. Furthermore, the reading distance is 60 mm to 365 mm.

The scanning frequency ranges from 400 Hz to 1,200 Hz. Code resolution spans 0.2 mm to 1 mm. The device reads 1D code structures. Bar code types include Code 39, Code 128, Code 93, and Codabar. Moreover, it supports GS1-128 / EAN 128, UPC / GTIN / EAN, and Interleaved 2 of 5. It also reads Pharmacode, GS1 DataBar, Telepen, and MSI/Plessey.

The code printing process is label with printed codes. Print ratio ranges from 2:1 to 3:1. The number of codes per scan is 1 to 20 with the standard decoder. It is 1 to 6 with SMART620. The number of codes per reading interval is 1 to 50 with auto-discriminating. The number of characters per reading interval is 1,500. It is 500 for the multiplexer function in CAN operation. Multiple readings range from 1 to 99. Bar code print contrast (PCS) is ≥ 60 %.

Interface and Electrical Specifications

The CLV620-0120 provides an Ethernet interface with TCP/IP. It serves as a data interface for read result output and as a service interface. The data transmission rate is 10/100 MBit/s. Additionally, PROFINET is supported as a single port. Dual port is optional via the external connection module CDF600-2. EtherNet/IP™ and EtherCAT® are also available. Fieldbus integration for EtherCAT is optional over the external fieldbus module CDF600.

A serial interface supports RS-232, RS-422, and RS-485. Its data rate ranges from 2,400 Baud to 115.2 kBaud. AUX runs at 57.6 kBaud on RS-232. Moreover, CAN supports the SICK CAN sensor network CSN. It works as a CAN controller or CAN device with multiplexer and server functions. The CAN data rate ranges from 20 kbit/s to 1 Mbit/s. CANopen is also supported at the same rate. PROFIBUS DP is optional over the external fieldbus module CDF600-2.

The device includes 3 digital inputs. Two additional inputs are available via the optional parameter storage CMC600 in CDB620 or CDM420. Furthermore, 2 digital outputs are available via the same optional CMC600. Reading pulse options include digital inputs, non-powered, serial interface, auto pulse, and CAN. Six LEDs indicate Ready, Result, laser, Data, CAN, and LNK TX status. A beeper or buzzer can be switched off or allocated as a result indication. Configuration uses SOPAS ET software.

The connection type is 2 x M12 cylindrical connectors on a swivel connector. These include a 12-pin male connector and a 4-pin female connector. The supply voltage ranges from 10 V DC to 30 V DC. Power consumption is 4.5 W.

Mechanical and Environmental Parameters

The housing material is aluminum die cast. The housing color is light blue (RAL 5012). The window material is glass. The enclosure rating is IP65 per DIN 40 050. Protection class is III per VDE 0106/IEC 1010-1. The weight is 205 g without the connecting cable. Dimensions are 61 mm x 66 mm x 38 mm (L x W x H).

The MTBF is 100,000 h. The MTTF for the laser diode is 40,000 h. The ambient operating temperature ranges from 0 °C to +40 °C. Storage temperature ranges from –20 °C to +70 °C. Permissible relative humidity is 90 %, non-condensing. Ambient light immunity is 2,000 lx on the barcode. Electromagnetic compatibility meets EN 61000-6-3 (2001-10) and EN 61000-6-2:2005. Vibration resistance meets EN 60068-2-6 (1995). Shock resistance meets EN 60068-2-27 (1993).

Installation Guide

First, mount the CLV620-0120 at a fixed position facing the code surface. Next, adjust the reading distance between 60 mm and 365 mm. Then, connect the 12-pin male and 4-pin female M12 connectors. Meanwhile, wire the supply voltage within 10 V DC to 30 V DC.

After that, attach the Ethernet cable for data output and configuration. Furthermore, use SOPAS ET software to set the code types and reading parameters. Additionally, configure the digital inputs and outputs if needed. Besides, set the reading pulse source for your trigger method. Finally, verify the print contrast and ambient light conditions.
