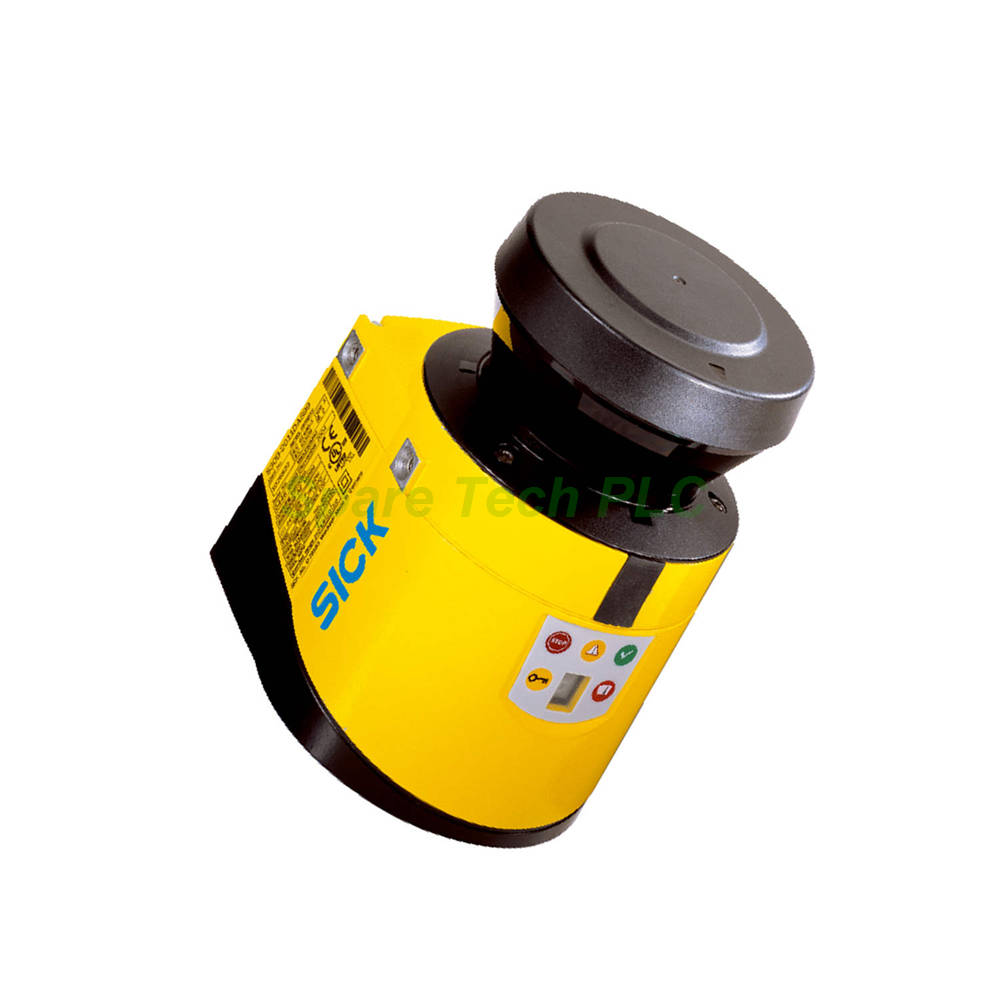

SICK S30A-4011DA Safety Laser Scanner

SICK S30A-4011DA S3000 Professional Scanner

Product Introduction

The SICK S30A-4011DA belongs to the S3000 Professional short range family. This safety laser scanner uses 2D LiDAR optoelectronic pulsed laser scanning. Specifically, it applies time-of-flight measurement for reliable detection. Therefore, it suits both mobile and stationary safeguarding tasks.

The S30A-4011DA provides a protective field range of 4.0 m. Meanwhile, the warning field reaches 49 m radially. Additionally, its scanning angle covers 190°. The angular resolution is 0.25° or 0.5°. Moreover, users can configure the object resolution to 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. The response time is ≤ 60 ms and configurable from 60 ms to 120 ms. Besides, the systematic measurement error is typically ± 35 mm.

This SICK S30A-4011DA includes 8 field sets with up to 16 fields total. Furthermore, it supports 16 monitoring cases. The device also provides integrated incremental encoder inputs. As a result, it enables velocity-dependent adaptive protective field switching on AGVs. It fits automated guided vehicles, automated forklifts, and mobile robotics.

Safety-Related Parameters

First, the S30A-4011DA meets Type 3 per IEC 61496-1 and IEC 61496-3. Next, it achieves Safety Integrity Level SIL 2 under IEC 61508. It also meets SILCL 2 per EN 62061. Furthermore, the performance level is PL d with Category 3 per EN ISO 13849-1. Therefore, it supports demanding safety functions in industrial environments.

Optical and Performance Parameters

The light source is a pulsed laser diode at 905 nm. Furthermore, it holds Laser Class 1 certification per IEC 60825-1:2014 and EN 60825-1:2014. The average optical power stays below 1 mW. Therefore, the device is eye-safe during operation. The scanning angle is 190°. Meanwhile, the angular resolution options are 0.25° and 0.5°. The response time is ≤ 60 ms. Additionally, it is configurable via the multiple sampling rate from 60 ms to 120 ms.

Interface and Electrical Specifications

The S30A-4011DA provides one OSSD pair as safety outputs. These outputs are PNP type and rated at 250 mA. Additionally, the device includes incremental encoder inputs for A/B phase signals. It also supports a safe EFI bus for device communication. The supply voltage is DC 24 V. The operating range spans 16.8 V to 28.8 V. Moreover, it requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads. The electrical connection uses a system plug with cable gland or M12 connectors.

Mechanical and Environmental Parameters

The dimensions are 155 mm x 185 mm x 160 mm (W x H x D). The housing material is aluminum die-cast. The optical hood uses polycarbonate (PC). The enclosure protection rating is IP65 per EN 60529. The device weight is approximately 3.3 kg. The ambient operating temperature ranges from -10 °C to +50 °C. Storage temperature ranges from -20 °C to +70 °C.

Installation Guide

First, select a mounting position that covers the hazardous area fully. Next, secure the S30A-4011DA using its aluminum die-cast housing. Then, connect the system plug with cable gland or M12 connectors. Meanwhile, wire the supply voltage within 16.8 V to 28.8 V.

After that, link the OSSD pair to your safety controller. Furthermore, connect the incremental encoder inputs for AGV speed sensing. Additionally, attach the safe EFI bus for device communication. Besides, configure the protective field and warning field in the software. Finally, define the 16 monitoring cases and verify the response time.

Packaging List

• 1x SICK S30A-4011DA Safety Laser Scanner

• 1x System Plug

• 1x Mounting Kit

• 1x Quick Start Guide

Shipping Methods

We ship via Fedex, UPS, and DHL. Therefore, you can choose the fastest option for your location.

FAQ

Q1: What is the protective field range of the S30A-4011DA?
A: The protective field range is 4.0 m. The warning field range reaches 49 m radially.

Q2: Which safety ratings does this scanner meet?
A: The SICK S30A-4011DA meets Type 3 per IEC 61496, SIL 2 per IEC 61508, SILCL 2 per EN 62061, and PL d with Category 3 per EN ISO 13849-1.

Q3: What is the scanning angle and response time?
A: The scanning angle is 190°. The response time is ≤ 60 ms and configurable from 60 ms to 120 ms. Angular resolution is 0.25° or 0.5°.

Q4: How many field sets and monitoring cases does it support?
A: The S30A-4011DA supports 8 field sets with up to 16 fields total. It also handles 16 monitoring cases.

Q5: What is the enclosure rating and operating temperature?
A: The enclosure rating is IP65 per EN 60529. Operating temperature ranges from -10 °C to +50 °C.
