SICK S30A-4111DP Safety Laser Scanner

Product Introduction

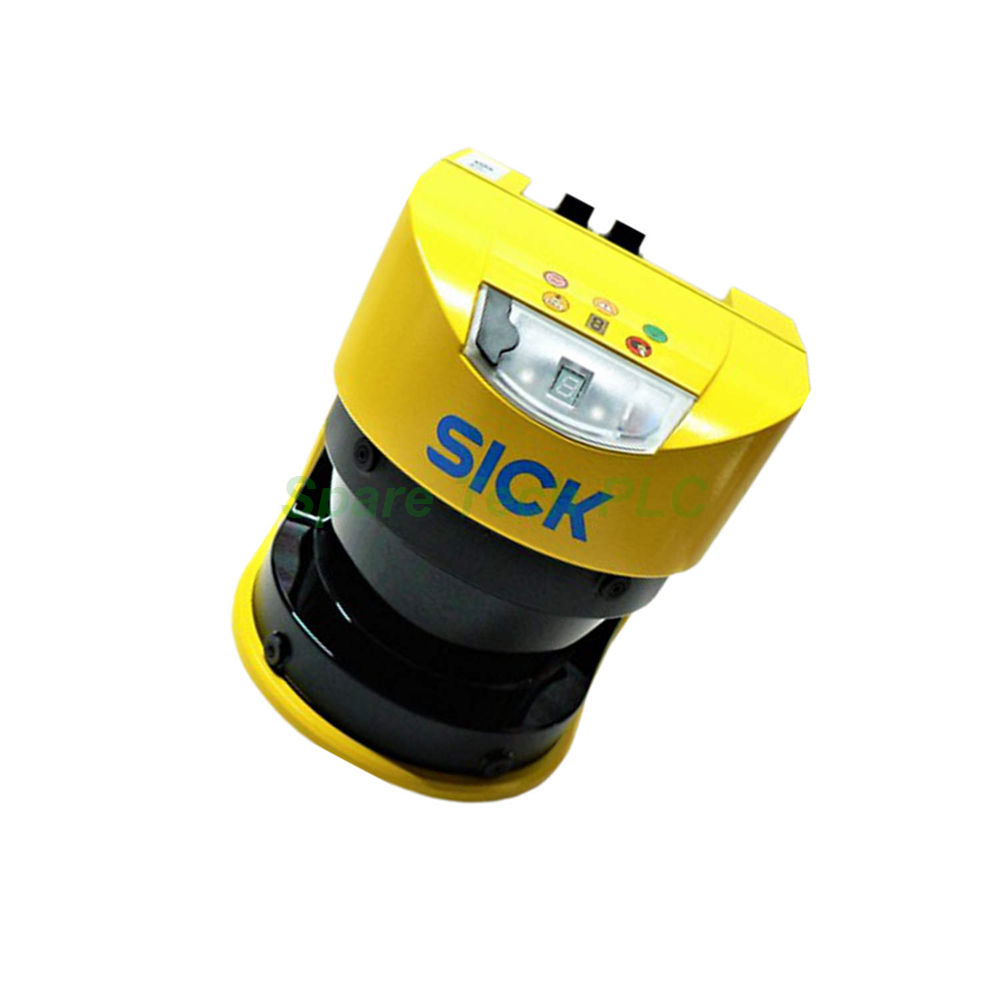

The SICK S30A-4111DP belongs to the S3000 PROFINET IO Advanced (Short Range) family. This safety laser scanner uses 2D LiDAR time-of-flight measurement. It provides a 4.0 m protective field and a 49 m radial warning field. The device integrates directly into PROFINET networks with PROFIsafe protocol.

Technical Specifications

The S30A-4111DP scanner operates with a pulsed laser diode at 905 nm. This light source meets Class 1 eye-safe requirements per IEC 60825-1:2014. The average optical power stays below 1 mW. Furthermore, the scanning angle reaches 190° with 0.25° or 0.5° angular resolution.

Object resolution is configurable across five settings: 30 mm, 40 mm, 50 mm, 70 mm, and 150 mm. The response time is ≤ 60 ms and can be adjusted from 60 ms to 120 ms via multiple sampling rates. Additionally, the systematic measurement error is typically ± 35 mm.

Safety integrity meets Type 3 per IEC 61496-1 and -3. It also achieves SIL 2 per IEC 61508 and SILCL 2 per EN 62061. The performance level is PL d / Category 3 per EN ISO 13849-1.

Interface and Electrical Parameters

The S30A-4111DP provides industrial Ethernet safety through PROFINET IO with PROFIsafe protocol. It features two RJ-45 Push-Pull copper ports. The system plug includes an integrated 2-port PROFINET switch.

Supply voltage is DC 24 V with a range of 16.8 V to 28.8 V. This device requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads.

Mechanical and Environmental Data

The housing uses aluminum die-cast with a polycarbonate optical hood. Dimensions are 155 mm x 185 mm x 160 mm. The device weighs approximately 3.3 kg. It operates in temperatures from -10 °C to +50 °C and stores from -20 °C to +70 °C. The enclosure protection rating is IP65 per EN 60529.

Installation Guide

First, mount the scanner securely on a stable bracket. Ensure the scanning plane aligns with the protected area. Next, connect the system plug to the PROFINET network. Use the two RJ-45 Push-Pull ports for network integration.

Then, configure the field sets and monitoring cases through Siemens TIA Portal. The device supports 4 field sets and 4 monitoring cases with remote switching over PROFIsafe. Finally, verify the protective field range and response time settings.

Packaging List

• 1x SICK S30A-4111DP Safety Laser Scanner

• 1x System Plug with Integrated PROFINET Switch

• 1x Mounting Bracket Kit

• 1x Quick Start Guide

• 1x Protective Optical Hood Cover

Shipping
Fedex, UPS, DHL

FAQ

Q1: What is the protective field range of the S30A-4111DP?
A: The protective field range is 4.0 m. The warning field extends to 49 m radially.

Q2: Which communication protocol does this scanner support?
A: It supports PROFINET IO with PROFIsafe protocol. Two RJ-45 Push-Pull ports enable network connection.

Q3: What safety integrity level does the S30A-4111DP achieve?
A: It meets Type 3, SIL 2, SILCL 2, and PL d / Category 3 standards.

Q4: Can I adjust the response time on this model?
A: Yes. The response time is ≤ 60 ms and configurable from 60 ms to 120 ms.

Q5: What is the ambient temperature range for operation?
A: The operating range is -10 °C to +50 °C. Storage range is -20 °C to +70 °C.
