TSXDSZ32T2 | Schneider Electric 32-Output Discrete Module

Name: TSXDSZ32T2 | Schneider Electric 32-Output Discrete Module
Brand: N/A
Availability: InStock
Rating: 4.6 (16 reviews)

TSXDSZ32T2

Manufacturer: N/A
Series: N/A
Model Number: TSXDSZ32T2
Weight: N/A
Condition: In Stock
Availability: 100% Original Brand New
Product Origin: U.S.A
Shipping port: Xiamen
Warranty: 12 Month

TSXDSZ32T2: A Service-Friendly 32-Output Module for Modicon TSX Micro

Downtime rarely waits for a convenient moment. When a discrete output module fails on a running line, maintenance engineers need a drop-in replacement that behaves exactly like the original. The Schneider Electric TSXDSZ32T2 is a discrete output module built for the Modicon TSX Micro automation platform, delivering 32 relay-based outputs at 24 VDC through screw terminal blocks. For plants still running TSX Micro systems, this is the practical, cost-effective way to restore output control without re-engineering the panel.

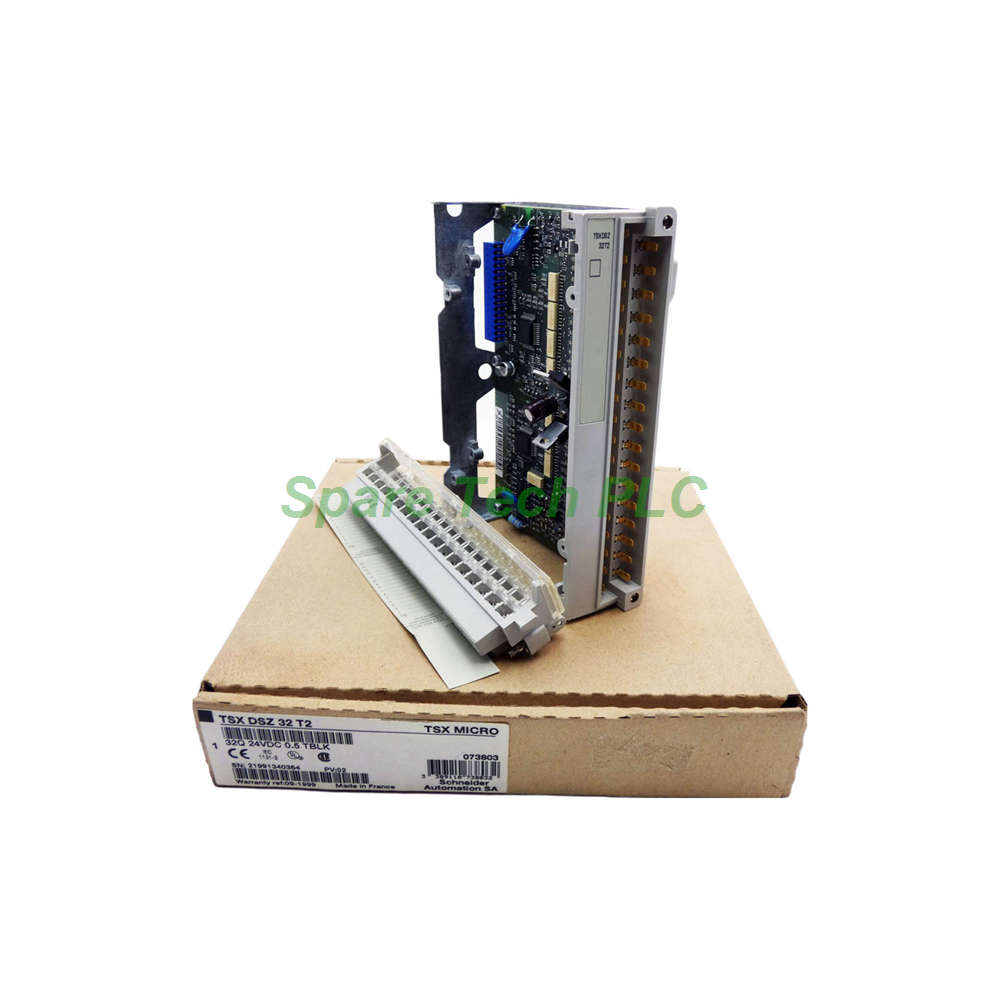

Figure 1: Front view of the Schneider Electric TSXDSZ32T2 Discrete showing its physical design and enclosure.

Key Specifications at a Glance

Output type: discrete, relay technology
Number of discrete outputs: 32, via screw terminal block
Output voltage: 24 VDC, with output voltage limits of 19...30 V
Output current limits: 0.625 A
Maximum leakage current: 0.5 mA at state 0
Residual voltage: 0.3 V; ohmic load impedance: 48 Ohm
Response time: < 0.5 ms at state 1 and < 0.5 ms at state 0
Overvoltage protection: Zener diode; short-circuit protection: thermal circuit breaker and current limiter
Reverse polarity protection: reverse diode on power supply
Paralleling of outputs: yes, 2 maximum
Isolation voltage: 1500 V for 1 s
Current consumption: 94 mA; power dissipation: 0.15 W per channel, 3.2 W per module
Net weight: 0.42 kg

Why Maintenance Teams Choose This Module

Relay outputs tolerate real-world field conditions well, and the TSXDSZ32T2 backs that up with layered protection. The Zener diode clamps overvoltage events, while the thermal circuit breaker and current limiter handle short circuits before they spread. A reverse diode on the power supply guards against wiring mistakes during rushed changeouts. With a response time under 0.5 ms on both state transitions, the module keeps pace with fast discrete sequences without introducing timing drift into your process.

Power dissipation stays modest at 3.2 W per module, which matters in densely packed cabinets where heat shortens component life. The 94 mA current consumption is easy to account for when sizing the existing supply. Because outputs can be paralleled up to two, engineers gain a small amount of flexibility when a single channel needs more drive capability.

Figure 2: Technical layout and connection details for the Schneider Electric TSXDSZ32T2 Discrete.

Installation and Service Notes

The screw terminal block connection simplifies field wiring and re-termination during maintenance windows. Before fitting a replacement, isolate the panel, verify the 24 VDC supply falls within the 19...30 V range, and confirm load impedance suits the channel. Inspect terminal torque and look for discoloration that signals a loose or overloaded connection. Periodic checks of cabinet temperature and airflow help the module run within its dissipation limits. Always follow Schneider Electric's installation documentation and your site's safety procedures.

Compatibility and Sourcing

The TSXDSZ32T2 belongs to the Modicon TSX Micro automation platform and pairs with the associated TSX Micro PLC hardware. If your system uses fieldbus networking, confirm cabling and any gateway requirements with your supplier before ordering. Please verify current lifecycle status and availability with SpareTech Plc before ordering.

Buying the Right Spare, Fast

Before purchase, confirm the exact part number, output count, and voltage match your existing installation. SpareTech Plc supplies genuine parts, fast shipping, and expert technical selection support to help you avoid a wrong-fit order. Contact SpareTech Plc today for pricing and availability.

Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic. For specific product parameters and prices, please contact SpareTech PLC professionals in a timely manner.

Brand Name
Model No.	TSXDSZ32T2
Product Type	Discrete
hasMerchantReturnPolicy	Adjust according to reality
Shippingdetails	Adjust according to reality

The TSXDSZ32T2 from Schneider Electric functions as a discrete output module within the TSX Micro PLC series. Designed to manage relay outputs, it provides a robust interface with 32 outputs that operate at 24 VDC.Technical specifications for TSXDSZ32T2 Manufacturer Schneider Electric Product Line TSX Micro PLCs Part Number TSXDSZ32T2 EAN 3389110738032 Weight 0.44 lbs (0.20 kg) Product Name Output Module Output Type Discrete Output Technology Relay Number of Discrete Outputs 32 Over-Voltage Protection Zener Diode Connection Screw Terminal Block Output Voltage 24 VDC Output Current 0.5 mA Output Voltage Limits 19 to 30 VDC Output Current Limits 0.625 mA Maximum Leakage Current 0.5 mA at state 0 Output Short Circuit Protection Thermal Circuit Breaker and Current Limiter Paralleling of Outputs Yes, max. 2 Current Consumption 94 mA Power Dissipation 0.15W per channel, 3.2W per module Range of product Modicon TSX Micro automation platform Product or component type Discrete output module Discrete output number 32 screw terminal block Discrete output voltage 24 V DC Discrete output current 0.5 mA Discrete output logic Positive Complementary Output voltage limits 19...30 V Output current limits 0.625 A Maximum leakage current 0.5 mA at state 0 [Ures] residual voltage 0.3 V Load impedance ohmic 48 Ohm Response time < 0.5 ms at state 1 < 0.5 ms at state 0 Switching frequency < 0.6/LI² Hz Output overvoltage protection By zener diode Output short-circuit protection Thermal circuit breaker Current limiter Reverse polarity protection Reverse diode on power supply Paralleling of outputs Yes : 2 maximum Current consumption 94 mA Power dissipation in W 0.15 W by channel 3.2 W by module Isolation voltage 1500 V for 1 s Net weight 0.42 kg Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.7 cm Package 1 Width 18.2 cm Package 1 Length 26.0 cm Package 1 Weight 552.0 gDescription The TSXDSZ32T2 output module from Schneider Electric's TSX Micro PLC lineup is engineered for discrete signal management with up to 32 relay-based outputs. Each output operates at a standard voltage of 24 VDC, with a defined current of 0.5 mA per channel. The unit supports an acceptable voltage range between 19 and 30 VDC, allowing for flexibility in various applications. A maximum output current limit of 0.625 mA ensures that operational parameters are maintained within safety thresholds.For enhanced durability, the TSXDSZ32T2 incorporates a Zener diode, providing over-voltage protection to safeguard the module against power fluctuations. The output short circuit protection is managed via a thermal circuit breaker and current limiter, ensuring critical safeguards during operation. In terms of leakage, the maximum leakage current at a state of 0 is limited to 0.5 mA, maintaining system integrity.Connections are facilitated via screw terminal blocks, making installation straightforward. Furthermore, the module allows for the paralleling of outputs, accommodating a maximum of two outputs if required. With a current consumption of 94 mA, the power dissipation per channel is minimal at 0.15W, resulting in an overall module power dissipation of 3.2W. This output module is thus well-suited for efficient and reliable operation in controlling processes across a variety of automated systems.
