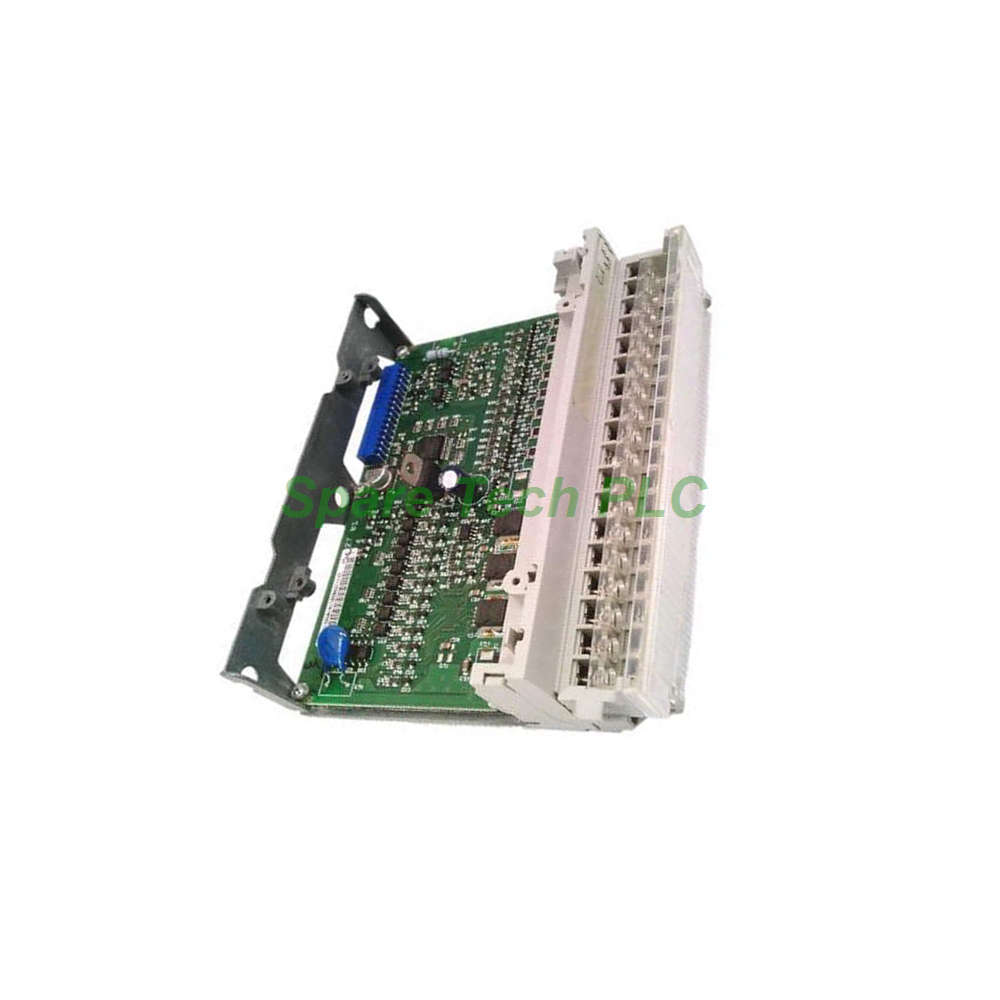

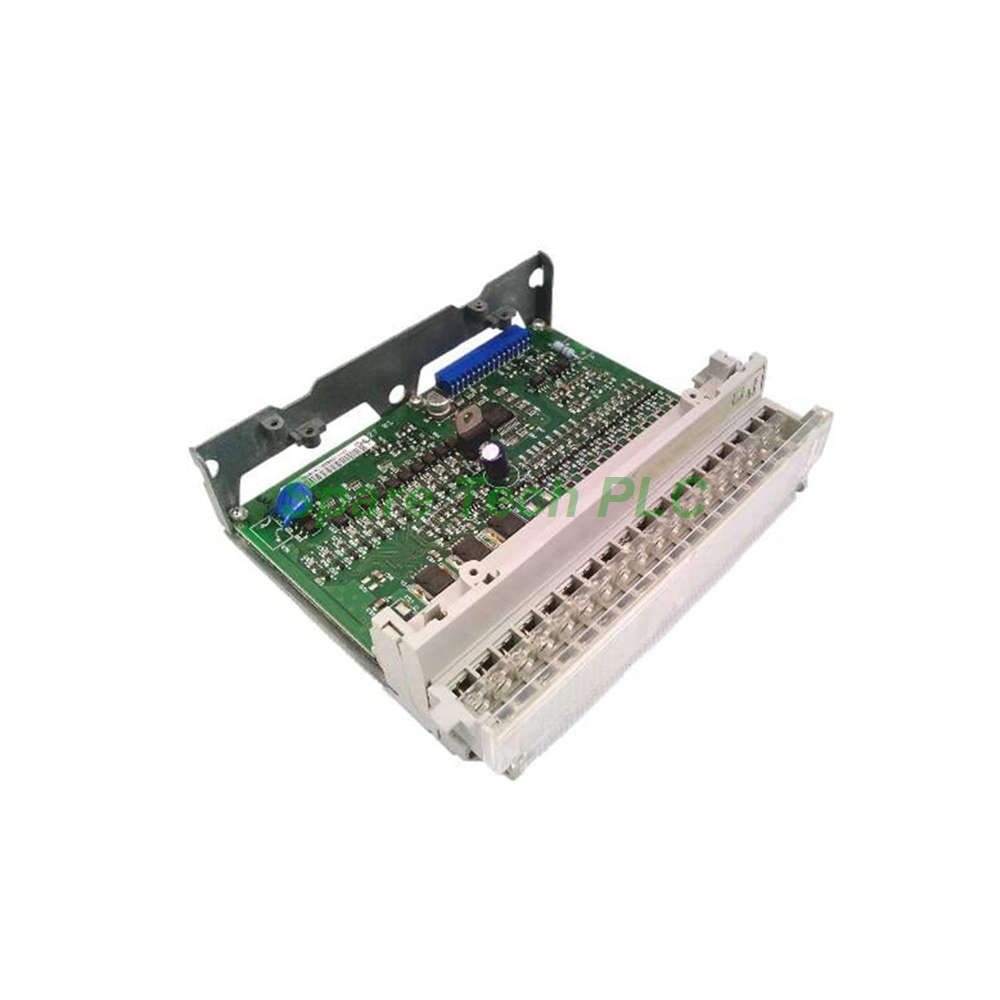

TSXDMZ28DT | Schneider Electric 24V DC Discrete I/O Module
TSXDMZ28DT | Schneider Electric 24V DC Discrete I/O Module
TSXDMZ28DT
Manufacturer: N/A Series: N/A Model Number: TSXDMZ28DT Weight: N/A Condition: In Stock Availability: 100% Original Brand New Product Origin: U.S.A Shipping port: Xiamen Warranty: 12 Month
What the TSXDMZ28DT Brings to Your TSX Micro PLC
Downtime on a TSX Micro PLC rarely waits for a convenient moment. The Schneider Electric TSXDMZ28DT is a discrete solid state I/O base DC built for the Modicon TSX Micro automation platform. It combines 16 discrete inputs on a 1 HE-10 connector with 12 discrete outputs on a screw terminal block, so one module handles a dense mix of field signals in a single slot.
As a buyer's guide, this overview focuses on what you should verify before committing to a replacement.
Key Parameters at a Glance
Product type: Discrete solid state I/O base DC
Discrete input number: 16, via 1 HE-10 connector
Discrete output number: 12, via screw terminal block
Operating voltage: 24 V DC
Current consumption: 132 mA
Power dissipation: 3.5 W by module output, 0.15 W by channel output, 5 W input
Input voltage limits: >= 11 V at state 1, < 5 V at state 0
Output voltage limits: 19...30 V
Output current limits: 0.625 A
Maximum leakage current: 0.5 mA at state 0
Load impedance (ohmic): 48 Ohm
Switching frequency: < 0.6/LI² Hz
Isolation voltage: 1500 V for 1 s
Operating temperature: -20°C to 55°C
Environmental standard: IEC 1131-2 Type 1
Net weight: 0.425 kg
Why These Ratings Matter on the Floor
The 132 mA current draw and 3.5 W module dissipation keep cabinet heat predictable, which matters when several modules share one enclosure. The 0.625 A output limit and 19...30 V output window define what each output can safely drive. The 1500 V isolation for 1 s separates field wiring from control electronics, and the 48 Ohm load impedance figure tells you what the output stage expects to see.
Response times are fast: <= 0.5 ms from state 1 to state 0 output and <= 0.5 ms from state 0 to state 1 output, with 0.1...7.5 ms on the input side. Outputs also carry zener diode overvoltage protection, short-circuit protection via current limiter and electronic circuit breaker, and reverse polarity protection through a reverse diode on the power supply. Two outputs may be paralleled at most.
Where It Fits
Typical deployments include packaging lines, material handling, and small process skids running TSX Micro PLCs. The 16 inputs accept 2-wire or 3-wire proximity sensors, so retrofits rarely need new sensor hardware. The -20°C to 55°C range suits most plant environments.
Integration and Selection Notes
Because this is a discrete solid state I/O base DC, confirm your rack, connector type, and sensor wiring match the 1 HE-10 input connector and 12-point screw terminal output block before ordering. If your architecture uses a fieldbus, wiring into such networks may require an external gateway or connection module; confirm cables and gateways with your supplier.
Before you buy, verify: the exact part number TSXDMZ28DT, your supply voltage, the number of inputs and outputs your application needs, and the load each output must switch. SpareTech Plc supplies genuine parts, fast shipping, and expert technical selection support. Contact SpareTech Plc today for pricing and availability.
Please verify current lifecycle status and availability with SpareTech Plc before ordering.
Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic.
For specific product parameters and prices, please contact
SpareTech PLC professionals in a timely manner.
Brand Name
Model No.
TSXDMZ28DT
Product Type
1
hasMerchantReturnPolicy
Adjust according to reality
Shippingdetails
Adjust according to reality
The TSXDMZ28DT model from Schneider Electric is an I/O module designed for use in TSX Micro PLC configurations. It operates at 24 V DC and consumes 132 mA of current, delivering 3.5 W of power dissipation per module and 0.15 W per channel.Technical specifications for TSXDMZ28DT
Manufacturer Schneider Electric
Product Line TSX Micro PLCs
Part Number TSXDMZ28DT
EAN 3389110540451
Weight 0.69 lbs (0.31 kg)
Current Consumption 132 mA
Power Dissipation 3.5 W by module, 0.15 W by channel
Operating Voltage 24 V DC
Input Voltage Limits >= 11 V at state 1, < 5 V at state 0
Output Voltage Limits 19-30 V
Output Current Limits 0.625 A
Maximum Leakage Current 0.5 mA at state 0
Load Impedance 48 Ohm
Switching Frequency < 0.6/LI² Hz
Isolation Voltage 1500 V for 1 second
Environmental Standards IEC 1131-2 Type 1
Operating Temperature -20°C to 55°C
Range of product
Modicon TSX Micro automation platform
Product or component type
Discrete solid state I/O base DC
Discrete input number
16 1 HE-10 connector
Discrete input voltage
24 V DC, discrete input logic: positive
Discrete input current
7 mA
Discrete input type
Resistive
Discrete output number
12 screw terminal block
Discrete output voltage
24 V DC
Discrete output current
0.5 mA
Discrete output logic
Positive
Complementary
Input voltage limits
>= 11 V at state 1
< 5 V at state 0
Current state 0 guaranteed
<= 1.5 mA
Current state 1 guaranteed
>= 2.5 mA
Input impedance
3.4 Ohm
Response time
<= 0.5 ms from state 1 to state 0 output
<= 0.5 ms from state 0 to state 1 output
0.1...7.5 ms from state 1 to state 0 input
0.1...7.5 ms from state 0 to state 1 input
Input compatibility
2-wire/3-wire proximity sensor
Current consumption
132 mA
Power dissipation in W
3.5 W by module output
0.15 W by channel output
5 W input
Output voltage limits
19...30 V
Output current limits
0.625 A
Maximum leakage current
0.5 mA at state 0
[Ures] residual voltage
0.3 V
Load impedance ohmic
48 Ohm
Switching frequency
< 0.6/LI² Hz
Output overvoltage protection
By zener diode
Output short-circuit protection
By current limiter and electronic circuit breaker
Reverse polarity protection
Reverse diode on power supply
Paralleling of outputs
Yes : 2 maximum
Isolation voltage
1500 V for 1 s
Net weight
0.425 kg
Environment
Standards
IEC 1131-2 Type 1Description
The TSXDMZ28DT I/O module from Schneider Electric is engineered for reliability in automation processes within TSX Micro PLCs. It operates on a 24 V DC power supply, drawing a current of 132 mA for efficient functionality. Each module dissipates a total power of 3.5 W, divided as 0.15 W per channel to manage heat efficiently. The module's input voltage requirements demand at least 11 V to register as active (state 1) and less than 5 V for inactive (state 0). All output voltages are maintained between 19 and 30 V, while the output current is limited to 0.625 A to ensure compatibility with connected devices.Leakage current is kept minimal, with a maximum of 0.5 mA recorded in an inactive state, which safeguards system integrity. The module’s load impedance is established at 48 Ohm, accommodating various load types effectively. Furthermore, the switching frequency is limited to under 0.6/LI² Hz, enabling precise control in response operations. This product also features an isolation voltage rated for 1500 V for a period of one second, reinforcing safety standards. Constructed to withstand operational environments, this module operates within a temperature range of -20°C to 55°C.The TSXDMZ28DT measures 5.5 cm in height, 18.0 cm in width, and 26.0 cm in length, with a net weight of 0.425 kg (0.937 lb). Adhering to IEC 1131-2 Type 1 environmental standards, the design ensures compatibility in demanding applications. The TSXDMZ28DT serves as a vital component within Schneider Electric's range of automation solutions. SpareTech PLC provides you with a PDF version of the instructions about
