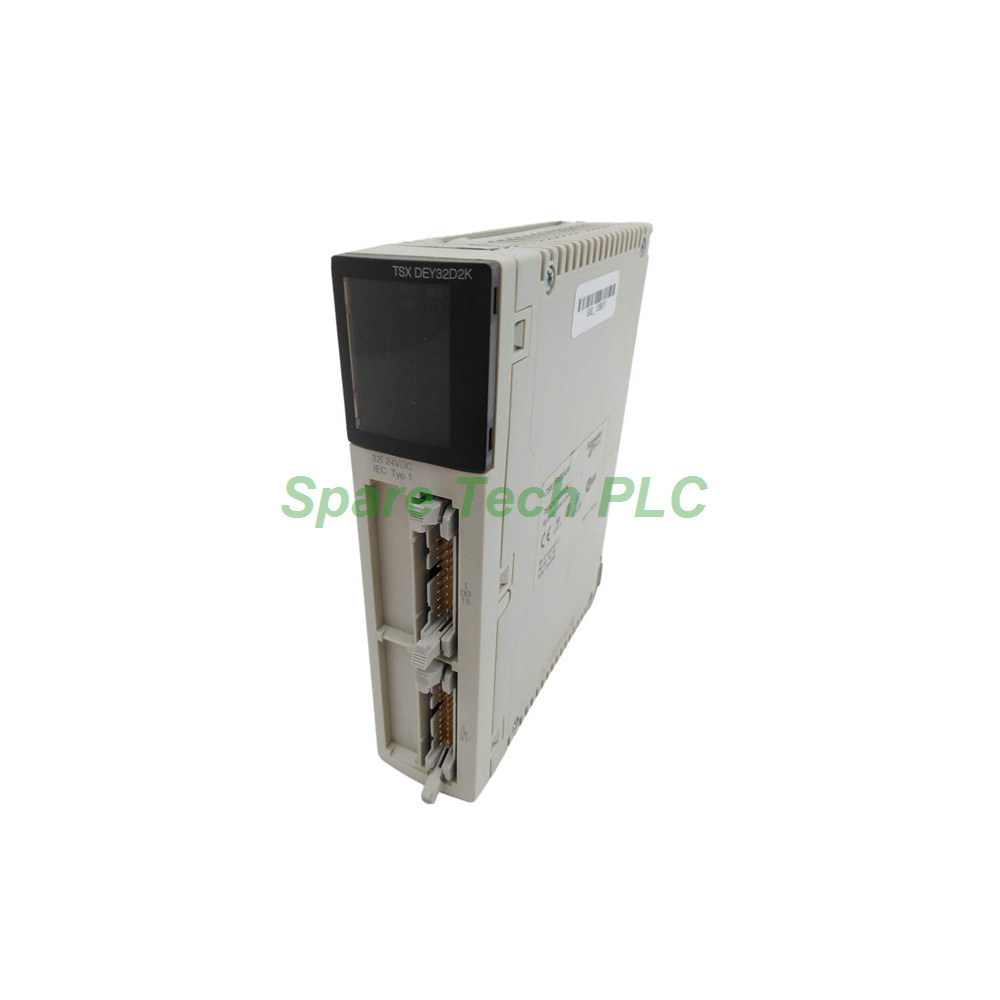

TSXDEY32D2K | Schneider Electric 32-Point Digital Input Module
TSXDEY32D2K | Schneider Electric 32-Point Digital Input Module
TSXDEY32D2K
Manufacturer: N/A Series: N/A Model Number: TSXDEY32D2K Weight: N/A Condition: In Stock Availability: 100% Original Brand New Product Origin: U.S.A Shipping port: Xiamen Warranty: 12 Month
Introduction
Factories once relied on hard-wired relay panels to sense every limit switch and pushbutton. As production lines grew, that approach collapsed under its own wiring. The TSXDEY32D2K from Schneider Electric arrived to solve exactly that problem, packing 32 digital inputs into one compact module for the TSX Micro PLCs series. For engineers modernizing legacy control panels, this module delivers dense, reliable input handling without a cabinet full of interposing relays.
Key Technical Specifications
Number of inputs: 32
Input voltage: 24 V DC
Input current: 7 mA per channel
Input impedance: 3.4 kΩ
Response time: 1 ms
Isolation: 500 V AC between channels and logic
Power consumption: 2.5 W
Operating temperature: -25°C to +70°C
Storage temperature: -40°C to +85°C
Humidity: 5% to 95% non-condensing
Mounting: DIN rail
Weight: 1.00 lbs (0.45 kg)
Certifications: CE, UL, CSA
Each of the 32 channels draws only 7 mA, so a fully loaded module consumes just 2.5 W. That efficiency keeps panel heat low and power budgets predictable. The 1 ms response time captures fast events such as position sensors or short pulses that slower input cards would miss.
Where the TSXDEY32D2K Fits Best
High-Density Machine Control
A packaging line with dozens of proximity sensors and safety interlocks needs massive input capacity. This module handles 32 points in a single slot, reducing panel size and wiring labor.
Real-Time Data Acquisition
With a 1 ms response time, the module suits dynamic processes where every millisecond of signal delay affects product quality or throughput.
Noisy Industrial Environments
The 500 V AC isolation between channels and logic protects the PLC backplane from voltage spikes and ground noise common near drives and contactors.
Installation and Setup
The TSXDEY32D2K mounts directly onto a standard DIN rail, so technicians can snap it into existing TSX Micro PLC racks without custom brackets. Keep the cabinet within the -25°C to +70°C operating range and maintain humidity between 5% and 95% non-condensing. Allow adequate clearance for airflow, since the module dissipates 2.5 W at full load. Always follow Schneider Electric's official installation guide for wiring and commissioning.
Reliability and Maintenance
This module has no moving parts, so wear is minimal. Schedule periodic visual inspections for loose terminals, dust buildup, and signs of overheating. Verify that cabinet filters and fans keep ambient conditions inside the rated range. In most plants, the TSXDEY32D2K runs for years with nothing more than routine checks, which keeps total cost of ownership low.
Compatibility and Integration
The module belongs to the TSX Micro PLCs product line from Schneider Electric. It communicates through the PLC backplane, so it integrates directly with existing TSX Micro systems. Before ordering, confirm your rack model and available slots. If you are expanding an older panel, verify the current lifecycle status with SpareTech Plc.
Selection Guide
Before purchasing, confirm the following:
Your PLC rack accepts TSX Micro series modules
You need 24 V DC input voltage, not AC
Your sensor wiring matches the 32-channel layout
Panel space and DIN rail capacity are sufficient
SpareTech Plc supplies genuine Schneider Electric spares with expert technical selection support. Contact SpareTech Plc today for pricing and availability.
Frequently Asked Questions
How many inputs does the TSXDEY32D2K provide?
It provides 32 digital inputs at a nominal 24 V DC.
What is the response time of this module?
The response time is 1 ms, enabling real-time data acquisition.
Can I mount the TSXDEY32D2K on a DIN rail?
Yes, the module is designed for standard DIN rail mounting.
What certifications does this module carry?
It holds CE, UL, and CSA certifications.
What is the operating temperature range?
The module operates from -25°C to +70°C and stores from -40°C to +85°C.
Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic.
For specific product parameters and prices, please contact
SpareTech PLC professionals in a timely manner.
Brand Name
Model No.
TSXDEY32D2K
Product Type
Digital Input Module
hasMerchantReturnPolicy
Adjust according to reality
Shippingdetails
Adjust according to reality
The TSXDEY32D2K module from Schneider Electric is a digital input module in the TSX Micro PLC series. It can handle 32 inputs at a nominal voltage of 24 V DC, making it suitable for various automation applications.Technical specifications for TSXDEY32D2K
Manufacturer Schneider Electric
Product Type Digital Input Module
Product Line TSX Micro PLCs
Part Number TSXDEY32D2K
EAN 3389110725520
Weight 1.00 lbs (0.45 kg)
Number of Inputs 32
Input Voltage 24 V DC
Input Current 7 mA per channel
Input Impedance 3.4 kΩ
Response Time 1 ms
Isolation 500 V AC between channels and logic
Power Consumption 2.5 W
Operating Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% non-condensing
Mounting DIN rail
Certifications CE, UL, CSADescription
The TSXDEY32D2K digital input module, developed by Schneider Electric, is engineered for integration within the TSX Micro PLCs series. This unit is particularly effective for applications that require handling a large number of digital inputs. It provides 32 inputs, operating at a voltage of 24 V DC, which is a standard for many control systems. Each channel consumes 7 mA, ensuring efficient operation across inputs.The module features a rapid response time of 1 millisecond, allowing for real-time data acquisition, essential for dynamic automation processes. Isolation is maintained at 500 V AC between channels and logic, enhancing the system's safety and reliability, particularly in noisy environments. Its low power consumption of just 2.5 watts further showcases its efficiency.Designed for various environmental conditions, this module operates effectively in temperatures ranging from -25°C to +70°C while withstanding storage temperatures as low as -40°C and as high as +85°C. It is specified for use in environments with relative humidity levels between 5% and 95%, non-condensing. The compact design allows easy installation on DIN rails, making it suitable for diverse panel configurations, with dimensions of 125 mm long, 32 mm in width, and 90 mm in height. Weighing only 0.2 kg, this module is lightweight.Certification standards such as CE, UL, and CSA ensure that the TSXDEY32D2K meets necessary safety and performance regulations, making it a reliable choice for industry professionals looking for effective digital input solutions.Range of Product
Modicon Premium Automation platform
Product or Component Type
Discrete input module
Discrete input number
32 current sink isolated EN/IEC 61131-2 type 1
Discrete input voltage
24 V DC positive
Sensor power supply
19…30 V
Discrete input current
3.5 mA
Complementary
Voltage state 1 guaranteed
>= 11 V
Current state 1 guaranteed
>= 3 mA
Voltage state 0 guaranteed
<= 5 V
Current state 0 guaranteed
<= 1.5 mA
Input impedance
6300 Ohm at state 1
Response Time
<= 7 ms
4 ms
isalotion resistance
< 10 MOhm 500 V DC
Power dissipation
(1 W + 0.1 W x No of channels used)
Electrical Connection
HE-10 connector
Marking
CE
Current consumption
135 mA 5 V DC
160 mA 24 V DC
Module format
Standard
Net Weight
0.7 lb(US) (0.3 kg)
Environment
Dielectric strength
1500 V AC 50/60 Hz
Standards
CSA C22.2 No 213 Class I Division 2 Group B
IEC 60664
CSA C22.2 No 142
CSA C22.2 No 213 Class I Division 2 Group A
92/31/EEC
EN/IEC 61131-2
UL 508
CSA C22.2 No 213 Class I Division 2 Group D
93/68/EEC
CSA C22.2 No 213 Class I Division 2 Group C
73/23/EEC
89/336/EEC
Product Certifications
LR
GL
BV
RMRS
RINA
ABS
DNV
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative Humidity
10…95 % without condensation for operation
5…95 % without condensation for storage
Operating altitude
0...6561.68 ft (0...2000 m)
Protective treatment
TC
IP Degree of Protection
IP20
Pollution degree
2
Ordering and shipping details
Category
22558 - TSX PREMIUM, ATRIUM & PL7 PRO
Discount Schedule
PC22
GTIN
3389110725520
Returnability
No
Country of origin
FR
Packing Units
Unit Type of Package 1
PCE
Nbr. of units in pkg.
1
Package 1 Height
2.2 in (5.5 cm)
Package 1 Width
7.09 in (18.0 cm)
Package 1 Length
10.2 in (26.0 cm)
Package weight(Lbs)
14.5 oz (412.0 g) SpareTech PLC provides you with a PDF version of the instructions about
N/A TSXDEY32D2K,
where you can download the
N/A TSXDEY32D2K manual PDF for free： Download PDF
