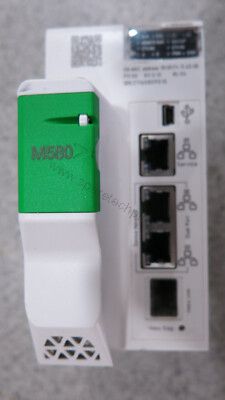

When a continuous process line loses its primary controller, every second of downtime erodes output and margin. The Schneider Electric BMEH586040C redundant processor module eliminates that single point of failure. As part of the Modicon M580 range, this conformal-coated CPU keeps your plant running even if one processor drops offline.
This is not a generic PLC CPU. It is a purpose-built redundant processor with a dedicated hot standby (HSBY) Ethernet port, so the standby unit mirrors the primary in real time. The result: bumpless switchover and no lost production.
The BMEH586040C carries ATEX zone 2/22 and IECEx zone 2/22 certifications, plus UL, CSA, RCM, EAC, and Merchant Navy approvals. It resists gas (class Gx, 3C4), dust (3S4), sand (3S4), salt (level 2), mold, and fungal spores. That makes it a natural fit for oil and gas, marine, and chemical plants where ordinary controllers fail.
Continuous process lines – Redundant architecture means no single CPU failure stops production. The HSBY link keeps the standby processor synchronized, so switchover is transparent to operators.
Remote I/O-heavy sites – With support for 31 remote stations and 64 distributed devices, this module centralizes control across large plants without sacrificing speed.
Hazardous areas – ATEX and IECEx zone 2/22 ratings allow deployment in classified locations, reducing the need for additional purge or enclosure systems.
Mount the BMEH586040C in a Modicon M580 rack. The module draws 365 mA at 24 V DC from the rack's internal power supply. For redundant operation, connect the HSBY port to the peer processor. When wiring into Ethernet device networks, confirm cable types and any required gateways with your supplier — fieldbus integration may need external connection modules. Front-panel LEDs (RUN, ERR, I/O, DL, BACKUP, ETH MS, Eth NS, REMOTE RUN, A, B, PRIM, STBY, FORCED IO, Hsby Diag) give immediate status feedback during commissioning.
With a 650,000-hour MTBF, the BMEH586040C is engineered for years of service. Schedule periodic inspections of the conformal coating for damage, verify LED status, and keep the enclosure within the specified temperature and humidity range. Because the module is conformal coated, it tolerates contaminants that would corrode unprotected boards — a cost-effective choice for extended service life.
Before ordering, confirm your rack type, redundancy requirements, and communication module count. The BMEH586040C supports up to 6 Ethernet communication modules and 16 AS-Interface modules. Ensure your power budget accommodates 365 mA at 24 V DC. For expert selection support and immediate dispatch of genuine parts, contact SpareTech Plc today for pricing and availability.
Q: What makes the BMEH586040C different from a standard M580 processor?
A: It includes a dedicated HSBY Ethernet port and 4096 kB of HSBY data RAM, enabling hot standby redundancy. Standard processors lack this synchronization capability.
Q: Can I use the BMEH586040C in an ATEX zone 2/22 area?
A: Yes. The module holds ATEX zone 2/22 and IECEx zone 2/22 certifications, along with UL, CSA, and other approvals.
Q: How much memory does the BMEH586040C offer?
A: It provides 64 MB RAM for program and data, 10 kB system RAM, 4096 kB HSBY data RAM, and 4 GB expandable flash for data storage.
Q: What is the operating temperature range?
A: The module operates from -25 to 60 °C and stores from -40 to 85 °C.
Q: How many remote I/O stations can it handle?
A: Up to 31 remote I/O stations (2 racks per X80 and Quantum drop) and 64 distributed equipment devices.
| Brand Name | |
| Model No. | BMEH586040C |
| Product Type | Redundant processor module |
