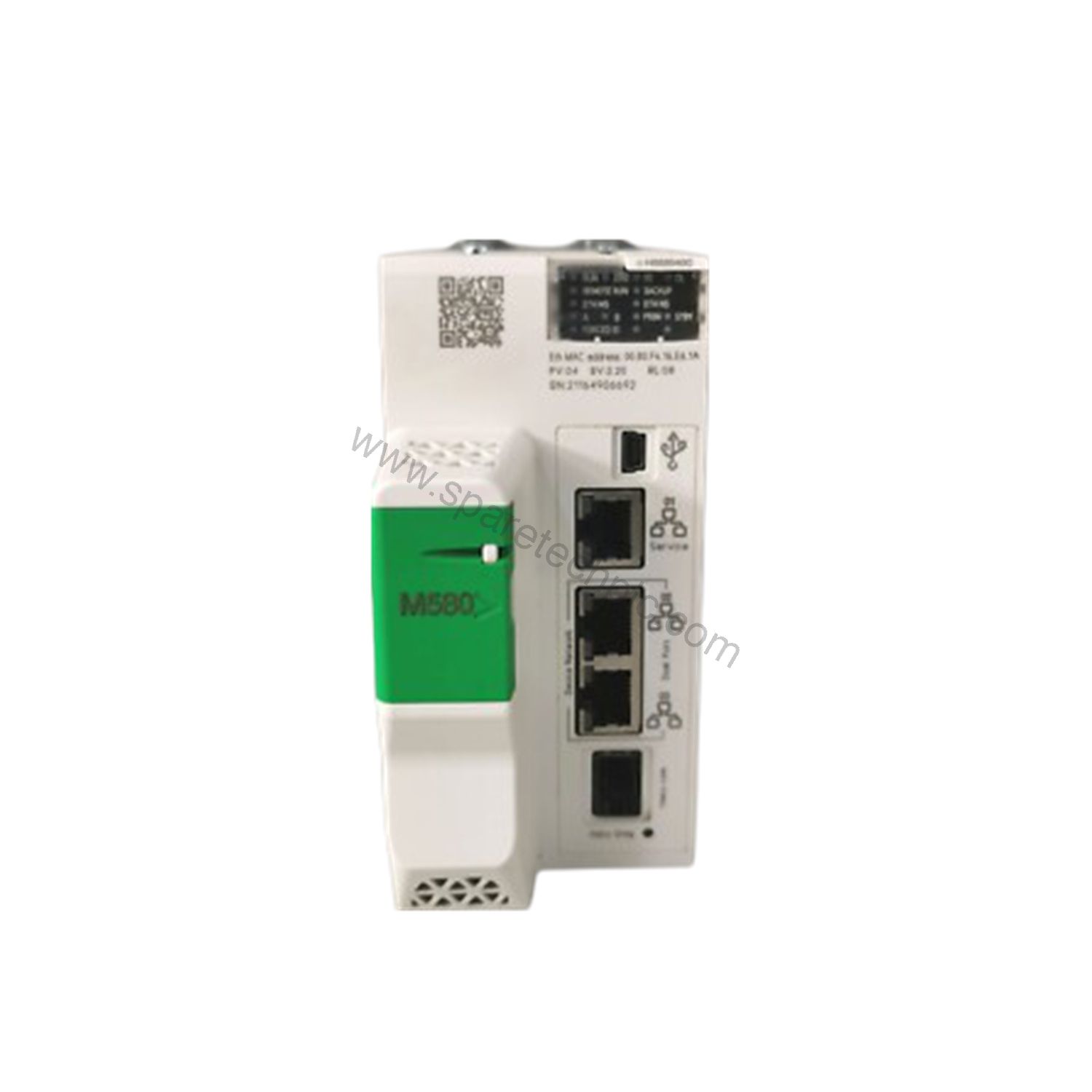

BMEH584040C | Schneider Electric Modicon M580 Redundant Processor

Why the BMEH584040C Belongs in Your Hot Standby Architecture

Downtime is the enemy of every process plant. When a primary controller fails, production stops, batches are lost, and recovery costs climb by the minute. The Schneider Electric BMEH584040C redundant processor module for the Modicon M580 platform exists to eliminate that risk. As a genuine, conformal-coated hot standby CPU, it keeps your critical process running even when one processor drops offline.

This is not a generic spare. It is the heart of a redundant M580 architecture, engineered for plants that cannot afford unplanned stops.

Technical Specifications That Matter

• Product type: redundant processor module, Modicon M580 range
• Protective treatment: conformal coated (impregnation material)
• Control channels: programmable loops
• Application-specific I/O: accurate time stamping, HART, counter, SSI encoder, serial link, motion control, process control
• Integrated connections: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, 1 Ethernet HSBY port, USB type mini B
• Remote I/O stations: 16 (2 x X80 and Quantum drops)
• Distributed equipment: 64 devices
• Communication module processor capacity: 8 AS-Interface modules, 16 Ethernet communication modules
• Memory: expandable flash with 4 GB data storage, 16 MB program RAM, 2048 kB data RAM, 10 kB system RAM
• Application structure: 1 periodic fast task, 1 cyclic/periodic master task
• Instruction throughput: 30 Kinst/ms (65% Boolean + 35% fixed arithmetic), 40 Kinst/ms (100% Boolean)
• Current consumption: 360 mA at 24 V DC
• MTBF reliability: 650000 H
• Operating temperature: -25…60 °C (-13…140 °F)
• Storage temperature: -40…85 °C (-40…185 °F)
• Relative humidity: 5…95% at 55 °C without condensation
• Operating altitude: 0…2000 m; 2000…5000 m with derating factor
• Vibration resistance: 3 gn; shock resistance: 30 gn
• IP degree of protection: IP20
• Net weight: 0.849 kg (1.872 lb)

Built for Harsh Plant Environments

The BMEH584040C carries conformal coating as standard, plus resistance to gas (class Gx ISA S71.04, class 3C4 IEC 60721-3-3), dust, sand, salt, mold, and fungal spores. It is certified for hazardous locations including ATEX zone 2/22, IECEx zone 2/22, and Class I Division 2, and meets IEC 61131-2, IEC 61010-2-201, EN/IEC 61850-3 (location G), and IACS E10 standards. Product certifications include CE, UL, CSA, RCM, EAC, and Merchant Navy.

For plants in chemical, oil and gas, or marine environments, this level of environmental hardening translates directly into longer service life and fewer nuisance trips.

Where the BMEH584040C Delivers ROI

Process industries. With HART support and accurate time stamping, this CPU suits continuous process control where event sequence accuracy matters. The hot standby link keeps the line running through a processor swap.

Water and wastewater. Distributed equipment support for up to 64 devices and 16 remote I/O stations lets you spread control across a wide plant footprint without sacrificing redundancy.

Motion and discrete hybrid lines. SSI encoder and motion control support let one platform handle mixed applications, reducing spare-part inventory across your site.

Installation and Integration Notes

The module is powered internally via the rack and draws 360 mA at 24 V DC. It uses one rack slot. Status LEDs cover RUN, ERR, I/O, DL, BACKUP, ETH MS, Eth NS, REMOTE RUN, processor ID (A/B), PRIM, STBY, FORCED IO, and Hsby Diag — giving technicians immediate visual diagnostics during commissioning.

When wiring into Ethernet TCP/IP device networks, confirm cable types and any required connection modules with your supplier. Fieldbus integration may require an external gateway depending on your existing architecture.

Selection Checklist Before You Buy

• Confirm you are specifying the BMEH584040C, not a non-redundant M580 CPU
• Verify your rack supports the redundant configuration and hot standby port
• Check that your I/O drops (X80 or Quantum) match your existing installation
• Confirm ambient conditions fall within -25…60 °C operating range
• Verify current lifecycle status and availability with SpareTech Plc before ordering

SpareTech Plc supplies genuine parts, fast shipping, and expert technical selection support. Contact SpareTech Plc today for pricing and availability.
