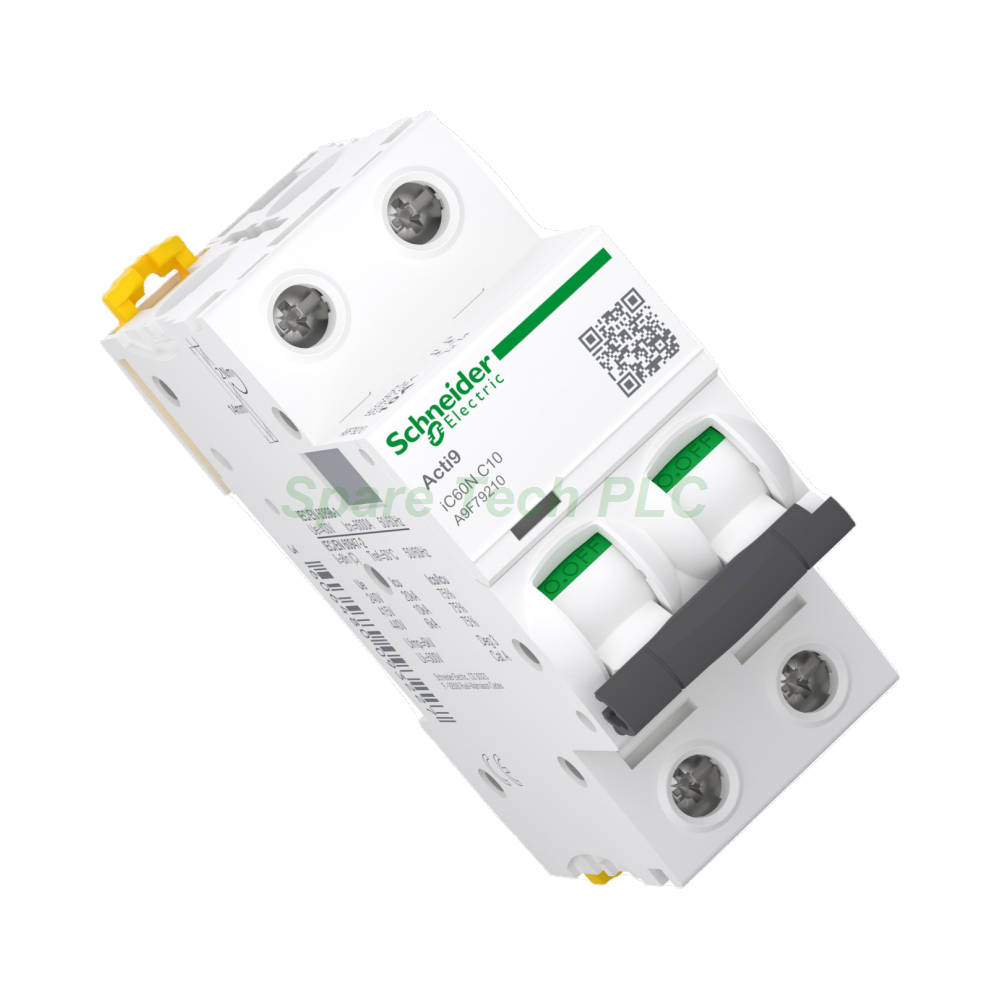

Every plant manager knows the pain: a critical control panel trips, production stalls, and the hunt for a reliable replacement begins. The Schneider Electric iC60N 2P C10 from the Acti9 iC60 series answers that challenge directly. This two-pole miniature circuit breaker delivers dependable 10A protection with a C-curve trip profile, built for industrial and commercial distribution boards where downtime is not an option.
As a genuine Acti9 device, this MCB combines thermal-magnetic protection with a compact 36 mm width, making it a cost-effective choice for both new installations and like-for-like replacements.
The 6 kA breaking capacity at 230/400V handles typical fault levels in office buildings and retail spaces. The C-curve tolerates brief inrush currents from small motors and transformers without nuisance tripping.
With a 10A rating and two-pole configuration, this breaker protects single-phase loads and control circuits. The wide -35 to 70 °C operating range suits unheated warehouses and outdoor cabinets.
When an existing Acti9 board needs a fresh 10A two-pole device, the iC60N 2P C10 slots straight onto 35 mm DIN rail. Its 36 mm width matches standard Acti9 spacing, so no re-engineering is required.
Mounting is straightforward: clip the device onto a 35 mm DIN rail and torque terminals to the manufacturer's specification. Because the iC60N 2P C10 uses thermal-magnetic tripping, no external calibration is needed. Verify the supply voltage matches the 400V AC or 125V DC rating before energising. For DC applications, confirm polarity and follow Schneider Electric's wiring diagrams.
The iC60N 2P C10 is rated for 20,000 mechanical and 10,000 electrical cycles, so it withstands frequent switching in automated panels. Periodic inspection of terminal tightness and a visual check for discolouration will keep it performing. In dusty or humid environments, ensure the enclosure maintains its IP rating to protect the breaker's internal mechanism.
The Acti9 iC60 series shares a common 35 mm DIN rail footprint with other Acti9 components, including RCDs and auxiliary contacts. This makes the iC60N 2P C10 easy to integrate into existing distribution boards. If you are adding the breaker to a monitored panel, confirm that any auxiliary contact or shunt trip accessory is compatible with the iC60N range before ordering.
Before you commit, confirm three things: the required trip curve (C for mixed loads), the pole count (2P for two-pole protection), and the breaking capacity needed at your installation point (6 kA here). Also check the available DIN rail space—36 mm width per device. SpareTech Plc stocks genuine Schneider Electric Acti9 components and offers expert technical selection support to match the right breaker to your panel.
Q: What does the C-curve on the iC60N 2P C10 mean?
A: The C-curve trips magnetically at 8×In ±20%, so it tolerates short inrush currents from motors and transformers while still protecting against overloads.
Q: Can I use this breaker for DC circuits?
A: Yes, the rated voltage includes 125V DC. Confirm polarity and follow Schneider Electric's DC wiring guidance.
Q: How many poles does the iC60N 2P C10 have?
A: It is a two-pole (2P) device, suitable for protecting two conductors simultaneously.
Q: What is the breaking capacity of this MCB?
A: It offers 6 kA at 230/400V, compliant with IEC 60898-1.
Q: Is the iC60N 2P C10 currently in production?
A: Yes, the Acti9 iC60N range is active. Contact SpareTech Plc today for pricing and availability.
