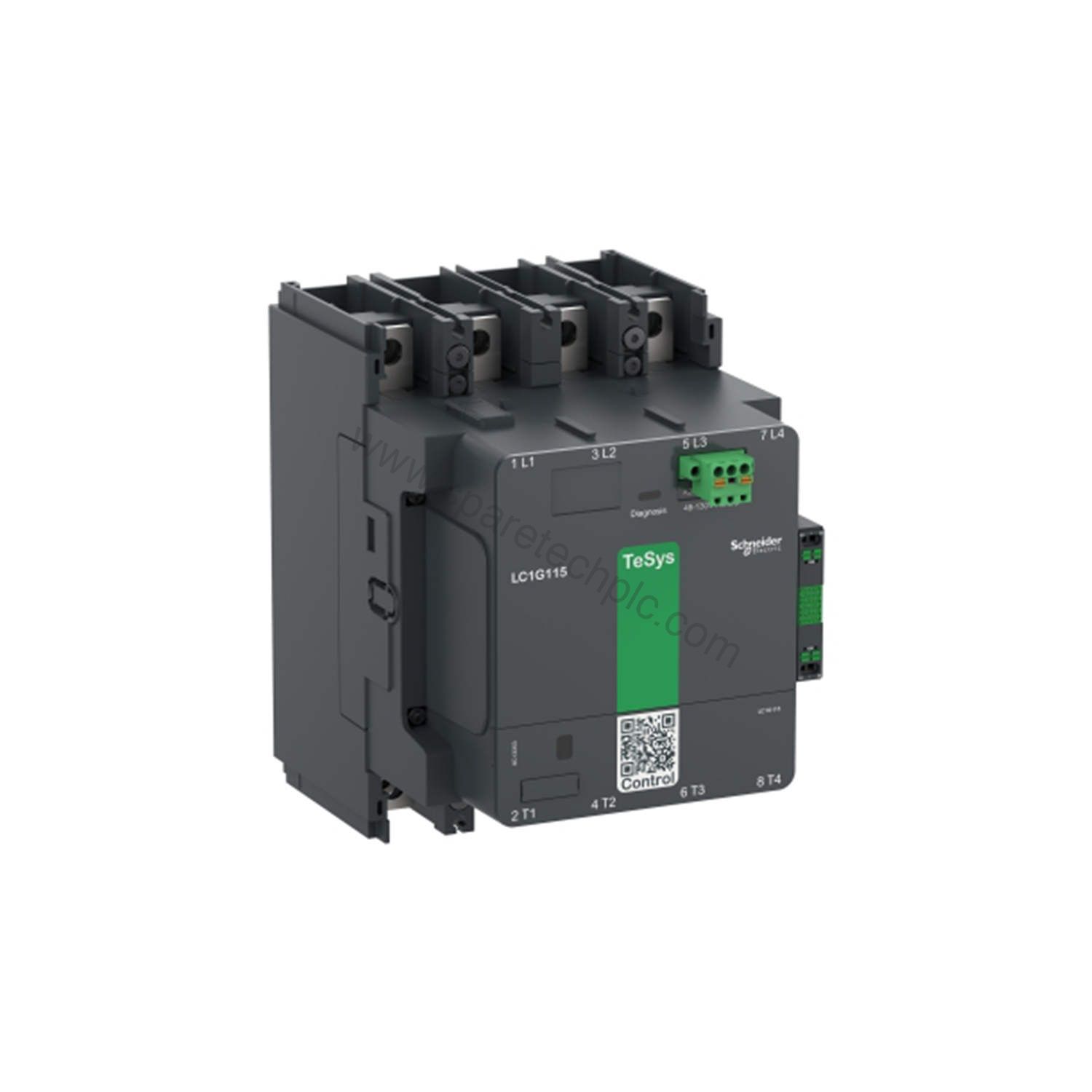

LC1G1504KUEN | Schneider Electric TeSys Giga 4-Pole Contactor
LC1G1504KUEN | Schneider Electric TeSys Giga 4-Pole Contactor
LC1G1504KUEN
Manufacturer: N/A Series: N/A Model Number: LC1G1504KUEN Weight: N/A Condition: In Stock Availability: 100% Original Brand New Product Origin: U.S.A Shipping port: Xiamen Warranty: 12 Month
LC1G1504KUEN: A Maintenance Engineer's Choice for Reliable Power Switching
When your production line depends on a contactor that just keeps working, the Schneider Electric LC1G1504KUEN from the TeSys Giga range is a smart choice. This 4-pole contactor is built for power switching applications, handling operational currents up to 275A. With a 100/250 V AC/DC coil, it offers flexibility across control systems. For maintenance engineers, the LC1G1504KUEN means fewer surprises: robust construction, clear specifications, and easy integration.
Key Technical Specifications
Coil Voltage: 100/250 V AC/DC
Number of Poles: 4
Contact Current: 275A
Contact Voltage: 1000V
Normal State Configuration: 1 NO/1 NC
Auxiliary Contact Configuration: 1 NO/1 NC
Control Circuit Voltage Uc: 100 to 250 V AC
Operational Current Ie: 275A
Minimum Operating Temperature: -25°C
Maximum Operating Temperature: 60°C
Dimensions (W x D x L): 140 mm x 193 mm x 193 mm
Standards/Approvals: EN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, JIS C8201-5-1, JIS C8201-4-1, EN/IEC 60947-5-1
Built for Demanding Environments
The LC1G1504KUEN operates reliably from -25°C to 60°C, making it suitable for harsh industrial settings. Its mechanical durability of 8 million cycles ensures long service life, reducing downtime and maintenance costs. The contactor's compact design (140mm width) saves panel space without compromising performance.
Applications and Integration
This contactor excels in motor control, power distribution, and resistive load switching. The 4-pole configuration with 1 NO/1 NC auxiliary contacts provides versatile control options. For maintenance engineers, the push-in control circuit terminals (0.2 to 2.5 mm²) simplify wiring and reduce installation time. The power circuit accepts busbars up to 25 x 6 mm or lugs-ring terminals up to 185 mm², ensuring secure connections.
Maintenance and Reliability
Regular inspection of contact tips and coil operation is recommended. The LC1G1504KUEN's built-in bidirectional peak limiting coil technology minimizes inrush current, extending coil life. With a rated impulse withstand voltage of 8 kV, it handles surges effectively. Keep the contactor clean and ensure proper torque (18 N.m) on power connections to maintain optimal performance.
Why Choose SpareTech Plc
SpareTech Plc supplies genuine Schneider Electric LC1G1504KUEN contactors from stock, ready for immediate dispatch. Our technical team provides expert selection support to ensure you get the right part. With fast worldwide shipping, we minimize your downtime. Contact SpareTech Plc today for pricing and availability.
FAQs
Q: What is the coil voltage of the LC1G1504KUEN?
A: The coil voltage is 100/250 V AC/DC.
Q: How many poles does this contactor have?
A: It has 4 poles.
Q: What is the operational current?
A: The operational current Ie is 275A.
Q: What are the dimensions?
A: Width 140 mm, depth 193 mm, length 193 mm.
Q: What standards does it meet?
A: It meets EN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, JIS C8201-5-1, JIS C8201-4-1, and EN/IEC 60947-5-1.
Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic.
For specific product parameters and prices, please contact
SpareTech PLC professionals in a timely manner.
Brand Name
Model No.
LC1G1504KUEN
Product Type
Contactor
hasMerchantReturnPolicy
Adjust according to reality
Shippingdetails
Adjust according to reality
Schneider Electric LC1G1504KUEN Contactor, 100/250 V ac/dc Coil, 4-Pole, 275 A 100 to 250 V ac, 1 NO/1 NC, 1000V SpecificationsBrandSchneider Electric
Coil Voltage100/250 V ac/dcProduct TypeContactorNumber of Poles4Contact Voltage1000VContact Current275ASeriesLC1G150FunctionLoad ControlNormal State Configuration1 NO/1 NCAuxiliary Contact Configuration1 NO/1 NCControl Circuit Voltage Uc100 to 250 V acOperational Current Ie275AMinimum Operating Temperature-25°CContactor ApplicationPower SwitchingMaximum Operating Temperature60°CWidth140 mmDepth193mmLength193mmStandards/ApprovalsEN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, JIS C8201-5-1, JIS C8201-4-1, EN/IEC 60947-5-1Better World ProductYesPole and Throw Configuration4 NOCountry of OriginChinaMain
Range TeSys
Range of product TeSys Giga
Product or component type Contactor
Device short name LC1G
Contactor application Power switching
Utilisation category AC-3
AC-3e
AC-1
AC-5a
AC-5b
AC-6a
AC-6b
DC-1
DC-3
DC-5
Poles description 4P
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current 150 A (at <60 °C) at <= 440 V AC-3
275 A (at <40 °C) at <= 1000 V AC-1
[Uc] control circuit voltage 100...250 V AC 50/60 Hz
100...250 V DC
Control circuit voltage limits Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)
Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Complementary
[Uimp] rated impulse withstand
voltage
8 kV
Overvoltage category III
[Ith] conventional free air thermal
current
275 A (at 40 °C)
Rated breaking capacity 1280 A at 440 V
[Icw] rated short-time withstand
current
1.2 kA - 10 s
0.7 kA - 30 s
0.6 kA - 1 min
0.45 kA - 3 min
0.35 kA - 10 min
Associated fuse rating 160 A aM at <= 440 V for motor
160 A aM at <= 690 V for motor
315 A gG at <= 690 V
Average impedance 0.00018 Ohm
[Ui] rated insulation voltage 1000 VPower dissipation per pole 10 W AC-1 - Ith 275 A
5 W AC-3 - Ith 150 A
Compatibility code LC1G
Pole contact composition 4 NO
Auxiliary contact composition 1 NO + 1 NC
Irms rated making capacity 1890 A at 440 V
Coil technology Built-in bidirectional peak limiting
Safety reliability level B10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO
13849-1
Mechanical durability 8 Mcycles
inrush power in VA (50/60 Hz, AC) 540 VA
inrush power in W (DC) 380 W
hold-in power consumption in VA
(50/60 Hz, AC)
12.4 VA
hold-in power consumption in W
(DC)
7.8 W
Operating time 40...70 ms closing
15...50 ms opening
Maximum operating rate 600 cyc/h AC-3
600 cyc/h AC-3e
300 cyc/h AC-1
Connections - terminals Power circuit: bar 2 - busbar cross section: 25 x 6 mm
Power circuit: lugs-ring terminals 1 185 mm²
Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable
end
Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: push-in 2 0.5…1.0 mm² with cable end
Control circuit: push-in 0.75…2.5 mm² - cable stiffness: solid stranded without cable
end
Control circuit: push-in 0.75…2.5 mm² - cable stiffness: flexible with cable end
Connection pitch 35 mm
Mounting support Plate
Standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
JIS C8201-5-1
UL 60335-1
UL 60335-2-40:Annex JJ
Product certifications CB Scheme
CCC
cULus
EAC
CE
UKCA
EU-RO-MR by DNV-GL
Tightening torque 18 N.m
Height 193 mm
Width 143 mm
Depth 193 mm
Net weight 4.4 kgEnvironmentIP degree of protection IP2X front face with shrouds conforming to IEC 60529
IP2X front face with shrouds conforming to VDE 0106
Ambient air temperature for
operation
-25…60 °C
Ambient air temperature for
storage
-60…80 °C
Mechanical robustness Vibrations 5…300 Hz 2 gn contactor open
Vibrations 5…300 Hz 4 gn contactor closed
Shocks 10 gn 11 ms contactor open
Shocks 15 gn 11 ms contactor closed
Colour Dark grey
Protective treatment TH
Permissible ambient air
temperature around the device
-40…70 °C at Uc
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 26.000 cm
Package 1 Width 21.000 cm
Package 1 Length 32.000 cm
Package 1 Weight 5.466 kg SpareTech PLC provides you with a PDF version of the instructions about
