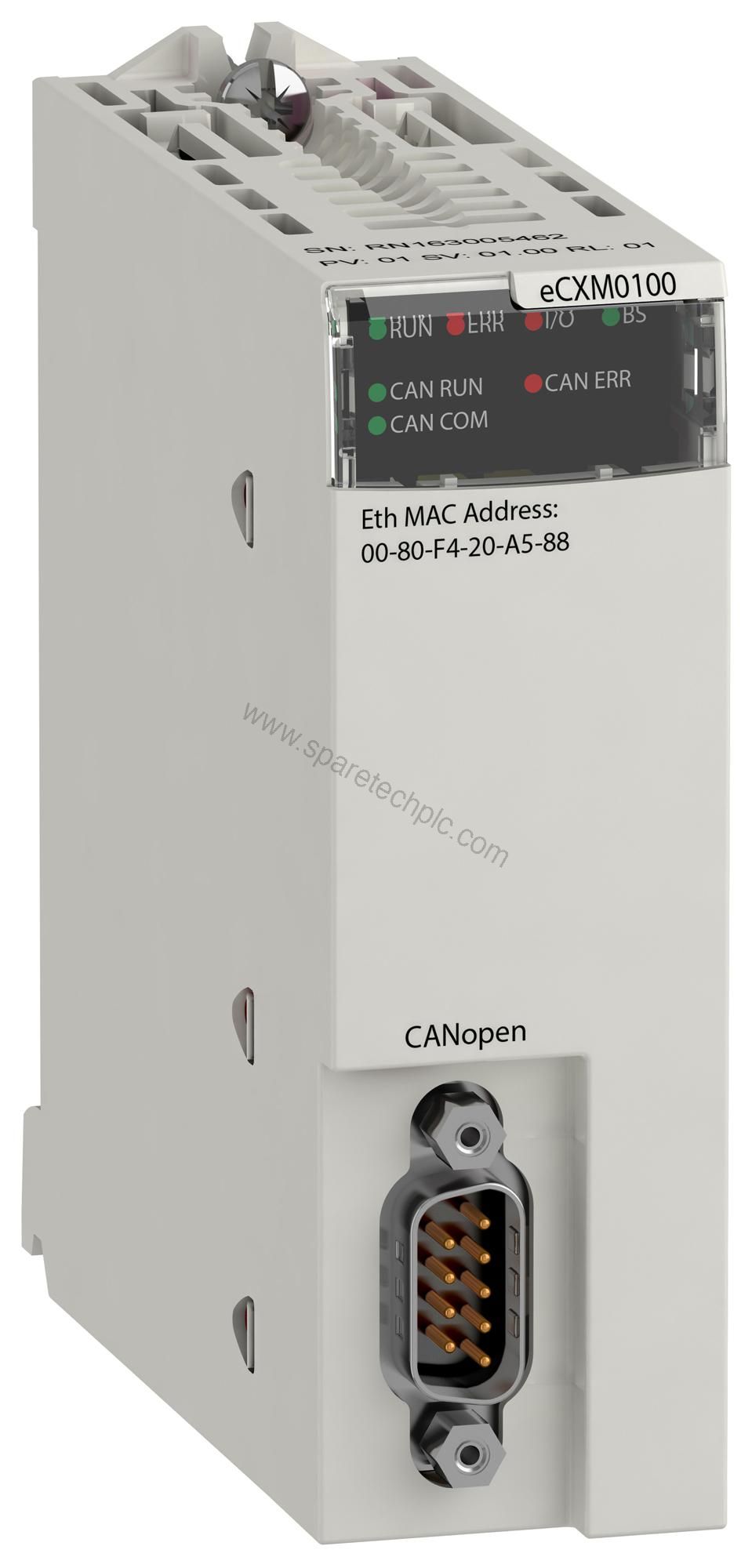

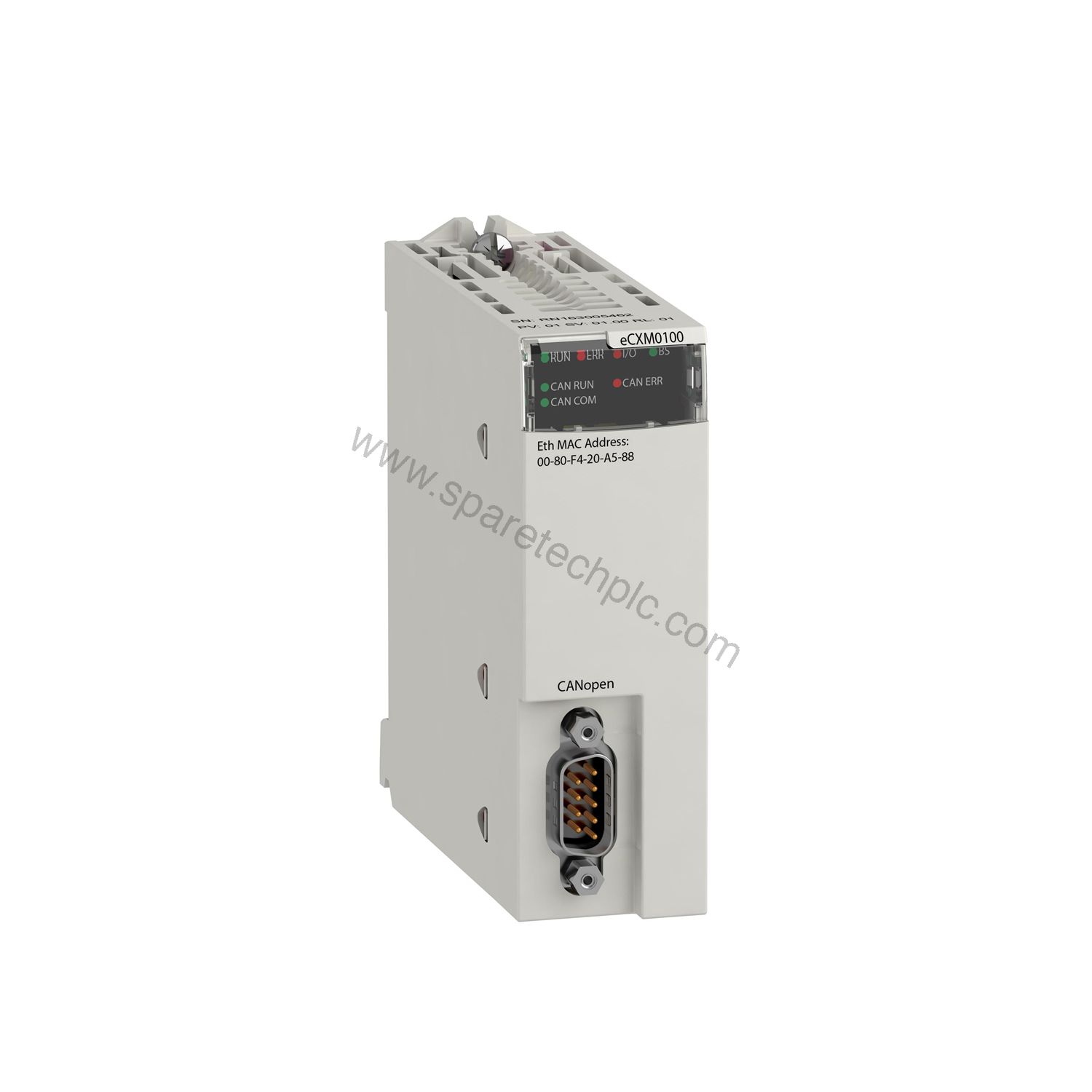

As a maintenance engineer, you know that reliable communication is the backbone of any automated system. The Schneider Electric BMECXM0100H is a CANopen communication module designed for the Modicon X80 range. It provides a robust, open industrial fieldbus interface that seamlessly integrates with M580 PLCs. This module ensures your control system maintains efficient data exchange, reducing downtime and keeping your operations running smoothly.
The BMECXM0100H is built to withstand harsh conditions. Its conformal coating protects against dust, moisture, and chemicals, ensuring long-term reliability. With an operating temperature range of -13…158 °F, it performs in extreme environments. The module supports up to 63 server devices, making it ideal for large-scale networks. Whether you're in manufacturing, oil and gas, or water treatment, this module delivers consistent performance.
Installing the BMECXM0100H is straightforward. It mounts directly into a Modicon X80 rack and connects via a standard DB9 connector. Ensure the twisted shielded pairs cable is used for Profibus DP to maintain signal integrity. The module is powered internally at 24 V DC, drawing only 70 mA, so it integrates easily into existing power budgets. For optimal performance, verify that the M580 PLC is configured to recognize the module.
From a maintenance perspective, the BMECXM0100H requires minimal attention. Its conformal coating and robust design reduce the need for frequent inspections. However, periodic checks of the DB9 connection and cable integrity are recommended to prevent signal degradation. The module's wide temperature range and environmental certifications make it suitable for demanding applications, ensuring a long service life and cost-effective operation.
The BMECXM0100H is specifically designed for M580 PLCs, ensuring seamless integration. It communicates via CANopen, a widely used protocol in industrial automation. When integrating into a Profibus DP network, remember that you may need an external gateway or connection module. Always confirm cable and gateway compatibility with your supplier.
Before purchasing, verify that your system uses an M580 PLC and requires CANopen communication. Check that the transmission rate and distance match your network requirements. The BMECXM0100H supports multiple baud rates, so ensure compatibility with your existing devices. For expert selection support and immediate availability, contact SpareTech Plc today.
Q: What is the maximum number of server devices supported?
A: The BMECXM0100H supports up to 63 server devices.
Q: What is the operating temperature range?
A: It operates from -13…158 °F (-25…70 °C).
Q: Is the BMECXM0100H certified for hazardous locations?
A: Yes, it holds ATEX zone 2/22 and IECEx zone 2/22 certifications.
Q: What is the current consumption?
A: The module draws 70 mA at 24 V DC.
Q: Can it be used with other PLCs?
A: It is designed for M580 PLCs. For other systems, please consult our technical team.
| Brand Name | |
| Model No. | BMECXM0100H |
| Product Type | CANopen communication module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
