TSXH5724M | Schneider Electric Micro PLC, 1024 I/O

Name: TSXH5724M | Schneider Electric Micro PLC, 1024 I/O
Brand: N/A
Availability: InStock
Rating: 4.6 (16 reviews)

TSXH5724M

Manufacturer: N/A
Series: N/A
Model Number: TSXH5724M
Weight: N/A
Condition: In Stock
Availability: 100% Original Brand New
Product Origin: U.S.A
Shipping port: Xiamen
Warranty: 12 Month

TSXH5724M Micro PLC: Solve Capacity, Speed, and Connectivity Gaps

When your automation cell outgrows a compact controller, the Schneider Electric TSXH5724M delivers the headroom you need. This micro PLC from the TSX Micro PLCs line handles up to 1024 discrete I/O and 80 analog I/O, so you can expand without replacing your entire control architecture. As a genuine spare, it is in stock and ready to ship from SpareTech Plc.

Technical Specs That Matter

Discrete I/O capacity: 1024 I/O
Analog I/O capacity: 80 I/O
Rack configuration: 1 rack (6/8/12 slots)
Application-specific channels: ≤ 24
Process control channels: ≤ 10 (up to 30 simple loops)
Integrated connections: Ethernet TCP/IP RJ45, USB type A (12 Mbit/s), serial link female mini DIN RS485 (19.2 kbit/s)
Memory: PCMCIA card (16384 kB additional data storage); internal RAM with PCMCIA card: 768 kB program, 192 kB data; without PCMCIA card: 192 kB program and data
Execution speed: 0.039–0.057 µs Boolean without PCMCIA card; 0.048–0.057 µs Boolean with PCMCIA card; 0.054–0.073 µs word/fixed-point arithmetic; 0.055–0.063 µs floating points
Throughput: 11.4 Kinst/ms (65% Boolean + 35% fixed arithmetic); 15.75 Kinst/ms (100% Boolean)
Current consumption: 1880 mA at 5 V DC
Weight: 1.00 lbs (0.45 kg)

Built for Real Production Pressures

Pain point: slow scan times stall your line. The TSXH5724M executes Boolean instructions in as little as 0.039 µs. That speed keeps high-speed packaging and sorting applications responsive, even with 1024 I/O points active.

Pain point: mixed I/O needs complicate panel design. With 80 analog I/O and 24 application-specific channels, this controller handles temperature loops, flow control, and discrete sequencing in one unit. You reduce wiring and spare-part count.

Pain point: data logging and recipe management demand memory. Adding a PCMCIA card gives you 16384 kB of extra storage plus 768 kB program RAM. That supports trending, batch recipes, and historical data without an external logger.

Installation and Setup

Mount the TSXH5724M in a single rack with 6, 8, or 12 slots. Confirm your backplane and power supply match the 1880 mA at 5 V DC requirement. Use the RJ45 Ethernet port for programming and HMI traffic, the USB type A port for fast local transfers, and the RS485 mini DIN serial link for legacy devices. Keep the IP20 enclosure inside a clean cabinet; ambient operating range is 0–60 °C.

Integration and Compatibility

The integrated Ethernet TCP/IP port supports 10BASE-T/100BASE-TX. The RS485 serial link runs at 19.2 kbit/s. Integration Note: Connecting this PLC to a plant-wide fieldbus may require an external gateway or communication module. Confirm cables and gateways with your supplier before commissioning.

Reliability and Maintenance

Inspect the unit periodically for dust buildup and secure connections. The TC protective treatment and IP20 rating suit controlled cabinet environments. Operating altitude is rated to 2000 m, and storage temperature spans -25 to 70 °C. Replacing a failed controller with a genuine TSXH5724M minimizes downtime and keeps your spare-parts strategy cost-effective.

Selection Checklist

Before ordering, verify your rack slot count, I/O mix, and whether your application needs the PCMCIA memory card. Confirm the 5 V DC current draw fits your power budget. SpareTech Plc offers expert technical selection support and fast worldwide shipping on genuine parts.

Please verify current lifecycle status and availability with SpareTech Plc before ordering. Contact SpareTech Plc today for pricing and availability.

Figure 1: Front view of the Schneider Electric TSXH5724M A 12 Mbit/s), Serial link (female mini DIN RS485 19.2 kbit/s) showing its physical design and enclosure.

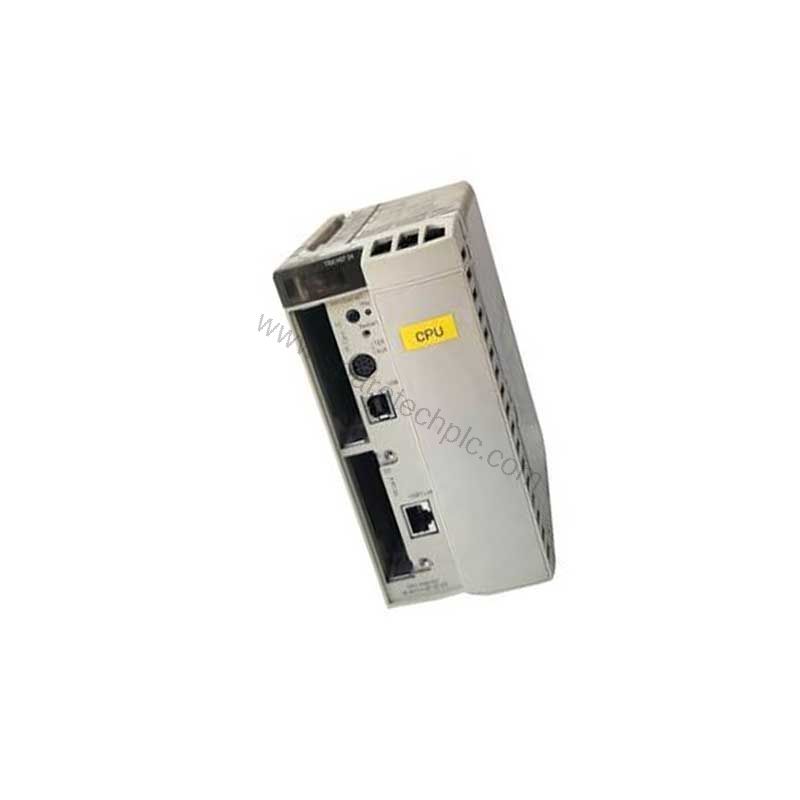

Figure 2: Technical layout and connection details for the Schneider Electric TSXH5724M A 12 Mbit/s), Serial link (female mini DIN RS485 19.2 kbit/s).

Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic. For specific product parameters and prices, please contact SpareTech PLC professionals in a timely manner.

Brand Name
Model No.	TSXH5724M
Product Type	A 12 Mbit/s), Serial link (female mini DIN RS485 19.2 kbit/s)
hasMerchantReturnPolicy	Adjust according to reality
Shippingdetails	Adjust according to reality

The TSXH5724M from Schneider Electric represents a highly capable micro PLC from the TSX Micro PLCs series. Designed for various automation tasks, it supports significant I/O capacities and multiple integrated connection options.Technical specifications for TSXH5724M Manufacturer Schneider Electric Product Line TSX Micro PLCs Part Number TSXH5724M EAN 3595863921243 Weight 1.00 lbs (0.45 kg) Number of Racks 1 (6/8/12 slots) Discrete I/O Processor Capacity 1024 I/O Analog I/O Processor Capacity 80 I/O Number of Application-Specific Channels ≤ 24 Number of Process Control Channels ≤ 10 (up to 30 simple loops) Integrated Connection Types Ethernet TCP/IP RJ45, USB port (USB type A 12 Mbit/s), Serial link (female mini DIN RS485 19.2 kbit/s) Memory Description PCMCIA card (16384 kB additional data storage), Internal RAM (with PCMCIA card: 768 kB program, 192 kB data; without PCMCIA card: 192 kB program and data) Execution Time per Instruction 0.039-0.057 µs Boolean (without PCMCIA card), 0.048-0.057 µs Boolean (with PCMCIA card), 0.054-0.073 µs word or fixed-point arithmetic (with PCMCIA card), 0.054-0.073 µs word or fixed-point arithmetic (without PCMCIA card), 0.055-0.063 µs floating points (with PCMCIA card), 0.055-0.063 µs floating points (without PCMCIA card) Number of Instructions per ms 11.4 Kinst/ms (65% Boolean + 35% fixed arithmetic without PCMCIA card), 11.4 Kinst/ms (65% Boolean + 35% fixed arithmetic with PCMCIA card), 15.75 Kinst/ms (100% Boolean without PCMCIA card), 15.75 Kinst/ms (100% Boolean with PCMCIA card) System Overhead 1 ms master task Marking CE Port Ethernet 10BASE-T/100BASE-TX Max. Size of Object Areas 192 kB data exchanged via CPU Sync link Protective Treatment TC Range of Product Modicon Premium Automation platform Product or Component Type Unity Hot Standby processor Software Designation Unity Pro Complementary Number of racks 1 6/8/12 slots Number of slots 6 8 12 Discrete I/O processor capacity 1024 I/O Analogue I/O processor capacity 80 I/O Number of application specific channel 24 Number of process control channel 10 up to 30 simple loops Integrated connection type Non isolated serial link female mini DIN RS485)19.2 kbit/s) Ethernet TCP/IP RJ45 USB port USB type A12 Mbit/s) Port Ethernet 10BASE-T/100BASE-TX Communication module processor capacity 2 Memory description Internal RAM (with PCMCIA card) 192 kB data Internal RAM (with PCMCIA card) 768 kB program Internal RAM (without PCMCIA card) 192 kB program and data PCMCIA card 16384 kB additional data storage Maximum size of object areas 192 kB data exchanged via CPU Sync link 32464 %MWi internal words located internal data 32760 %KWi constant words located internal data 8056 %Mi located internal bits Unlimited (DFB and EFB function blocks) unlocated internal data Unlimited (elementary and derived data) unlocated internal data Application structure 1 master task Execution time per instruction 0.039...0.057 µs Boolean without PCMCIA card 0.048...0.057 µs Boolean with PCMCIA card 0.054...0.073 µs word or fixed-point arithmetic with PCMCIA card 0.054...0.073 µs word or fixed-point arithmetic without PCMCIA card 0.055...0.063 µs floating points with PCMCIA card 0.055...0.063 µs floating points without PCMCIA card Number of instructions per ms 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 15.75 Kinst/ms 100 % Boolean with PCMCIA card 15.75 Kinst/ms 100 % Boolean without PCMCIA card System overhead 1 ms master task Marking CE Local signalling 1 LED (green) for Ethernet TCP/IP port ready (RUN) 1 LED (green) for processor running (RUN) 1 LED (red) for collision detection (COL) 1 LED (red) for Ethernet TCP/IP port fault (ERR) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on TER or AUX terminal port (TER) 1 LED (yellow) for Ethernet link diagnostics (STS) 1 LED (yellow) for reception activity (RX) 1 LED (yellow) for transmission activity (TX) Current consumption 1880 mA 5 V DC Module format Double Net Weight 1.23 lb(US) (0.56 kg) Environment Standards CSA C22.2 No 213 Class I Division 2 Group D 92/31/EEC CSA C22.2 No 213 Class I Division 2 Group B UL 508 89/336/EEC 93/68/EEC CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 142 73/23/EEC IEC 61131-2 CSA C22.2 No 213 Class I Division 2 Group C Product Certifications RINA ABS LR RMRS DNV GL BV Ambient Air Temperature for Operation 32…140 °F (0…60 °C) Ambient Air Temperature for Storage -13…158 °F (-25…70 °C) Relative Humidity 10…95 % without condensation for operation 5…95 % without condensation for storage Operating altitude 0...6561.68 ft (0...2000 m) Protective treatment TC IP Degree of Protection IP20 Pollution degree 2 Ordering and shipping details Category 22558-TSX PREMIUM, ATRIUM & PL7 PRO Discount Schedule PC22 GTIN 3595863921243 Returnability No Country of origin FR Packing Units Unit Type of Package 1 PCE Nbr. of units in pkg. 1 Package 1 Height 3.7 in (9.5 cm) Package 1 Width 7.09 in (18.0 cm) Package 1 Length 10.2 in (26.0 cm) Package weight(Lbs) 2.38 lb(US) (1.08 kg)Description The Schneider Electric TSXH5724M is a powerful micro PLC that meets diverse industrial automation needs. This compact controller supports a single rack configuration that holds between 6 and 12 slots, accommodating varied setup requirements. With a discrete I/O processing limit of 1024 I/O and an additional capacity for 80 analog I/O points, the TSXH5724M facilitates substantial input and output capabilities.Regarding functional versatility, the unit houses up to 24 application-specific channels and provides up to 10 process control channels to manage as many as 30 straightforward loops. Communication is streamlined via integrated connection types, including Ethernet TCP/IP (RJ45), a USB port for fast data exchange, and a serial link (female mini-DIN RS485) supporting 19.2 kbit/s.Memory management is further enhanced with a PCMCIA card that allows for an additional 16384 kB of data storage. When a PCMCIA card is installed, internal RAM runs at 768 kB for programs and 192 kB for data. Without a PCMCIA card, the RAM limits include 192 kB split equally between programs and data.Performance-wise, the execution times for various instruction types range from 0.039 µs to 0.073 µs, depending on whether a PCMCIA card is present. The controller can handle 11.4 Kinst/ms for combined Boolean and fixed arithmetic operations or 15.75 Kinst/ms for pure Boolean operations. The system overhead is maintained at a master task duration of 1 millisecond.CE certification markings indicate compliance with applicable standards, and the controller supports Ethernet connection options at 10BASE-T/100BASE-TX speeds. For object area exchanges, a maximum size of 192 kB is specified via the CPU Sync link, while the device has a protective treatment classified as TC.
