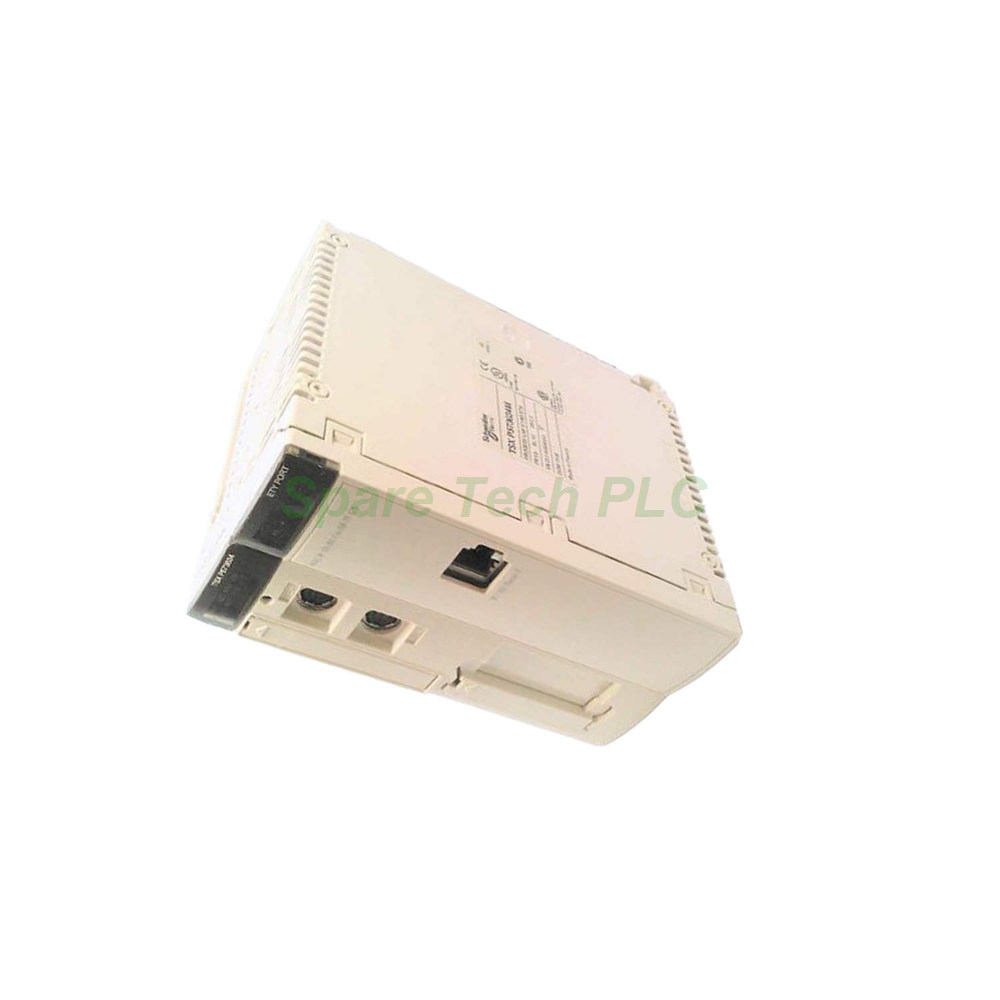

The TSXP573634M serves as a central processing unit within the Modicon Premium automation platform. This Schneider Electric module manages program execution, I/O scanning, and communication tasks for complete PLC stations. Furthermore, it operates exclusively with Unity Pro software, now known as EcoStruxure Control Expert. The processor carries the Transparent Ready concept, enabling direct Ethernet connectivity without additional bridge modules. Therefore, engineers can integrate it easily into factory networks and supervisory systems.
The TSXP573634M provides substantial processing power for demanding control applications. It supports up to 16 racks with 4, 6, or 8 slots, or 8 racks with 12 slots. Additionally, the module handles 1024 discrete I/O points and 128 analogue I/O points. Memory configuration includes 192 kB internal RAM for program and data storage without a PCMCIA card. However, installing a PCMCIA card expands program memory to 1792 kB and adds up to 16384 kB of data storage.
Communication features include one Ethernet TCP/IP RJ45 port supporting 10BASE-T/100BASE-TX. Besides, the processor offers a non-isolated RS485 serial link through two female mini DIN connectors. For execution, the TSXP573634M achieves a Boolean instruction time of 0.12 µs without a PCMCIA card. Specifically, it reaches 6.72 Kinst/ms for 100% Boolean logic in this configuration. The application structure supports 1 master task, 1 fast task, and 64 event tasks.
The TSXP573634M occupies a double module format on the backplane. Its net weight is 0.64 kg, and current consumption reaches 1900 mA at 5 V DC. Operating temperature ranges from 0 to 60 °C, while storage temperature spans -25 to 70 °C. Moreover, the unit tolerates relative humidity between 10% and 95% without condensation. The protection rating is IP20, and the module carries CE marking along with marine certifications.
First, verify that your Modicon Premium rack provides sufficient adjacent slots for this double-format module. Next, align the TSXP573634M with the backplane connector and insert it firmly into place. Subsequently, secure the module using the mounting screws at the top and bottom. For programming, connect a PC running Unity Pro software to the Ethernet port or the RS485 terminal. Finally, configure the I/O addresses and communication parameters within the software environment before starting the application.
1 x Schneider TSXP573634M Unity Processor
1 x Anti-static Protective Bag
1 x Carton Packaging
Q1: Which software programs the TSXP573634M?
A: The TSXP573634M requires Unity Pro software for configuration and programming. This platform is now called EcoStruxure Control Expert.
Q2: Does this processor need a PCMCIA card?
A: Internal RAM provides 192 kB for basic applications. However, complex programs benefit from a PCMCIA card to unlock 1792 kB program memory.
Q3: What is the delivery method for this module?
A: We ship the TSXP573634M through Fedex, UPS, or DHL express services for fast and traceable delivery.
Q4: How many I/O points can this processor handle?
A: The TSXP573634M supports up to 1024 discrete I/O and 128 analogue I/O points across its rack configuration.
Q5: Is the Schneider TSXP573634M still available?
A: While the manufacturer lists an end-of-service date, we maintain stock of brand new units for maintenance and system expansion.
