Schneider TSXPSY3610M Power Supply Module 50W

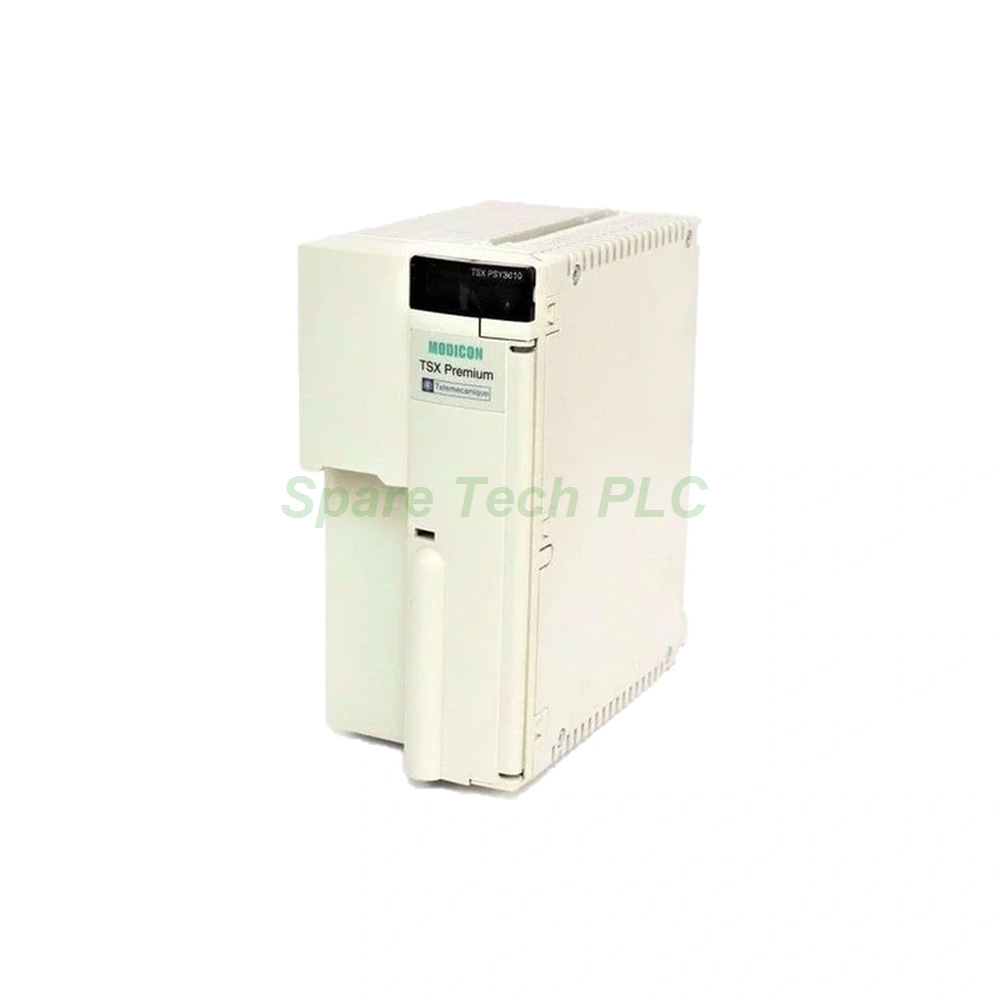

TSXPSY3610M Modicon Premium 50W Power Supply Module

Product Introduction

The Schneider Electric TSXPSY3610M provides dependable power for the Modicon Premium automation platform. This double-format module converts a 24V DC input into regulated secondary outputs. It delivers 35W at 5V DC and 19W at 24V DC. Consequently, it supports both logic circuits and relay loads effectively. Its robust protection features ensure system safety and longevity.

Input and Output Specifications

The TSXPSY3610M operates with a primary voltage range of 19.2 to 30V DC. Its maximum input current reaches 2700mA at 24V DC. The inrush current peaks at 150A, with an I²t rating of 20 A².s. Furthermore, the total useful secondary power is rated at 50W. Specifically, the 5V DC output delivers 7A for logic power. Meanwhile, the 24V DC output provides 0.6A for relay supplies.

Additionally, this power supply module features fast response to microbreaks. It maintains operation during interruptions up to 1ms. This ensures continuous system performance during brief power disturbances. The module also carries comprehensive protection circuits. It guards against overload, overvoltage, and short-circuit conditions. These protections apply to both secondary outputs.

Diagnostics and Monitoring

Local status indication is provided by two LED indicators. A green LED signals the presence of output voltages (OK). A red LED indicates a battery fault condition (BAT). Therefore, operators can quickly assess module status visually. This simplifies troubleshooting and reduces downtime significantly.

Compliance and Certifications

The TSXPSY3610M meets numerous international standards and approvals. It complies with IEC 61131-2 and UL 508 standards. Additionally, it holds certifications from major maritime classification societies. These include RMRS, GL, RINA, LR, ABS, DNV, and BV. This makes it suitable for marine and offshore applications.

Moreover, it carries CE marking for European market compliance. The module meets EMC directives 89/336/EEC and 92/31/EEC. It also complies with low-voltage directive 73/23/EEC and 93/68/EEC. For hazardous locations, it is certified for Class I Division 2. This includes Groups A, B, C, and D per CSA standards.

Environmental and Mechanical Specifications

This power supply module operates reliably in harsh conditions. Its ambient operating temperature ranges from 0 to 60°C. For storage, it withstands temperatures from -25 to 70°C. Relative humidity tolerance is 10 to 95% without condensation during operation. Meanwhile, storage allows 5 to 95% humidity without condensation.

The TSXPSY3610M functions at altitudes up to 2000 meters. Its protective treatment is classified as TC for enhanced durability. The module offers IP20 protection against solid objects. It is rated for pollution degree 2 environments. Dielectric strength is rated at 2000V between primary and earth. Similarly, it provides 2000V isolation between primary and secondary circuits.

Packaging and Logistics

Each Schneider TSXPSY3610M module ships in a static-shielded box. The package includes the power supply unit and essential documentation. All items are carefully packed to prevent transit damage. We ship globally using trusted courier partners. Choose FedEx, UPS, or DHL for fast, tracked delivery.

Frequently Asked Questions (FAQ)

1. What is the total output power of the TSXPSY3610M?
The TSXPSY3610M provides a total useful secondary power of 50W. This is split between 35W at 5V DC and 19W at 24V DC. Both outputs are regulated and protected.

2. Can this power supply handle marine environment approvals?
Yes, the TSXPSY3610M holds multiple marine certifications. It is approved by DNV, BV, LR, ABS, RINA, and GL. This makes it ideal for shipboard automation systems.

3. What protections does the TSXPSY3610M include?
This module includes overload, overvoltage, and short-circuit protection. These protections apply to both secondary output circuits. They safeguard connected equipment from electrical faults.

4. What is the input voltage tolerance for this module?
The TSXPSY3610M accepts a primary voltage of 19.2 to 30V DC. Its nominal input is 24V DC. The module draws a maximum current of 2700mA at this voltage.

5. How do I check the operational status of the TSXPSY3610M?
Two front-panel LEDs indicate module status clearly. A green OK LED lights when outputs are present. A red BAT LED signals a battery fault condition.
