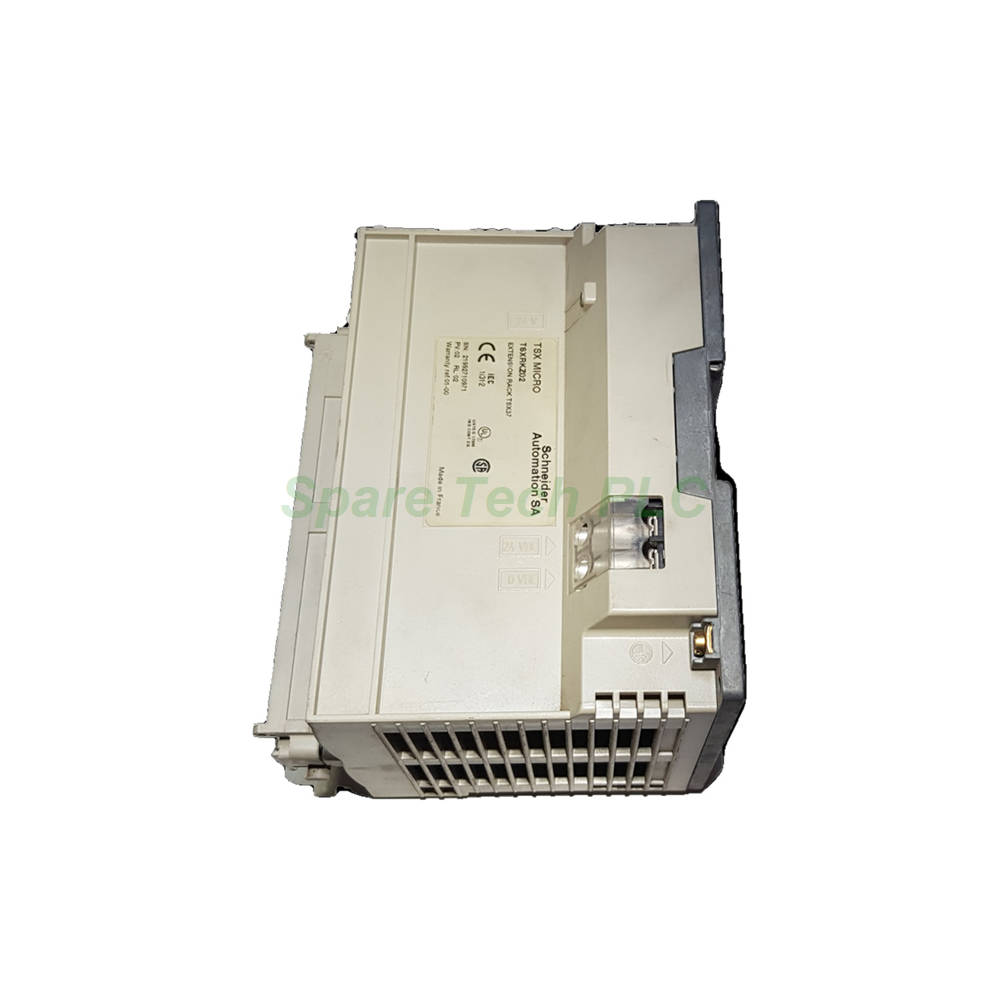

Schneider TSXRKZ02 Expansion Rack 2 Slots

TSXRKZ02 Modicon TSX Micro Mini Extension Rack

Product Introduction

The Schneider Electric TSXRKZ02 offers a compact extension solution for the Modicon TSX Micro automation platform. It adds two physical slots to your existing PLC configuration. This allows you to install additional I/O modules as your application expands. Therefore, you can grow system capacity without purchasing a completely new main rack. This rack delivers a cost-effective path for future system upgrades.

Key Technical Specifications

The TSXRKZ02 provides a simple but essential function in the TSX Micro ecosystem. Its rack capacity totals two slots for discrete or analog modules. The unit remains compact and lightweight at roughly 0.63 kg. Notably, this rack employs a passive backplane architecture. Hence, it requires no active electronics or dedicated power source for normal operation.

Additionally, the physical dimensions follow standard TSX Micro module formats. Official documentation confirms this extension rack works specifically with TSX 37 series PLCs. These include models like the TSX 37-10, TSX 37-21, and TSX 37-22. Upon connection, the system automatically recognizes each module by its slot position. Consequently, you do not need complex addressing configurations for proper operation.

Installation and Usage Guidelines

Installing the TSXRKZ02 follows a straightforward procedure consistent with standard PLC practices. First, mount the rack securely onto a flat panel using the provided mounting holes. Ensure the ambient temperature stays between 0°C and +60°C for optimal reliability. Next, insert your required I/O modules into the two available slots. Finally, link the expansion rack to the main PLC rack using a compatible extension cable.

Moreover, users should remember that most systems support only one extension rack per PLC. Proper grounding and noise isolation techniques will maintain signal integrity. For detailed wiring diagrams and mechanical drawings, consult the official product documentation.

Packaging and Logistics

Each Schneider TSXRKZ02 rack comes securely packaged to prevent transit damage. The box contains the extension rack unit and basic installation instructions. We carefully pack all items in protective materials. For global shipping, we offer premium courier services. You can select FedEx, UPS, or DHL for fast, tracked delivery.

Frequently Asked Questions (FAQ)

1. How many slots does the TSXRKZ02 extension rack provide?
The TSXRKZ02 provides 2 slots for additional I/O modules. It expands the capacity of Modicon TSX Micro PLC systems efficiently.

2. Which PLC series is the TSXRKZ02 compatible with?
This rack works specifically with the Modicon TSX Micro automation platform. It commonly serves TSX 37 series PLCs like the 37-10, 37-21, and 37-22.

3. Does the TSXRKZ02 require a separate power supply?
No, the TSXRKZ02 features a passive backplane design. It draws all necessary power directly from the main PLC rack connection.

4. What is the weight of the TSXRKZ02 rack?
The TSXRKZ02 weighs approximately 0.63 kg. Its lightweight design simplifies installation inside control cabinets.

5. How many extension racks can connect to one PLC?
Typically, only one TSXRKZ02 extension rack can connect per TSX Micro PLC system. This approach ensures system stability and simplifies configuration.
