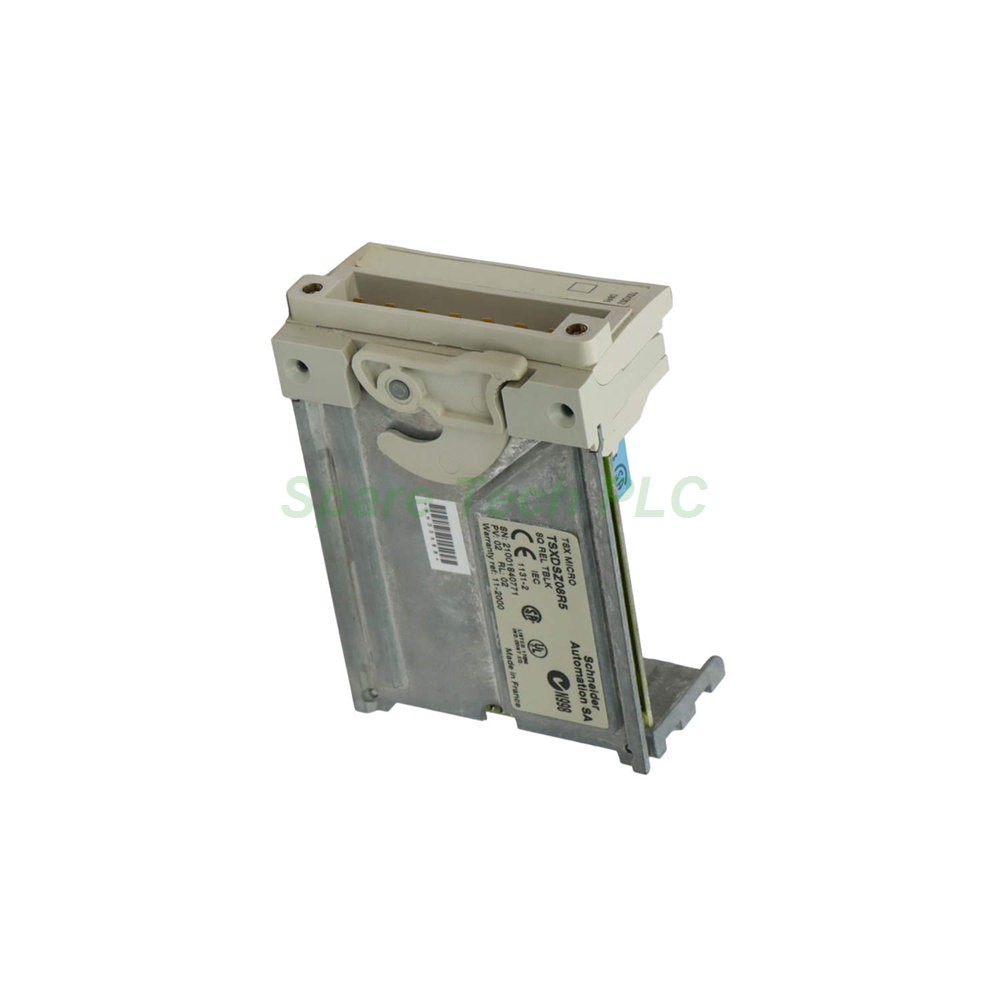

Schneider TSXDSZ08R5 Relay Output Module

TSXDSZ08R5 Modicon Micro Relay Module 8-Channel

Product Introduction

The Schneider Electric TSXDSZ08R5 offers eight discrete relay outputs in a compact form factor. It is a core component within the Modicon TSX Micro automation platform. This module handles diverse load types efficiently. Its screw terminal block simplifies wiring significantly. Therefore, it suits various industrial applications perfectly.

Key Technical Specifications

The TSXDSZ08R5 supports a wide output voltage range. It operates from 19 to 264 V AC and 10 to 34 V DC. The conventional free air thermal current (Ith) is rated at 3 A per channel. This relay module features normally open (NO) contact composition. Its response time is less than 10 milliseconds for rapid actuation.

Furthermore, power consumption varies depending on the load type. For resistive loads at 24 V AC, it consumes 50 VA. At 110 V AC and 220 V AC, consumption reaches 220 VA respectively. For inductive loads, the TSXDSZ08R5 handles 24 VA at 24 V AC. Meanwhile, it manages 220 VA at 220 V AC for inductive loads as well. The module's internal current consumption is only 85 mA. Power dissipation is rated at a low 1.5 W, ensuring energy efficiency.

Insulation is another strong point of this output module. It provides 1500 V isolation for one second. The insulation resistance is rated at 10 mOhm. Consequently, it offers excellent protection against electrical faults. Additionally, the module requires external fast-blow fuses. These must be calibrated according to the specific load connected.

Mechanical and Environmental Data

This Modicon relay module is built for demanding environments. It operates reliably within standard industrial temperature ranges. The module's robust construction ensures long-term durability. Its compact design saves valuable space inside control cabinets. Installation is straightforward using the provided screw terminals.

Moreover, this product is not classified as a Green Premium product. It will not be compliant with certain future sustainability standards. Users should consider this when planning for long-term environmental compliance. Nevertheless, it remains a dependable choice for existing installations. The contractual warranty period covers 18 months from purchase.

Installation and Wiring Guide

Proper installation maximizes the TSXDSZ08R5 module's performance. First, ensure the power supply is disconnected before wiring. Mount the module securely onto the Modicon TSX Micro rack. Next, connect the field devices to the screw terminal block. Pay attention to the polarity and voltage ratings for each channel.

Additionally, install fast-blow fuses on each output circuit. The wiring diagram indicates these as "FU". Select fuse ratings based on your specific load characteristics. This protects the module from overcurrent conditions. Finally, verify all connections before restoring power. Test each channel individually to confirm correct operation.

Packaging and Logistics

Each Schneider TSXDSZ08R5 module ships in a protective anti-static package. The box includes the module itself and a terminal block connector. Installation instructions are provided for quick reference. We ship all orders using premium courier services. Choose from FedEx, UPS, or DHL for reliable delivery.

Frequently Asked Questions (FAQ)

1. What types of loads can the TSXDSZ08R5 switch?
This relay module switches both AC and DC loads effectively. It handles resistive and inductive loads up to 3A. For example, it controls contactors, solenoids, and indicator lights.

2. What is the response time of this output module?
The TSXDSZ08R5 delivers a very fast response time. It typically switches within 10 milliseconds. This ensures precise control in time-critical applications.

3. How do I protect the TSXDSZ08R5 from overcurrent?
You must install external fast-blow fuses on each output circuit. The fuse rating depends on your specific load current. Refer to the wiring diagram for proper fuse placement.

4. Is the TSXDSZ08R5 compatible with other Modicon platforms?
Specifically, this module works with the Modicon TSX Micro series. It may not fit other Modicon platforms directly. Always verify compatibility with your system's rack.

5. What is the isolation voltage rating for this module?
The TSXDSZ08R5 provides 1500V isolation for one second. This high isolation protects the control system from voltage spikes. It enhances overall system safety and reliability.
