Schneider TSXDEY16D2 Discrete Input Module

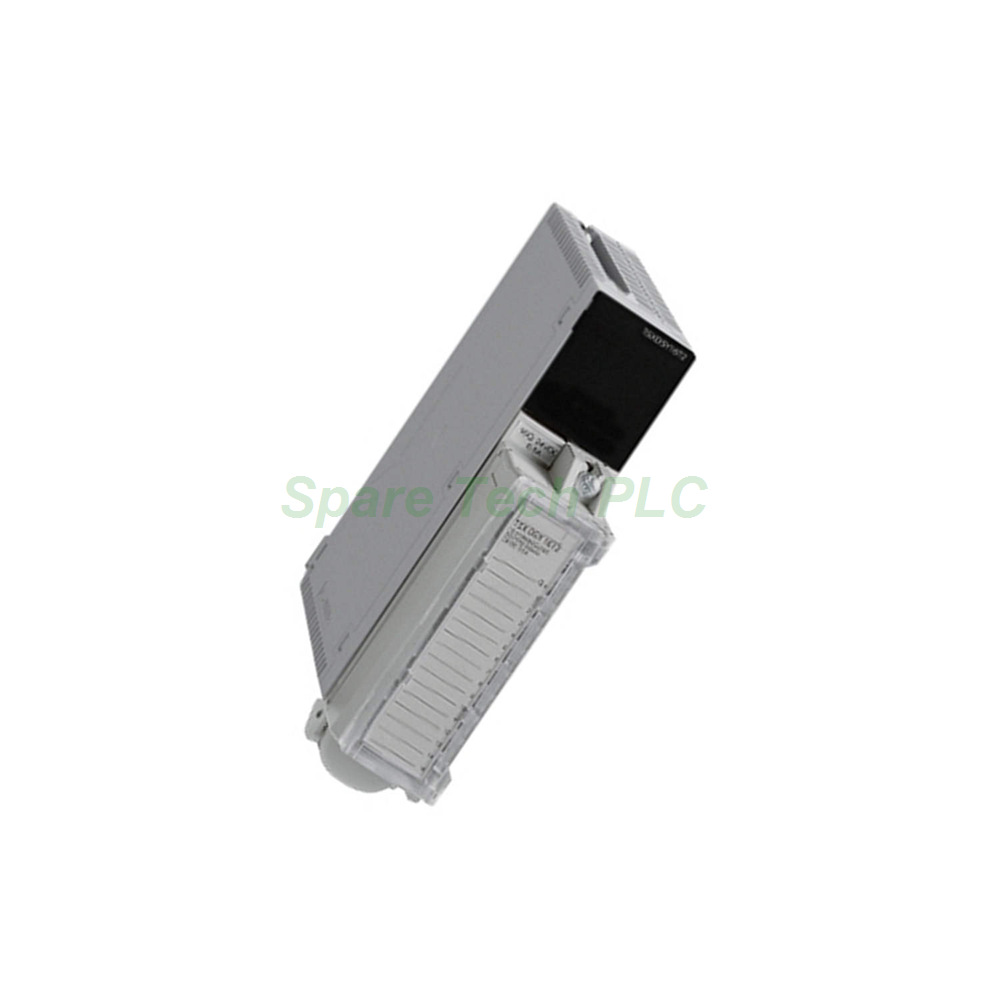

Schneider TSXDEY16D2 Discrete Input Module for Modicon Premium

Product Introduction

The TSXDEY16D2 functions as a discrete input module inside the Modicon Premium automation platform. This Schneider Electric component collects binary signals from field devices and delivers them to the PLC processor. Furthermore, it supports 16 isolated current sink inputs that comply with EN/IEC 61131-2 type 2 standards. The module accepts 24 V DC positive voltage and works with 2-wire or 3-wire proximity sensors. Therefore, system integrators can use it across many factory automation tasks.

Technical Specifications

The TSXDEY16D2 provides 16 discrete input channels with galvanic isolation. Each channel draws a nominal input current of 7 mA at 24 V DC. Additionally, the input impedance reaches 4000 Ohm when the channel sits in state 1. Voltage thresholds remain clearly defined, with state 1 guaranteed at >= 11 V and state 0 guaranteed at <= 5 V. Current thresholds follow the same logic, requiring >= 6.5 mA for state 1 and <= 2 mA for state 0.

Switching and Response Behaviour

Response time for this TSXDEY16D2 module stays at <= 7 ms for standard filtering and 4 ms for fast filtering. Besides, the sensor power supply ranges from 19 V to 30 V, giving flexibility for different field devices. Insulation resistance measures < 10 MOhm at 500 V DC, which protects the backplane from leakage. Power dissipation equals 1 W plus 0.15 W per active channel.

Electrical and Mechanical Parameters

Electrical connection uses screw terminals, simplifying wiring during commissioning. The module consumes 135 mA at 24 V DC and 80 mA at 5 V DC from the rack supply. Meanwhile, dielectric strength reaches 1500 V AC at 50/60 Hz for safe isolation. The TSXDEY16D2 adopts a standard module format and weighs only 0.3 kg. Its compact build allows dense installation inside control cabinets.

Environmental Conditions

Operating temperature for the TSXDEY16D2 spans 0 to 60 °C, while storage temperature covers -25 to 70 °C. Moreover, relative humidity tolerates 10% to 95% without condensation during operation. The unit operates at altitudes up to 2000 m and carries IP20 protection. It also holds CE marking plus marine certifications such as ABS, BV, DNV, GL, LR, RINA, and RMRS.

Installation Guide

First, confirm that the Modicon Premium rack has one free standard slot for this TSXDEY16D2 module. Next, slide the unit into the backplane connector until it seats firmly. After that, tighten the retaining screws to secure the module body. Then, wire the field sensors to the screw terminals while observing the 24 V DC polarity. Finally, configure the input addresses in Unity Pro and verify each channel before startup.

Packaging List

• 1 x Schneider TSXDEY16D2 Discrete Input Module

• 1 x Anti-static Protective Bag

• 1 x Carton Packaging

Frequently Asked Questions

Q1: What signal type does the TSXDEY16D2 accept?
A: The TSXDEY16D2 accepts 24 V DC positive logic signals from 2-wire or 3-wire proximity sensors.

Q2: How many input channels does this module provide?
A: It offers 16 isolated current sink channels that conform to EN/IEC 61131-2 type 2.

Q3: What is the response time of the TSXDEY16D2?
A: Response time stays at <= 7 ms normally and 4 ms with fast filtering enabled.

Q4: Which connection method does this module use?
A: The TSXDEY16D2 uses screw terminals for straightforward field wiring.

Q5: How is the TSXDEY16D2 shipped?
A: We dispatch this module through Fedex, UPS, or DHL express services with tracking.
