Schneider BMXAMI0810 X80 Analog Input Module

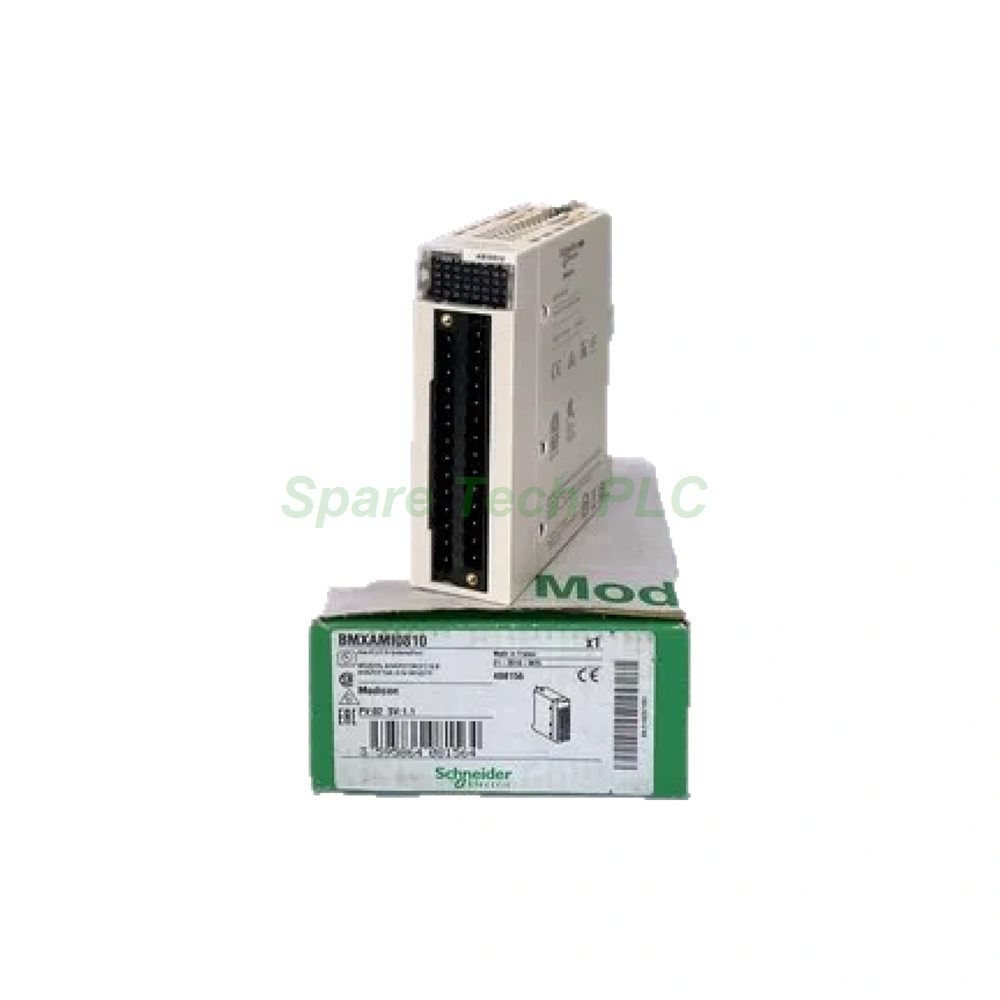

Schneider BMXAMI0810 8-Channel Analog Input Module

Product Introduction

The BMXAMI0810 serves the Schneider Electric Modicon X80 platform as a precision analog input module. It captures 8 high-speed channels with full channel-to-channel isolation. Engineers deploy it in process control, test benches, and high-noise environments. Both M340 and M580 racks accept this module directly.

Technical Specifications

The BMXAMI0810 handles 8 analog input channels with flexible range configuration. Voltage inputs cover ±10V, ±5V, 0-10V, 0-5V, and 1-5V. Current inputs span ±20mA, 0-20mA, and 4-20mA. Resolution reaches 16-bit, expressed as 15-bit plus sign. Accuracy stays within 0.1% of full scale.

Isolation delivers strong protection. Channel-to-channel isolation withstands 300V DC, while channel-to-ground isolation reaches 1400V DC. Conversion time follows a simple rule: 1 ms plus 1 ms per channel, giving 9 ms for all 8 channels. Input impedance is 10 MΩ for voltage and 250 Ω for current. Temperature drift measures 30 ppm/°C on voltage and 50 ppm/°C on current. Furthermore, MTBF reaches 900,000 hours for long-term reliability. A 20-pin terminal block handles field wiring.

Electrical supply comes from the backplane at 24V DC. Power consumption is 1.06W at 24V and 0.32W at 3.3V. Bus current draws 130mA at 24V DC. These modest figures simplify cabinet thermal design.

Mechanical and Environmental Parameters

Dimensions measure 100 × 28 × 93 mm (H×W×D). Weight is 0.165 kg. Operating temperature ranges from 0°C to +60°C, and storage spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation. The IP20 rating requires mounting inside a protected enclosure.

Installation Guide

First, insert the BMXAMI0810 into a compatible X80 rack slot. Next, wire analog signals to the 20-pin terminal block. Then configure each channel range in the engineering software. Besides, keep signal cables away from high-voltage wiring to reduce noise. Finally, verify per-channel status LEDs after power-up.

Packaging List

• 1 × Schneider BMXAMI0810 Analog Input Module

• 1 × 20-Pin Terminal Block

• 1 × Product Documentation

Shipping via Fedex, UPS, DHL.

FAQ

Q1: What signal ranges does the BMXAMI0810 support?
A: It supports ±10V, ±5V, 0-10V, 0-5V, 1-5V, ±20mA, 0-20mA, and 4-20mA.

Q2: What is the resolution of this module?
A: Resolution is 16-bit, using 15 bits plus sign.

Q3: How fast is the conversion time?
A: Conversion takes 1 ms plus 1 ms per channel, or 9 ms for 8 channels.

Q4: Does it provide channel isolation?
A: Yes, it offers 300V DC channel-to-channel and 1400V DC channel-to-ground isolation.

Q5: Which PLC platforms support this module?
A: It works with both Schneider M340 and M580 systems.
