Schneider BMXAMI0810H X80 Analog Input Module

Schneider BMXAMI0810H 8-Channel Analog Input Module

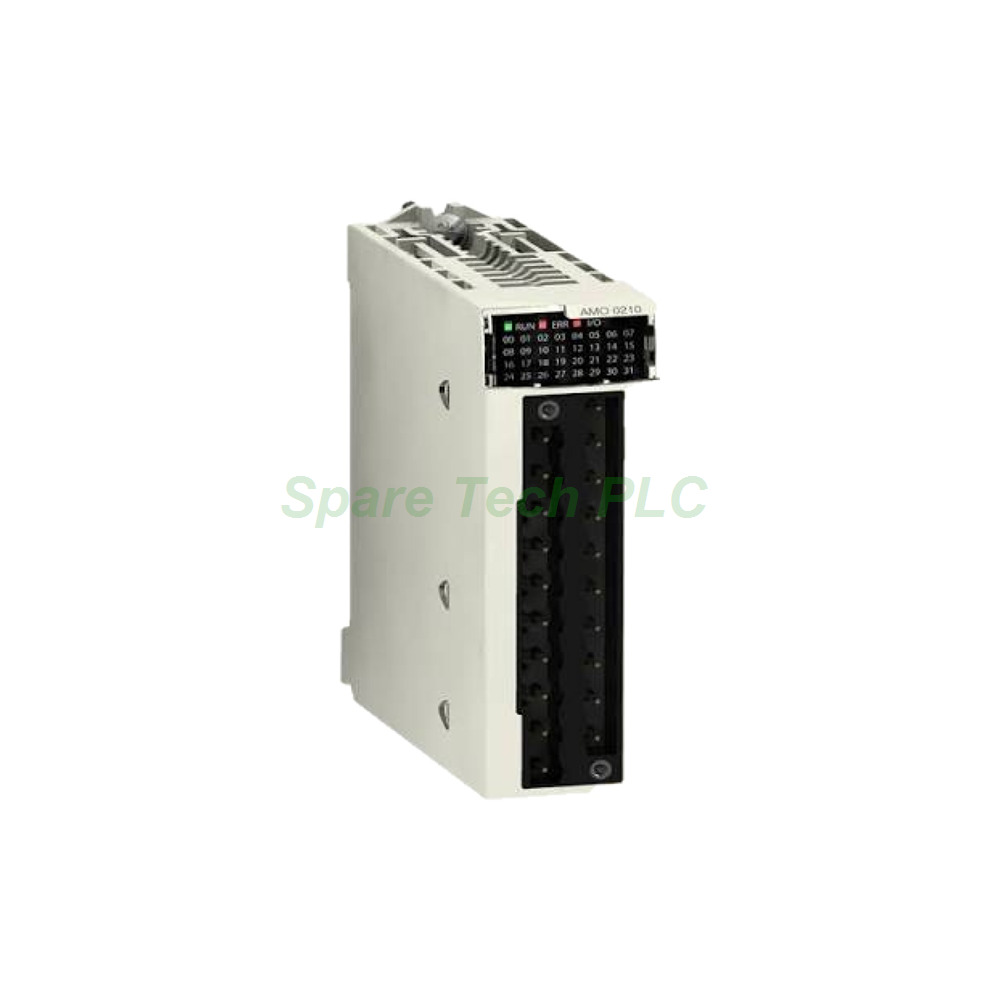

Product Introduction

The BMXAMI0810H extends the Schneider Electric Modicon X80 line with a protective conformal coating. This coating shields the circuitry from moisture, dust, and corrosive contaminants. As a result, the module suits demanding installations such as water treatment, marine systems, and outdoor cabinets. It carries 8 high-speed analog input channels on the shared M340 and M580 platform.

Technical Specifications

The BMXAMI0810H provides 8 analog input channels with multi-range voltage and current capability. Users configure each channel to match the connected sensor or transmitter. Resolution reaches 16-bit for fine measurement detail. Accuracy stays within 0.1% of full scale, which satisfies most process control loops. Channel-to-channel isolation prevents signal interference between inputs. A module status LED supports fast troubleshooting during maintenance.

Power consumption is 3.1W, drawn from a 24V DC supply. Bus current measures 130mA at 24V DC. These values remain close to the standard version, so existing cabinet designs need little change. The conformal coating adds protection without altering the electrical footprint.

Mechanical and Environmental Parameters

Dimensions measure 100 × 28 × 93 mm (H×W×D). Weight is 0.17 kg, slightly above the uncoated model. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation. The protection rating is IP20, so the module still requires a proper enclosure. However, the coating adds an extra barrier against condensation and airborne chemicals.

Installation Guide

First, mount the BMXAMI0810H in a compatible Modicon X80 rack slot. Next, wire analog field signals to the terminal block. Then set each channel range through the engineering software. Besides, avoid touching the coated surface with sharp tools during wiring. Finally, confirm the status LED and per-channel readings after power-up.

Packaging List

• 1 × Schneider BMXAMI0810H Analog Input Module

• 1 × Terminal Block

• 1 × Product Documentation

Shipping via Fedex, UPS, DHL.

FAQ

Q1: What makes the BMXAMI0810H different from the BMXAMI0810?
A: It carries a conformal coating for harsh environments.

Q2: How many channels does this module offer?
A: It provides 8 high-speed analog input channels.

Q3: What is the resolution and accuracy?
A: Resolution is 16-bit, and accuracy stays within 0.1% of full scale.

Q4: Does it support both voltage and current signals?
A: Yes, it accepts multi-range voltage and current inputs.

Q5: Which platforms support the BMXAMI0810H?
A: It runs on both Schneider M340 and M580 systems.
