Schneider BMXART0414 X80 Temperature Input Module

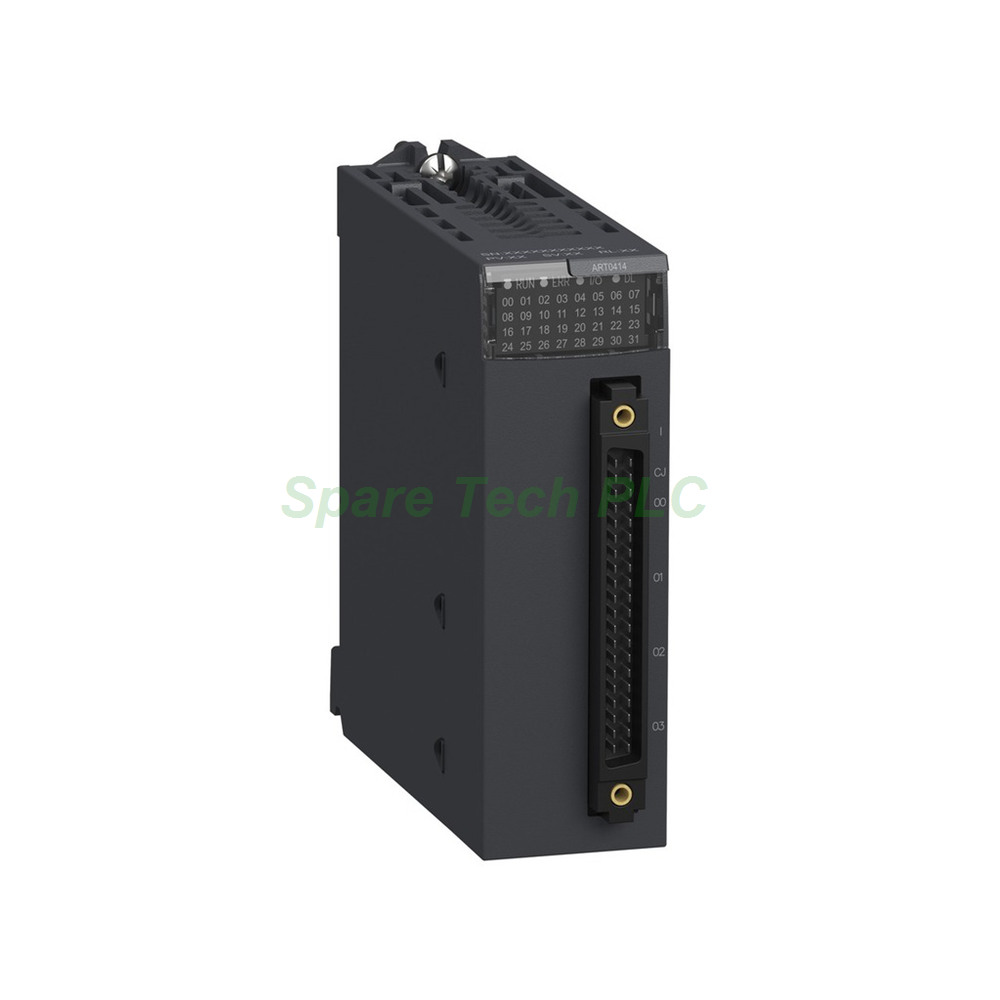

Schneider BMXART0414 4-Channel Temperature Input Module

Product Introduction

The BMXART0414 brings temperature sensing to the Schneider Electric Modicon X80 platform. It supports both RTD and thermocouple sensors across 4 isolated channels. Process engineers rely on it for furnaces, boilers, and heat exchangers. Since it fits M340 and M580 racks, integration stays simple.

Technical Specifications

The BMXART0414 offers 4 temperature input channels, each configurable per channel. RTD support covers PT100, PT1000, Cu10, and Ni100 sensors. Thermocouple support includes J, K, T, E, R, S, B, and N types. Resolution reaches 16-bit for smooth, stable readings. Accuracy is 0.1°C or better on RTD inputs and within 1% on thermocouple inputs. Channel-to-channel isolation blocks interference between sensors. Module status and per-channel LEDs simplify fault finding. A 20-pin terminal block handles all field wiring.

Power consumption is 2.4W, supplied through the backplane at 24V DC. Bus current draws 100mA at 24V DC. These modest values keep cabinet heat low and power budgeting easy.

Mechanical and Environmental Parameters

Dimensions measure 100 × 28 × 93 mm (H×W×D). Weight is 0.16 kg, making rack loading negligible. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation. The IP20 rating means the module needs mounting inside a clean enclosure.

Installation Guide

First, insert the BMXART0414 into a compatible X80 rack slot. Next, connect RTD or thermocouple wiring to the 20-pin terminal block. Then set the sensor type for each channel in the software. Besides, use shielded cable for thermocouple runs to reduce noise. Finally, check per-channel status LEDs and confirm stable readings.

Packaging List

• 1 × Schneider BMXART0414 Temperature Input Module

• 1 × 20-Pin Terminal Block

• 1 × Product Documentation

Shipping via Fedex, UPS, DHL.

FAQ

Q1: Which sensor types does the BMXART0414 support?
A: It supports PT100, PT1000, Cu10, Ni100 RTDs and J, K, T, E, R, S, B, N thermocouples.

Q2: What is the accuracy on RTD inputs?
A: RTD accuracy is 0.1°C or better.

Q3: How many channels does this module provide?
A: It provides 4 isolated temperature input channels.

Q4: Is channel-to-channel isolation included?
A: Yes, each channel is isolated from the others.

Q5: Which PLC platforms accept this module?
A: It works with both Schneider M340 and M580 systems.
