Schneider BMXAMM0600H X80 Analog Module

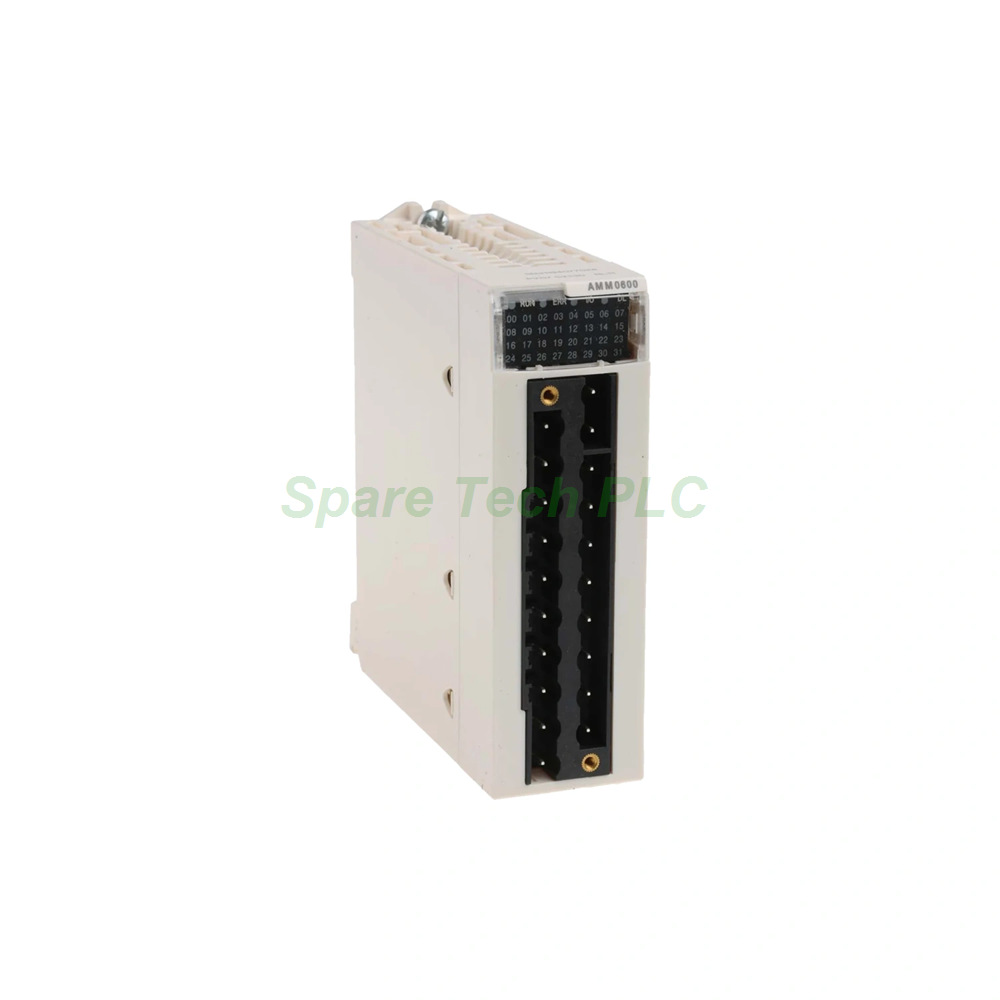

Schneider BMXAMM0600H 6-Channel Analog Module

Product Introduction

The BMXAMM0600H adds flexible analog control to the Schneider Electric Modicon X80 platform. Each of its 6 channels works as either an input or an output. A conformal coating protects the circuitry from moisture, dust, and corrosive vapors. Therefore, this module suits wastewater plants, marine systems, and remote cabinets. It fits both M340 and M580 racks without modification.

Technical Specifications

The BMXAMM0600H provides 6 multi-function analog channels, configurable as AI or AO. Voltage and current signals are both supported across multiple ranges. Resolution reaches 16-bit, expressed as 15-bit plus sign. Accuracy stays within 0.1% of full scale, which meets most process control needs. Channel-to-channel isolation blocks interference between loops. A module status LED supports quick fault detection during maintenance.

Power consumption is 3.1W from a 24V DC supply. Bus current draws 130mA at 24V DC. These values match the standard uncoated version, so cabinet power budgets need no change. The coating adds environmental protection without altering the electrical profile.

Mechanical and Environmental Parameters

Dimensions measure 100 × 28 × 93 mm (H×W×D). Weight is 0.17 kg. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation. The protection rating is IP20, so the module still needs a proper enclosure. However, the conformal coating adds a strong barrier against condensation and chemical attack.

Installation Guide

First, insert the BMXAMM0600H into a compatible Modicon X80 rack slot. Next, wire analog field devices to the terminal block. Then configure each channel as input or output in the engineering software. Besides, avoid scratching the coated surface with sharp tools. Finally, verify the status LED and confirm stable channel readings.

Packaging List

• 1 × Schneider BMXAMM0600H Multi-function Analog Module

• 1 × Terminal Block

• 1 × Product Documentation

Shipping via Fedex, UPS, DHL.

FAQ

Q1: What makes the BMXAMM0600H different from standard modules?
A: It carries a conformal coating for harsh environments.

Q2: Can each channel work as input or output?
A: Yes, all 6 channels are configurable as AI or AO.

Q3: What is the resolution and accuracy?
A: Resolution is 16-bit, and accuracy stays within 0.1% of full scale.

Q4: Does it support both voltage and current signals?
A: Yes, it handles configurable voltage and current ranges.

Q5: Which PLC platforms support this module?
A: It runs on both Schneider M340 and M580 systems.
