Product Introduction

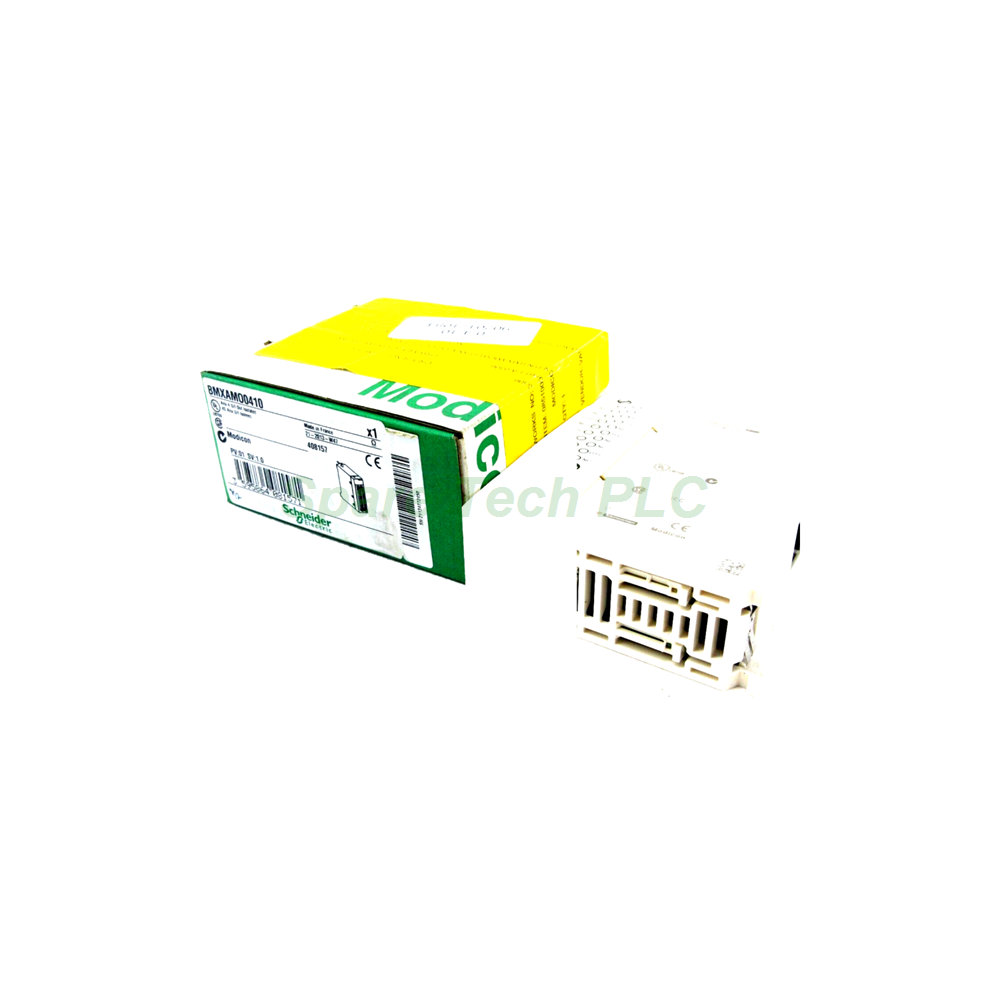

The BMXAMO0410 extends the Modicon X80 shared I/O platform with four analog output channels. Schneider Electric built this module for M340 and M580 controllers. Plant engineers rely on it to drive valves, positioners, and variable-speed drives. Moreover, output isolation protects each channel from electrical interference in harsh factory environments.
Technical Specifications
The BMXAMO0410 delivers four independent output channels. Each channel works in voltage or current mode. Specifically, voltage output covers ±10V. Current output supports 4-20mA. Therefore, one module handles mixed signal requirements without extra hardware.
Resolution reaches 12 bits across all channels. Accuracy stays within ≤ 0.25% full scale from 0°C to +60°C. At 25°C, accuracy improves to ≤ 0.1% full scale. Furthermore, temperature drift remains as low as 45 ppm/°C. This stability suits precision control loops in process industries.
Electrical Parameters
The backplane supplies 24V DC to the BMXAMO0410. Power consumption reaches 2.3 W. Bus current draw equals 95 mA at 24V DC. In addition, output isolation separates field wiring from the internal bus. A module status LED provides fast visual diagnostics. The unit connects through a 20-pin terminal block.
Mechanical and Environmental Data
Dimensions measure 100 × 28 × 93 mm (H×W×D). Weight equals 0.16 kg. The housing carries an IP20 protection rating. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation.
Installation Guide
First, confirm the rack power is switched off. Next, align the BMXAMO0410 with the X80 backplane connector. Push the module inward until it locks into position. Then, wire the 20-pin terminal block for your chosen signal type.
For voltage output, connect the load between the V and COM terminals. For current output, place the load in series with the I and COM terminals. Meanwhile, route analog cables away from motors and relays. Finally, restore power and verify the status LED shows normal operation.
Packaging List
1 × Schneider BMXAMO0410 Analog Output Module
1 × 20-pin Terminal Block
1 × Product Documentation Sheet
Shipping
We ship all orders via Fedex, UPS, or DHL. Delivery typically takes 3-7 business days.
FAQ
Q1: What signal types does the BMXAMO0410 support?
A: It supports ±10V voltage output and 4-20mA current output. You can configure each channel independently.
Q2: Is the BMXAMO0410 compatible with both M340 and M580?
A: Yes. The Modicon X80 platform serves both controllers. Schneider Electric designed this module for shared use across both systems.
Q3: How accurate is this module?
A: Accuracy is ≤ 0.25% full scale from 0°C to +60°C. At 25°C, it reaches ≤ 0.1% full scale for demanding tasks.
Q4: Does the BMXAMO0410 offer channel isolation?
A: Yes. The module provides output isolation, which protects signals from ground loops and electrical noise.
Q5: What power supply does the module need?
A: The backplane delivers 24V DC. Power consumption is 2.3 W, and bus current draw is 95 mA.
