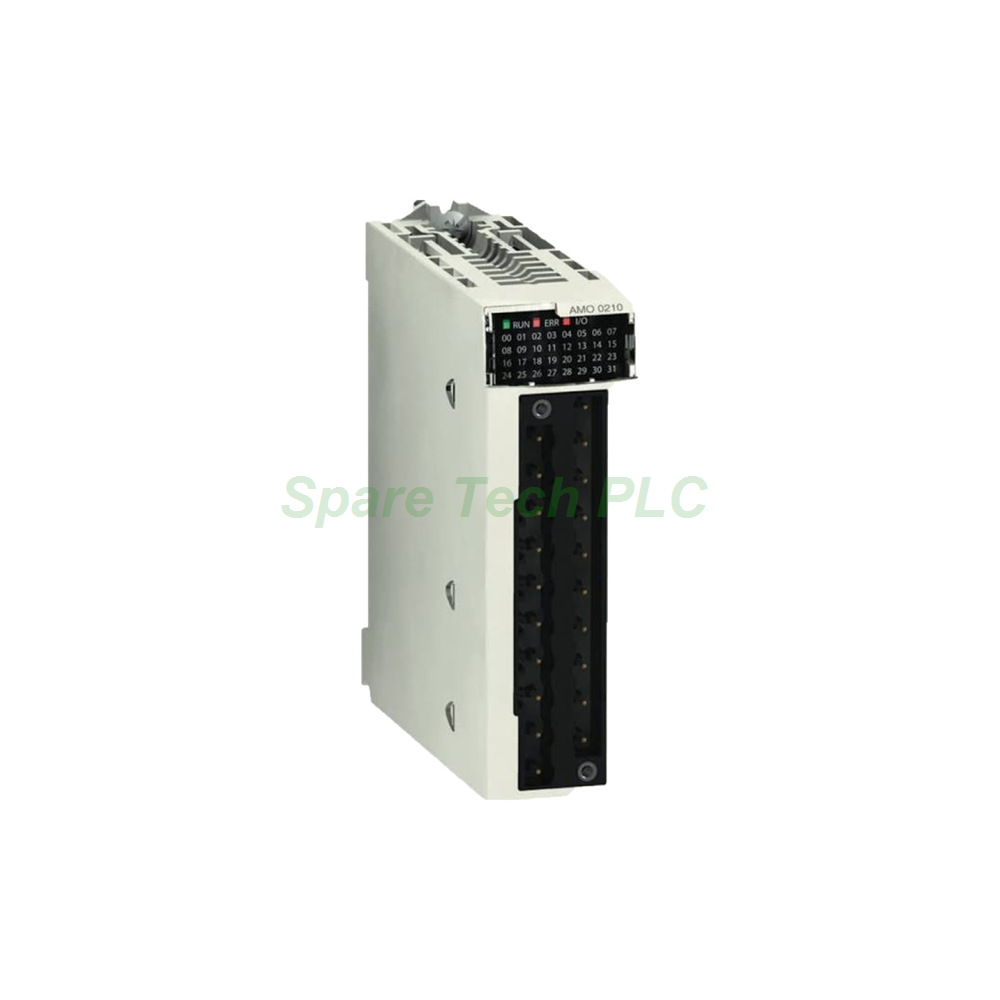

Schneider BMXAMO0210 Modicon X80 Analog Output Module

Product Introduction

The BMXAMO0210 belongs to the Modicon X80 shared I/O platform. Schneider Electric designed this module for both M340 and M580 controllers. Engineers use it to send precise analog signals to actuators, valves, and drives. Additionally, the module offers channel-to-channel isolation for reliable operation in noise-prone plants.

Technical Specifications

The BMXAMO0210 provides two independent output channels. Each channel supports voltage and current modes. Specifically, voltage ranges include ±10V and 0-10V. Current ranges cover 0-20mA and 4-20mA. The module delivers 12-bit resolution for smooth signal control.

Accuracy stays within ≤ 0.25% full scale. Furthermore, channel-to-channel isolation prevents cross-talk between outputs. A module status LED gives quick diagnostic feedback. The unit connects through a 20-pin terminal block.

Electrical Parameters

The backplane supplies 24V DC to the BMXAMO0210. Power consumption reaches 1.8 W. Bus current draw equals 75 mA at 24V DC. Therefore, the module fits standard Modicon X80 racks without extra power supplies.

Mechanical and Environmental Data

Dimensions measure 100 × 28 × 93 mm (H×W×D). Weight equals 0.15 kg. The housing carries an IP20 protection rating. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation.

Installation Guide

First, verify the rack power is off before mounting. Next, align the BMXAMO0210 with the X80 backplane connector. Push the module firmly until it clicks into place. Then, wire the 20-pin terminal block according to your signal type.

For voltage output, connect the load across the V and COM terminals. For current output, wire the load in series with the I and COM terminals. Meanwhile, keep signal cables away from high-voltage lines. Finally, power the rack and check the status LED for normal operation.

Packaging List

• 1 × Schneider BMXAMO0210 Analog Output Module

• 1 × 20-pin Terminal Block

• 1 × Product Documentation Sheet

Shipping

We ship all orders via Fedex, UPS, or DHL. Delivery typically takes 3-7 business days.

FAQ

Q1: What signal types does the BMXAMO0210 support?
A: It supports ±10V, 0-10V, 0-20mA, and 4-20mA outputs. You can configure each channel independently.

Q2: Is the BMXAMO0210 compatible with both M340 and M580?
A: Yes. Schneider Electric designed the Modicon X80 platform as a shared I/O system. Both controllers accept this module.

Q3: How many channels does this module offer?
A: The BMXAMO0210 provides 2 analog output channels with channel-to-channel isolation.

Q4: What is the resolution of the BMXAMO0210?
A: It delivers 12-bit resolution. This gives smooth and accurate analog output control.

Q5: What power supply does the module require?
A: The backplane provides 24V DC. Power consumption is 1.8 W, and bus current draw is 75 mA.
