Schneider BMXDDM3202K X80 Mixed I/O Module

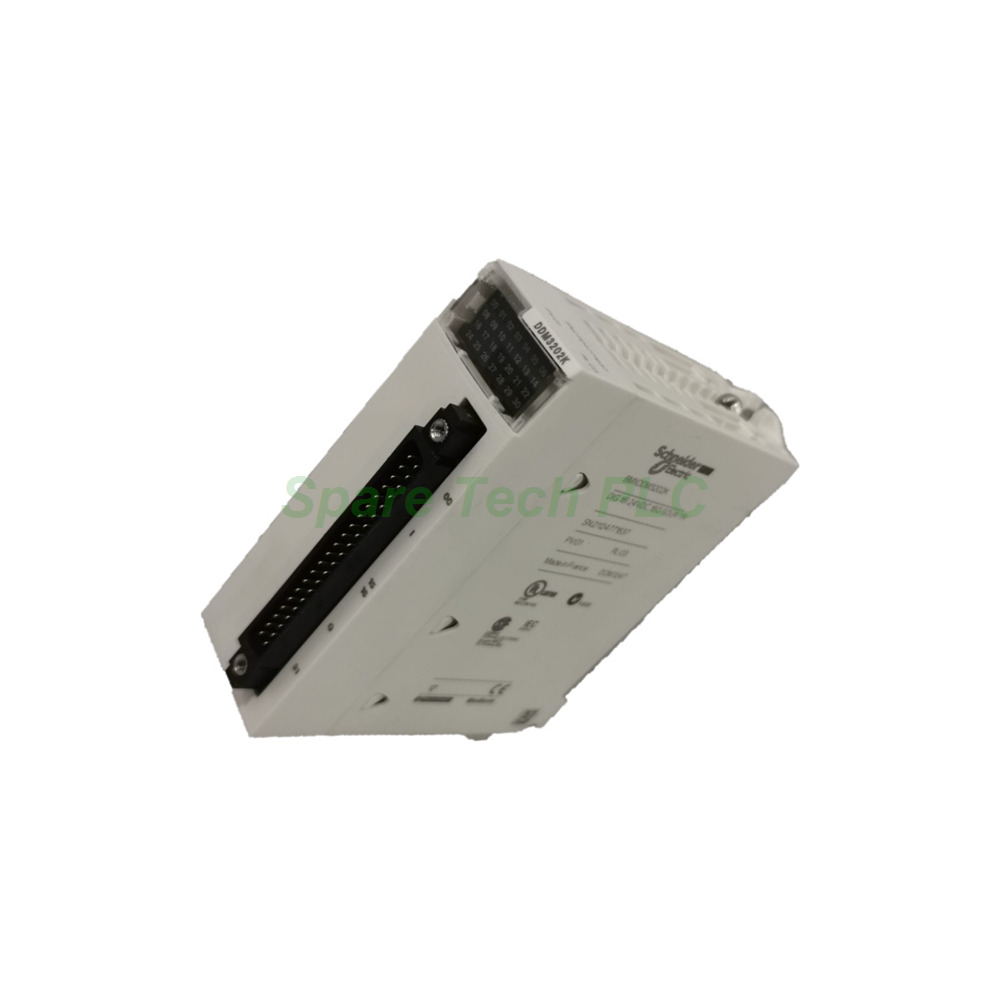

Schneider BMXDDM3202K 32-Channel I/O Module

Product Introduction

The BMXDDM3202K expands the Schneider Electric Modicon X80 family with 32 channels in a single slot. This high-density module combines 16 digital inputs and 16 transistor outputs. System integrators choose it when panel space is limited but channel count is high. It runs on both M340 and M580 platforms.

Technical Specifications

The BMXDDM3202K delivers 32 discrete channels, divided evenly between 16 DI and 16 DO. Input channels accept 24V DC signals with standard positive logic. Output channels use transistor switching at 24V DC for fast response. Resolution and accuracy remain irrelevant because the module handles discrete signals only. Group-to-group isolation separates input and output sections for safer operation. A module status LED gives technicians quick fault visibility. Wiring uses a 40-pin terminal block designed for high-density layouts.

Electrical demand reaches 4.3W power consumption. Bus current draws 180mA at 24V DC. The module requires a stable 24V DC supply. These figures help engineers size power supplies and cabinet cooling correctly.

Mechanical and Environmental Parameters

Dimensions measure 100 × 28 × 93 mm (H×W×D). Weight is only 0.18 kg, so rack loading stays low. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Humidity tolerance sits between 5% and 95% without condensation. The IP20 rating means the module needs protection inside a proper enclosure.

Installation Guide

First, snap the BMXDDM3202K onto a compatible Modicon X80 rack. Next, connect the 24V DC supply to the designated terminals. Then wire field devices through the 40-pin terminal block. Besides, confirm group isolation boundaries before applying power. Finally, monitor the status LED during commissioning.

Packaging List

• 1 × Schneider BMXDDM3202K Mixed I/O Module

• 1 × 40-Pin Terminal Block

• 1 × Product Documentation

Shipping via Fedex, UPS, DHL.

FAQ

Q1: How many channels does the BMXDDM3202K provide?
A: It offers 32 channels, split into 16 digital inputs and 16 transistor outputs.

Q2: What output type does this module use?
A: Outputs are transistor type, switching 24V DC loads.

Q3: Is the module compatible with M580?
A: Yes, it works on both M340 and M580 platforms.

Q4: What is the power consumption?
A: The module consumes 4.3W and draws 180mA at 24V DC.

Q5: What terminal block does it need?
A: It requires a 40-pin terminal block for high-density wiring.
