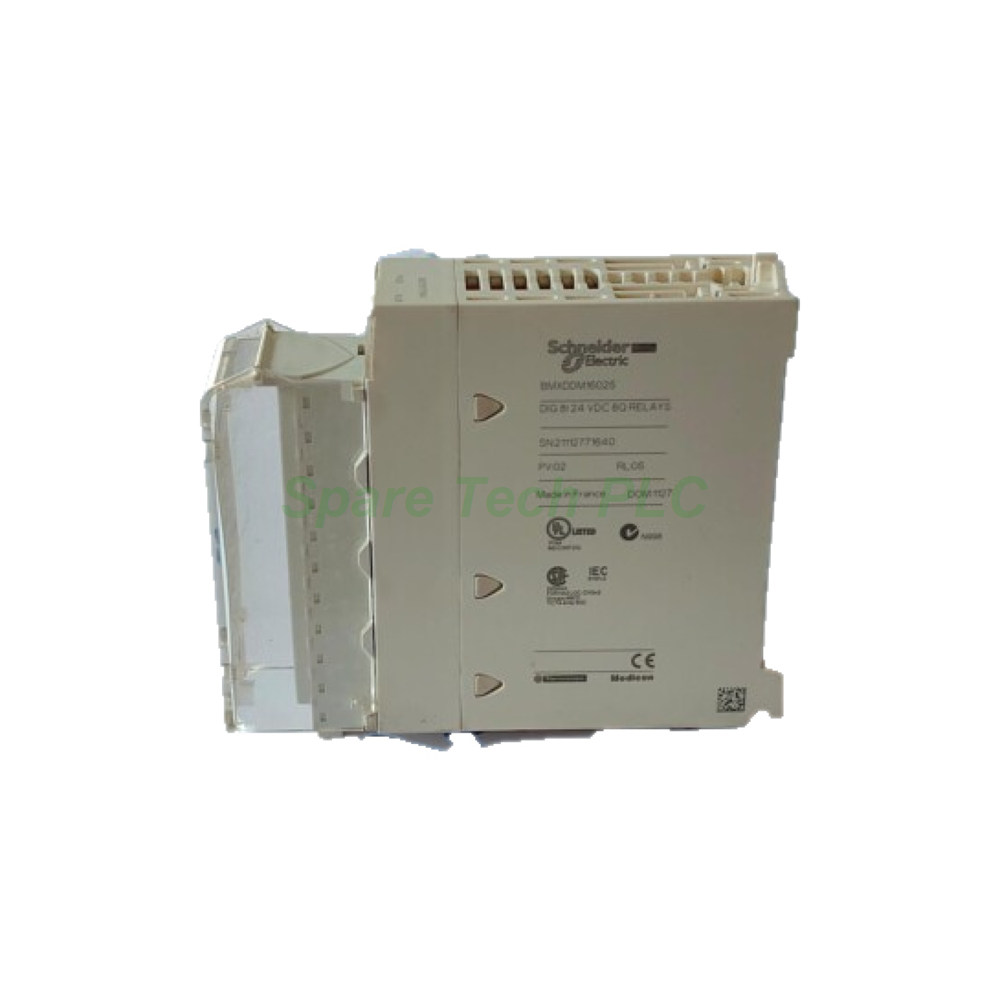

Schneider BMXDDM16025 X80 Mixed I/O Module

Schneider BMXDDM16025 16-Channel I/O Module

Product Introduction

The BMXDDM16025 belongs to the Schneider Electric Modicon X80 series. This mixed module combines 8 digital inputs and 8 relay outputs in one unit. Engineers use it across M340 and M580 platforms for discrete control tasks. Its compact design saves panel space while delivering reliable performance.

Technical Specifications

The BMXDDM16025 provides 16 channels total, split into 8 DI and 8 DO. Input channels operate at 24V DC with positive logic and 3.5mA current. Output channels use relay contacts rated for 24-240V AC or 19-30V DC. Since this is a discrete module, resolution and accuracy do not apply. Input-to-output isolation protects connected equipment. A module status LED supports quick diagnostics. The 20-pin terminal block ensures secure wiring.

Power consumption reaches 2.6W, and bus current draws 110mA at 24V DC. The module needs a 24V DC supply or field supply. These electrical values suit standard industrial control cabinets.

Mechanical and Environmental Parameters

Dimensions measure 100 × 28 × 93 mm (H×W×D), and weight is 0.16 kg. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation. The protection rating is IP20. Therefore, install the module inside a clean enclosure.

Installation Guide

First, mount the BMXDDM16025 onto a Modicon X80 rack. Next, connect the 24V DC supply to the correct terminals. Then wire inputs and outputs through the 20-pin terminal block. Besides, verify polarity before powering the system. Finally, check the status LED to confirm normal operation.

Packaging List

• 1 × Schneider BMXDDM16025 Mixed I/O Module

• 1 × 20-Pin Terminal Block

• 1 × Product Documentation

Shipping via Fedex, UPS, DHL.

FAQ

Q1: What is the input voltage for the BMXDDM16025?
A: Inputs accept 24V DC positive logic at 3.5mA.

Q2: Can the relay outputs switch AC loads?
A: Yes, outputs handle 24-240V AC or 19-30V DC.

Q3: Which PLC platforms support this module?
A: It works with Schneider M340 and M580 systems.

Q4: What is the power consumption?
A: The module consumes 2.6W and draws 110mA at 24V DC.

Q5: How many channels does it offer?
A: It provides 16 channels: 8 digital inputs and 8 relay outputs.
