Product Introduction

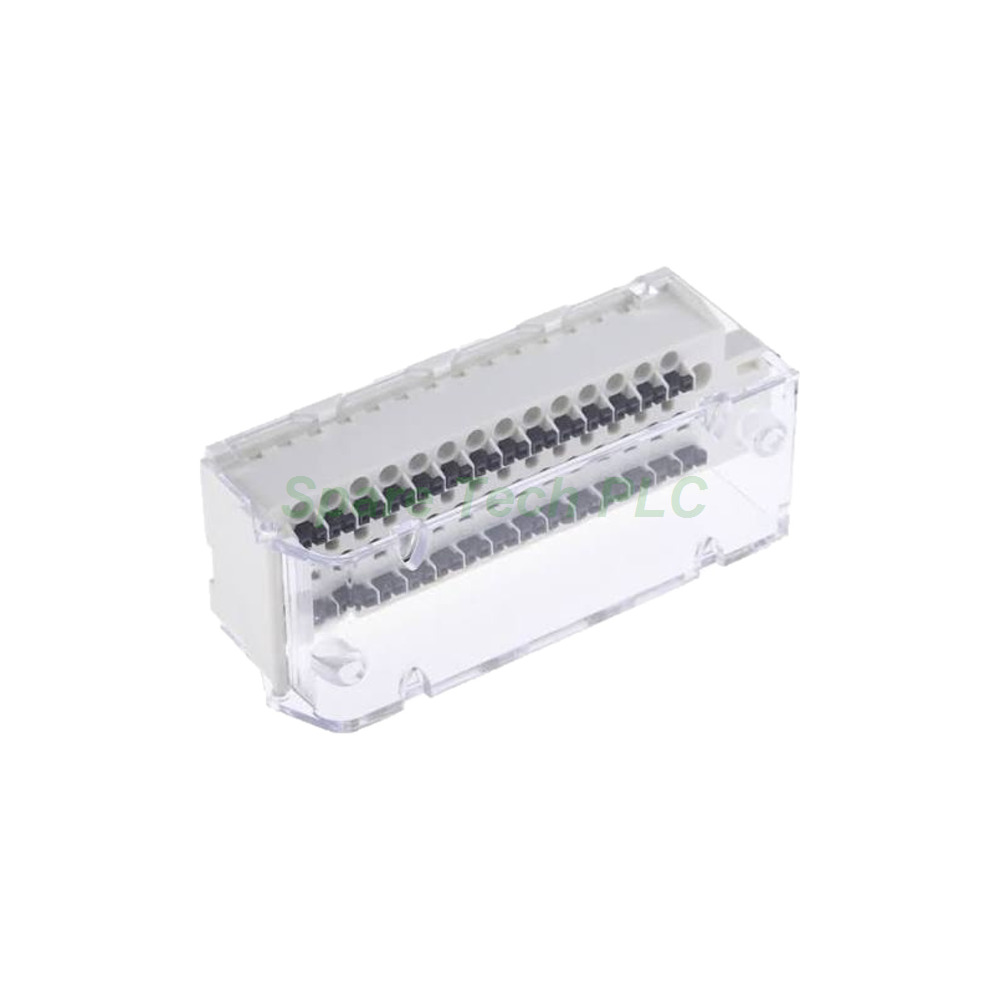

The BMXFTB2820 functions as a feed-through terminal block within the Modicon X80 accessory range. This 28-pin spring unit links field wiring to compatible X80 I/O modules. Technicians use it to terminate sensor and actuator signals quickly. Because it fits modules in both M340 and M580 racks, it supports standardized panel wiring across mixed installations.

Technical Specifications

First, the BMXFTB2820 uses a 28-pin spring clamp design. Spring terminals accept solid and stranded wires without screws. Furthermore, this connection style reduces wiring time during panel assembly and module replacement.

The unit serves as a terminal block accessory only. Specifically, it does not perform any motion control or counting function. Therefore, engineers must pair it with a compatible X80 module to complete a signal path.

Mechanical and Environmental Data

The terminal block matches the standard X80 module profile. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity tolerance stays between 5% and 95%, non-condensing. The protection rating is IP20, so the part requires mounting inside a clean control cabinet.

Installation Guide

Next, follow these steps to fit the BMXFTB2820 correctly.

1. Switch off panel power and verify zero voltage.

2. Confirm the host X80 module uses a 28-pin connection.

3. Align the terminal block with the module connector.

4. Press the block into place until it locks.

5. Insert field wires into the spring terminals.

6. Tug each wire lightly to confirm a firm grip.

7. Restore power and verify signal integrity.

Moreover, label each wire before insertion to simplify future maintenance. Therefore, troubleshooting becomes faster during machine downtime.

Packaging List

• 1 × Schneider BMXFTB2820 28-Pin Spring Terminal Block

• 1 × Product Documentation Sheet

Shipping methods: Fedex, UPS, DHL.

FAQ

Q1: What is the BMXFTB2820 used for?
A: It connects field wiring to compatible 28-pin X80 I/O modules.

Q2: Is this a motion control module?
A: No, it is a terminal block accessory only.

Q3: Which modules does this terminal block fit?
A: It fits X80 modules that use a 28-pin connection.

Q4: What wire connection style does it use?
A: It uses spring clamp terminals for solid and stranded wires.

Q5: Does it work with M340 and M580 racks?
A: Yes, the Modicon X80 platform supports both controller families.
