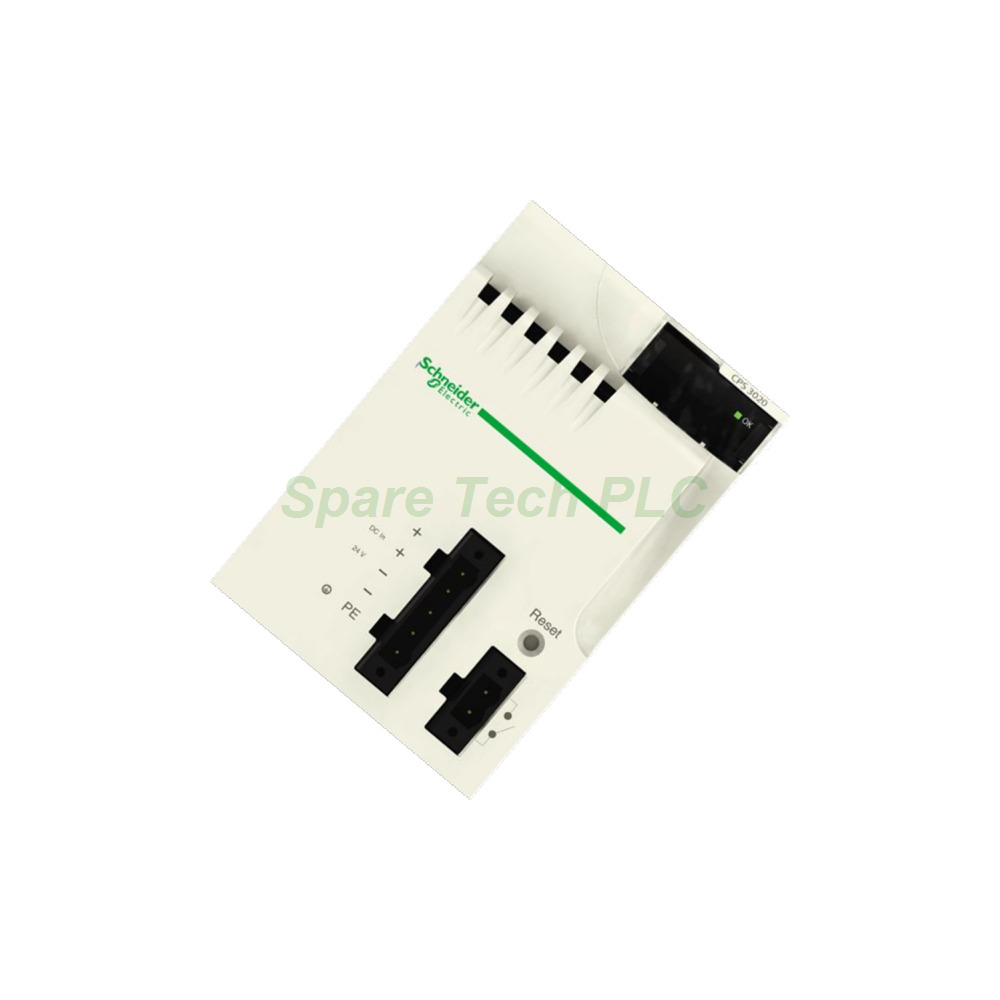

Schneider Electric BMXCPS3000 Modicon X80 Power Supply
Product Introduction
The BMXCPS3000 serves as a dedicated power supply module inside the Modicon X80 platform. This unit accepts 24 V DC input and feeds the rack backplane. System builders use it to power I/O modules, processor modules, and communication cards. Because it fits both M340 and M580 racks, it supports consistent power planning across mixed control systems.
Electrical Specifications
First, the BMXCPS3000 accepts a 24 V DC input from the field supply. It delivers 32 W of output power to the backplane. Furthermore, the output voltage is regulated at 5 V DC with a current of 4.5 A.
Besides, built-in protection guards the rack against overload, overvoltage, and short-circuit events. Therefore, a single fault on one module will not damage the whole backplane. However, engineers should still verify total load current before adding new modules.
Mechanical and Environmental Data
Dimensions measure 100 × 28 × 93 mm (H×W×D). The unit weighs 0.55 kg, which reflects its internal conversion circuitry. Additionally, it mounts directly in X-bus racks without extra adapters.
Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity tolerance stays between 5% and 95%, non-condensing. The protection rating is IP20, so the module requires mounting inside a clean control cabinet.
Installation Guide
Next, follow these steps to install the BMXCPS3000 correctly.
Switch off field power and verify zero voltage.
Select a suitable slot in the X-bus rack.
Align the module and slide it into the backplane connector.
Tighten the retaining screw to secure the unit.
Wire the 24 V DC input to the front terminals.
Confirm correct polarity before restoring power.
Check the module status LED after energizing.
Moreover, calculate the total backplane load before commissioning. Therefore, the supply stays within its 4.5 A rating. Finally, keep input cables short to reduce voltage drop.
Packaging List
Shipping methods: Fedex, UPS, DHL.
FAQ
Q1: What input voltage does the BMXCPS3000 accept?
A: It accepts a 24 V DC input from the field supply.
Q2: What output does this module provide?
A: It delivers 5 V DC at 4.5 A to the backplane, rated 32 W.
Q3: What protection features are included?
A: Overload, overvoltage, and short-circuit protection are built in.
Q4: Does it work with M340 and M580 racks?
A: Yes, the Modicon X80 platform supports both controller families.
Q5: What is the weight of this power supply?
A: The module weighs 0.55 kg.
